Hot selling guaranteed quality popular product blow cosmetic container jars bottle molding blowing machine

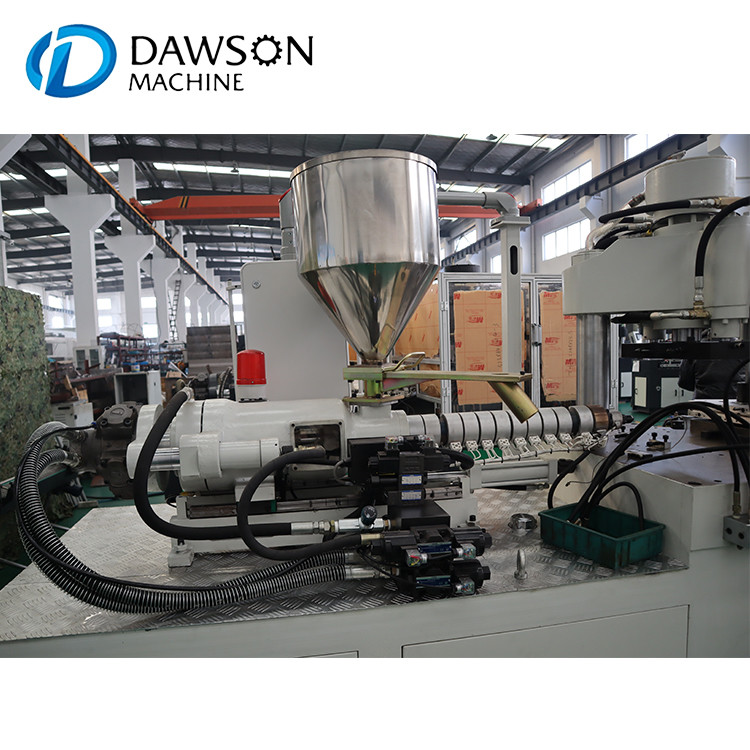

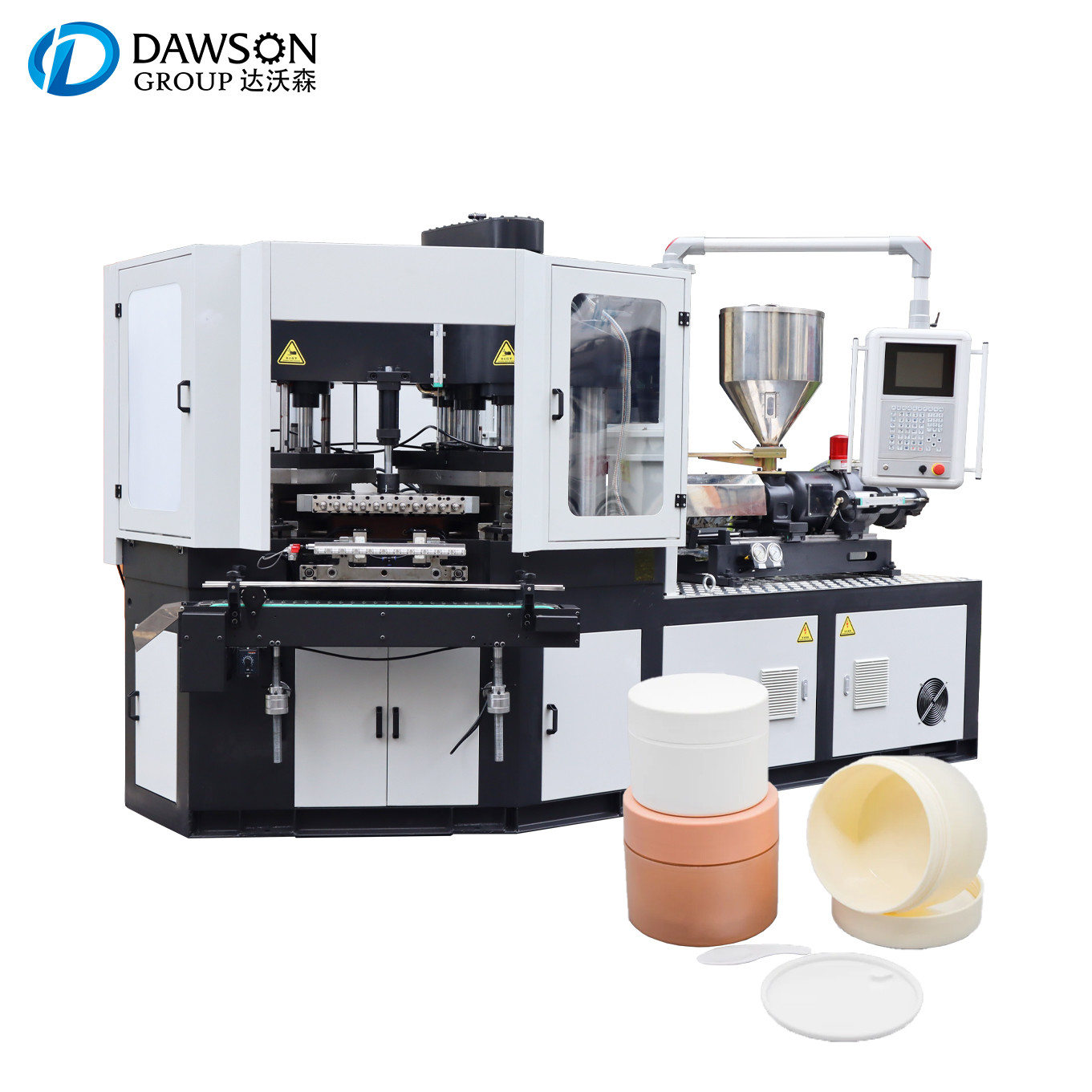

This machine has three stations, injection preform, blowing and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow station with themselves heat, without any reheating for blowing,then the product will rotate to release station and drop down, It's fully automatically cycle rotation working mode,no need bottle preform, no waste, high degree of automation, finished products smooth and beautiful.

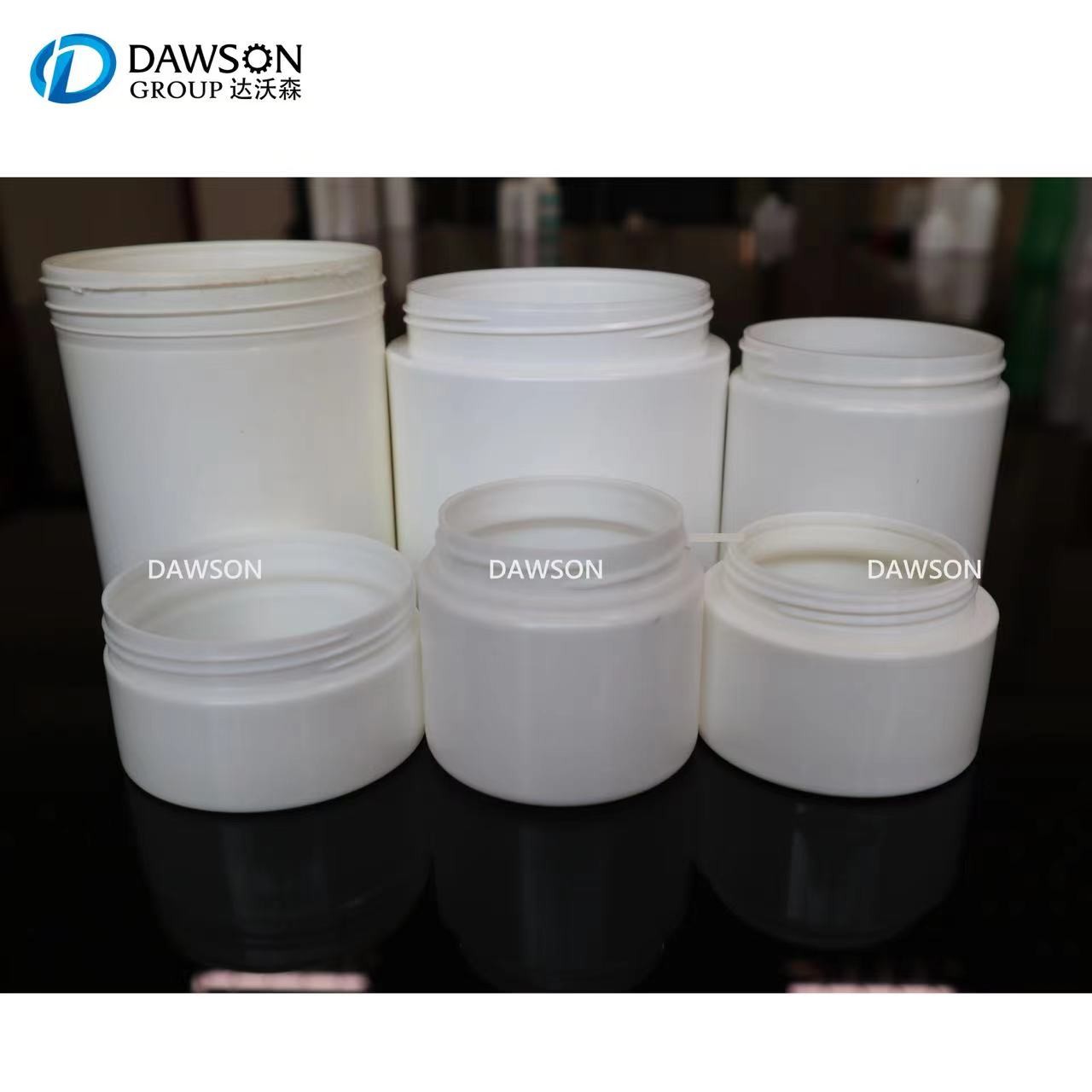

Commonly used in 10-1000 ml plastic cosmetic bottle, milk bottle, pharmaceutical packaging, PC bottle, red wine cup and LED lampshade, etc
DAWSON MACHINERY & MOULD GROUP
Technical Parameters
|
|
|
|
|
|
Item
|
|
Unit
|
|
|
Injection system
|
Screw Diameter
|
mm
|
40
|
45
|
50
|
|
Max. Theoretical injection capacity
|
G
|
176
|
260
|
314
|
|
Heating capacity
|
KW
|
7.2
|
10
|
10
|
|
No. of heating area
|
Qty
|
3
|
3
|
3
|
|
Clamping & blowing system
|
Clamping force of injection
|
kn
|
350
|
450
|
650
|
|
Clamping force of blowing
|
kn
|
40
|
78
|
89
|
|
Opening stroke of mold platen
|
mm
|
120
|
120
|
140
|
|
Max. Platen size (L×W)
|
mm
|
420×340
|
560×390
|
740×390
|
|
Min. Mold thickness (H)
|
mm
|
180
|
240
|
280
|
|
Heating capacity of mould
|
KW
|
2.8
|
4.0
|
5.0
|
|
Product dimension range
|
Suitable bottle range
|
ml
|
3-800
|
3-800
|
5-800
|
|
Max. bottle height
|
mm
|
≤180
|
≤200
|
≤200
|
|
Max. Dia. of bottle
|
mm
|
≤80
|
≤80
|
≤80
|
|
Dry cycle
|
s
|
4
|
|
|
|
Hydraulic driving system
|
Motor power
|
KW
|
11/15
|
18.7/22
|
17
|
|
hydraulic pressure
|
Mpa
|
14
|
14
|
14
|
|
Pneumatic system
|
Min. Air pressure
|
Mpa
|
≥0.8
|
1.0
|
1.0
|
|
Discharge rate of compressed air
|
M3/mm
|
≥0.7
|
≥0.8
|
≥0.8
|
|
Cooling system
|
Water flowage
|
M3/h
|
3
|
3
|
4
|
|
|
Total rated power with mold heating
|
KW
|
21/25
|
34/38
|
45
|
|
Machine information
|
Dimension
|
M
|
3.1×1.2×2.2
|
3.5×1.4×2.3
|
4×1.28×2.35
|
|
machine weight
|
Ton
|
4.0
|
6.0
|
7.5
|
Machine Advantages
our bottle materials have changed from single glass or ceramics to various kinds of plastics. Drawing lessons from the long history of glass container blowing process, the extrusion or injection molding plastic mold in relativistic state is placed in the blowing mold, and the mold is inflated by a certain pressure of compressed air to make it close to the cavity wall. After cooling and setting, the mold is demolished to obtain the plastic hollow products with the same shape as the cavity. This is the hollow blow molding process we are familiar with.
our own engineers team, we have more then 18 years experience in this field.
1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.
2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.

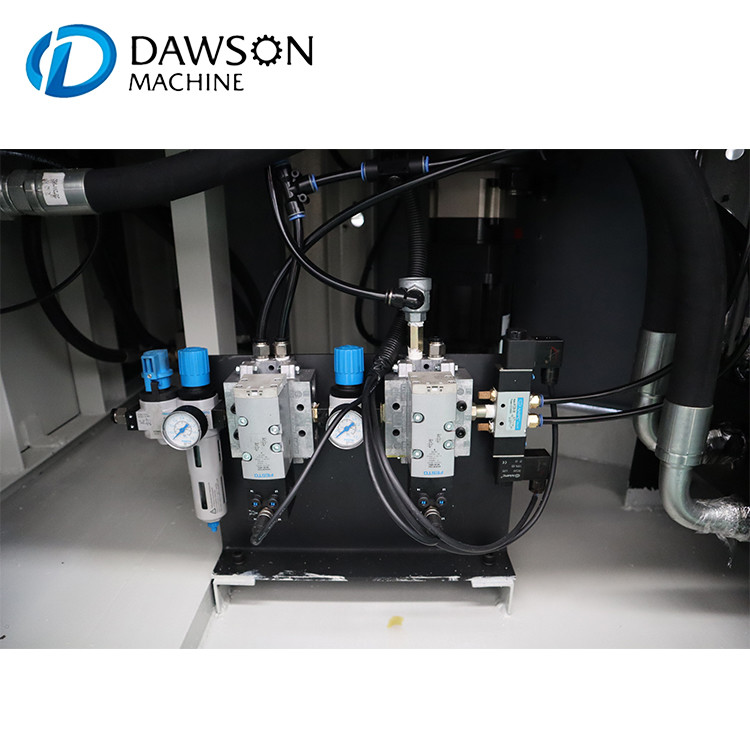

Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.
Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.
