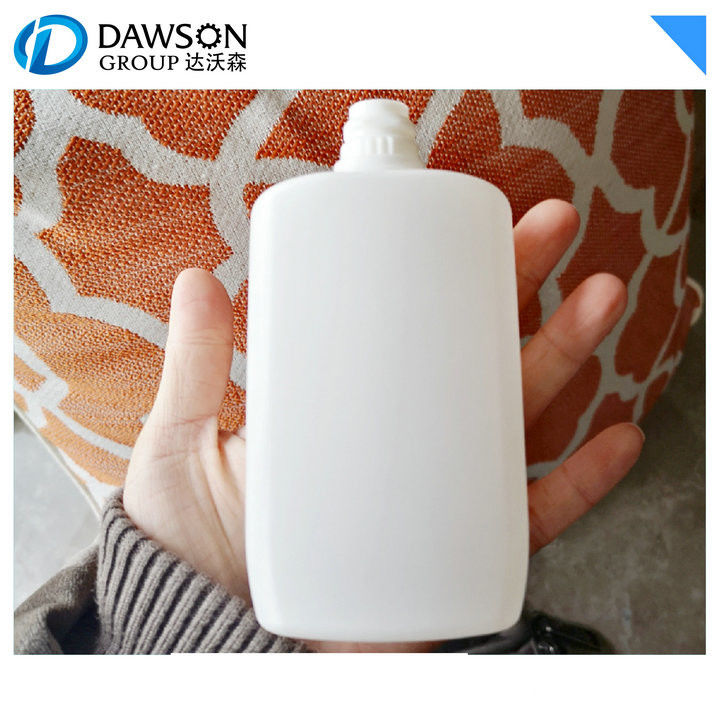

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China

1 set
MOQ
US $25,000-32,000/ Set
Price
100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: IBM35D
More Application: Milk & Yogurt Bottle
Pneumatic Valve Connector: Festo Ex Germany.
Controlling System: Act Technologies
Molded Case Circuit Breaker, Contactor,: Scheider Brand Ex France.
Machine Weight: 4 Ton
Max. Theoretical Injection Capacity: 176g
Clamping Force Of Blowing: 40 Kn
Trademark: DAWSON
Specification: IBM35D
HS Code: 8477301000
Application: Eye Dropper, Medicine Bottle, Chemical Bottle
Oil Pump And Hydraulic Valve: Yuken Brand Ex Japan.
Oil Seal: Valqua Brand Ex Japan.
Electronic Rulers: Italy Gefran
Motor Power: 11/15 Kw
Screw Diameter: 40mm
Clamping Force Of Injection: 350 Kn
Opening Stroke Of Mold Platen: 120mm
Transport Package: Film Packing
Origin: Jiangsu Zhangjiagang
High Light:

100ml IBM Injection Blow Molding Machine

,

40kn IBM Injection Blow Molding Machine

,

15Kw pet molding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

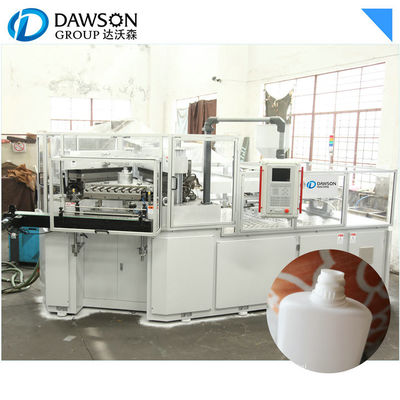

Injection Blow Molding Machine IBM35D

INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS

Item   Unit Date
Injection system Screw Diameter mm 40
Max. Theoretical injection capacity G 176
Heating capacity KW 7.2
No. of heating area Qty 3
Clamping & blowing system Clamping force of injection kn 350
Clamping force of blowing kn 40
Opening stroke of mold platen mm 120
Max. Platen size (L×W) mm 420×340
Min. Mold thickness (H) mm 180
Heating capacity of mould KW 2.8
Product dimension range Suitable bottle range ml 3-800
Max. bottle height mm ≤180
Max. Dia. of bottle mm ≤80
Dry cycle s 4
Hydraulic driving system Motor power KW 11/15
hydraulic pressure Mpa 14
Pneumatic system Min. Air pressure Mpa ≥0.8
Discharge rate of compressed air M3/mm ≥0.7
Cooling system Water flowage M3/h 3
  Total rated power with mold heating KW 21/25
Machine information Dimension M 3.1×1.2×2.2
machine weight Ton 4.0
Feature

* Excellent plasticizing unit



* Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



* Servo rotary, precise, long using time, easy maintenance, save energy.



* Optional injection with all-electric way, replacing hydraulic way * CE certificate


Configuration of Injection Blow Molding Machine

* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

* Pneumatic valve connector: FESTO Ex Germany.

* Oil seal: VALQUA brand Ex JAPAN.

* Controlling system: Act Technologies

* Electronic Rulers: Italy GEFRAN

* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 0100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 1100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 2

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 3

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 4

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 5

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 6

100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 7100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 8100ml Plastic Small Bottle Container Customizable Injection Blow Molding Machine Made in China 9
