Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle

Brand Name:	DAWSON
Model Number:	IBM35D
MOQ:	1 set
Price:	USD $28,900.00 - $66,800.00 per set
Delivery Time:	55-65 working days
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Samples Provided:

Provide Bottle Sample After Mold Test For Confirmation

Manpower Required:

We Provide Complete Production Line, Such As Capping And Filling

Warranty:

12 Months

Plastic Processed:

PP,PE,PC,PS，COC

Condition:

New

Automatic:

Full Automatic

Packaging Details:

Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o

Supply Ability:

5 set per month

Highlight:

CE Plastic Injection Blow Molding Machine

Detergent Bottle Injection Blow Molding Machine

Product Description

Automatic High Speed Plastic Injection Blow Molding Machine for Detergent Shampoo

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

DAWSON MACHINERY & MOULD GROUP

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 0

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 1

Technical Parameters

Model			IBM35D	IBM45D	IBM65D
Item		Unit	Date
Injection system	Screw Diameter	mm	40	45	50
	Max. Theoretical injection capacity	G	176	260	314
	Heating capacity	KW	7.2	10	10
	No. of heating area	Qty	3	3	3
Clamping & blowing system	Clamping force of injection	kn	350	450	650
	Clamping force of blowing	kn	40	78	89
	Opening stroke of mold platen	mm	120	120	140
	Max. Platen size (L×W)	mm	420×340	560×390	740×390
	Min. Mold thickness (H)	mm	180	240	280
	Heating capacity of mould	KW	2.8	4.0	5.0
Product dimension range	Suitable bottle range	ml	3-800	3-800	5-800
	Max. bottle height	mm	≤180	≤200	≤200
	Max. Dia. of bottle	mm	≤80	≤80	≤80
	Dry cycle	s	4
Hydraulic driving system	Motor power	KW	11/15	18.7/22	17
Hydraulic driving system	hydraulic pressure	Mpa	14	14	14
Pneumatic system	Min. Air pressure	Mpa	≥0.8	1.0	1.0
Pneumatic system	Discharge rate of compressed air	M3/mm	≥0.7	≥0.8	≥0.8
Cooling system	Water flowage	M3/h	3	3	4
	Total rated power with mold heating	KW	21/25	34/38	45
Machine information	Dimension	M	3.1×1.2×2.2	3.5×1.4×2.3	4×1.28×2.35
Machine information	machine weight	Ton	4.0	6.0	7.5

Machine Advantages

our bottle materials have changed from single glass or ceramics to various kinds of plastics. Drawing lessons from the long history of glass container blowing process, the extrusion or injection molding plastic mold in relativistic state is placed in the blowing mold, and the mold is inflated by a certain pressure of compressed air to make it close to the cavity wall. After cooling and setting, the mold is demolished to obtain the plastic hollow products with the same shape as the cavity. This is the hollow blow molding process we are familiar with.

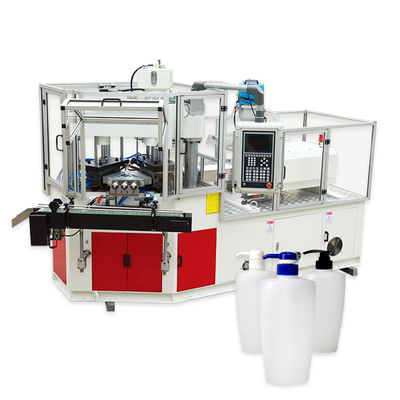

Dawson injection blow molding machine is equipped with professional injection system and precision control system, which can meet the requirements of high-speed opening and closing mold, high clamping force and uniform distribution of clamping force at each position of the mold. The three position rotary lifting system can rotate 120 ° to make the three positions of injection molding, blow molding and demoulding run continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the positioning of the machine is more accurate, the maintenance cost is lower, and it is more rapid and stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The whole process avoids manual contact, so that the products produced by the machine can meet the stringent requirements in the field of medicine and health.

our own engineers team, we have more then 18 years experience in this field.


1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.

2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the

others.

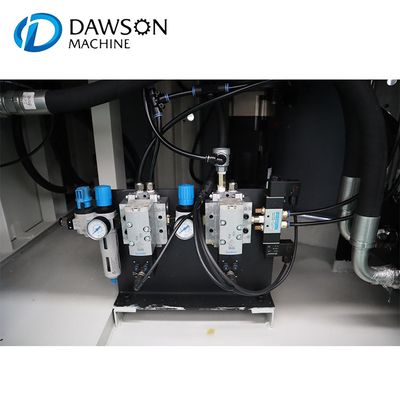

Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 6

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 7

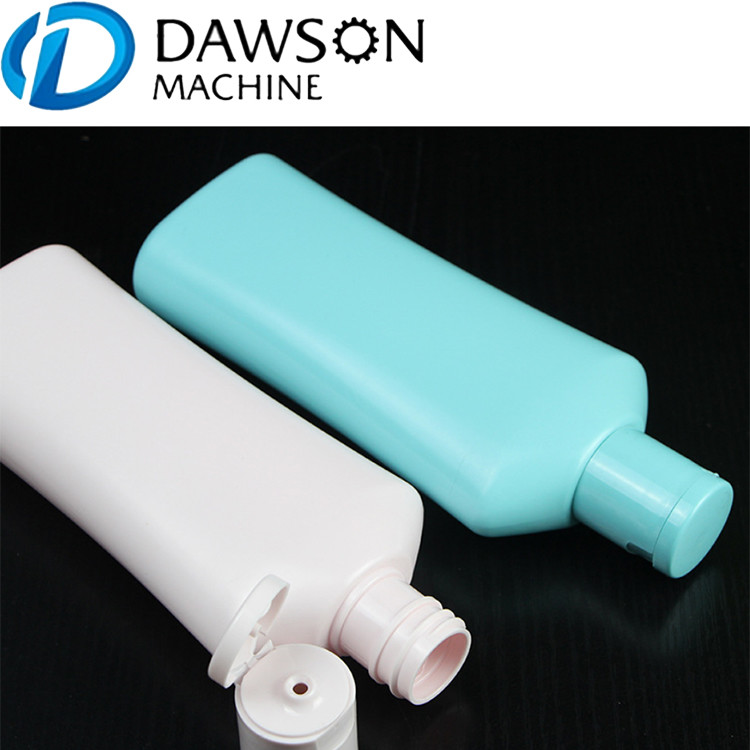

Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 8

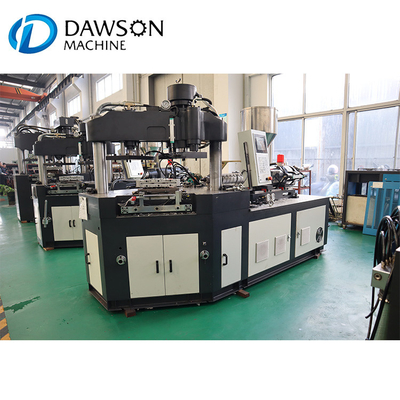

Professional Workshop

Our Professional Injection Blow Molding Machine Workshop...

Company Profile

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,

blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,

customers from more than 45 countries, we provide complete solution for your plastic industry

business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 26

Automatic Plastic Injection Blow Molding Machine for Detergent Shampoo Bottle 27

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
