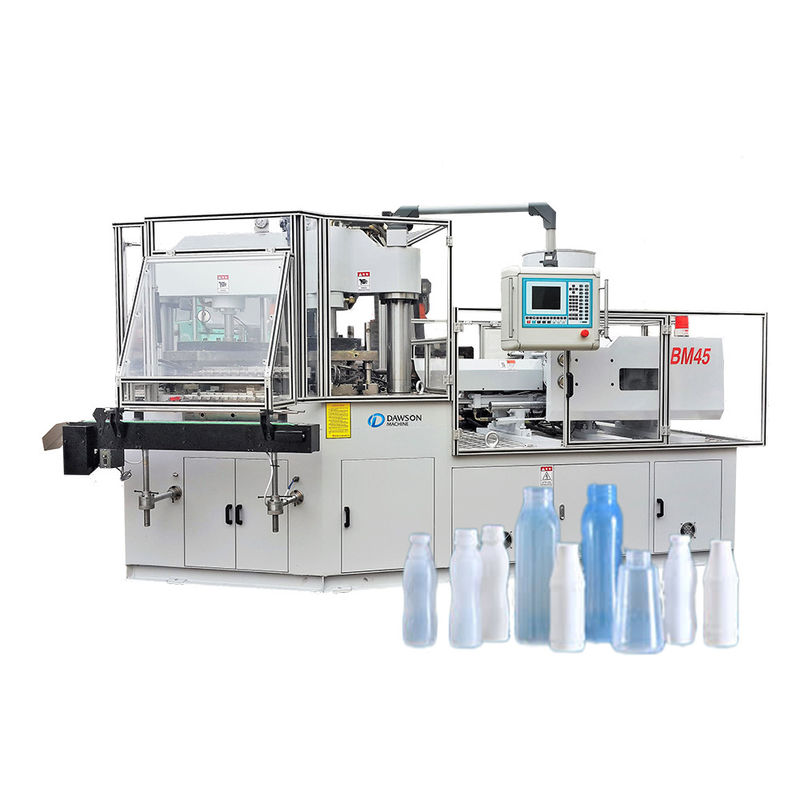

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle

1 piece
MOQ
USD 20000-80000 /piece
Price
HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Eye Dropper, Medicine Bottle, Chemical Bottle
More Application: Milk & Yogurt Bottle
Station: Three In One
Max. Product Volume: 1L
Sutiable Material: HDPE, PP, PVC, PS, PETG, LDPE
Mould Material: S136, P20, 4Cr13
Clamping Force Of Injection: 650kn
Heating Capacity: 10kw
Clamping Force Of Blowing: 89kn
Water Flowage: 4m3/H
Warranty: 1 Year
Blow Moulding Type: Injection Blow Moulding
Automatic: Yes,Semi-automatic
Highlight:

300ml Cosmetics Bottle Injection Molding Machine

,

Plastic Bottle Multi Cavity Injection Molding Machine

,

HDPE Cosmetics Bottle Injection Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: Dawson
Certification: CE
Model Number: IBM65D
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 20 pieces per month
Product Description

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 0

DAWSON MACHINERY & MOULD GROUP

Injection Blow Molding Machine IBM35D

Injection blow molding is a kind of blow molding method which combines injection molding with blow molding. Firstly, the mold with bottom is produced by injection molding, and then the mold is transferred to the blow mold for blow molding. Injection blow molding is the first step to produce the mold embryo. The injection agent injects the melt into the injection mold with the blowing core tube to form the mold embryo with the bottom, and then transfers it to the blowing mold of the blowing station through the mechanical device for blowing; After that, the mold is inflated, the blow mold is closed, and the compressed air is introduced into the mold through the mandrel air hole. The mold is tightly fitted with the blow molding cavity under the action of air pressure, and then transferred to the demoulding station after cooling; Finally, the product is demoulded. At the demoulding station, the product is ejected from the mandrel or directly sent to the packaging position, and then the next cycle of production is carried out.

The injection and blowing process has high automation depth and production efficiency; The quality of molded products is better than that of extrusion blow molding; The product has no splicing, high strength at the bottom, uniform wall thickness and high precision of mouth size; There is no corner scrap or flash, and the seam line of the product can hardly be seen;

It is suitable for processing large quantities of 5ml to 1L small plastic refined containers and wide mouth containers, such as cosmetics, daily necessities, medicine and food packaging bottles.

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 1



INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS



Model
IBM35D
IBM45D
IBM65D
Item

Unit
Date
Injection system
Screw Diameter
mm
40
45
50
Max. Theoretical injection capacity
G
176
260
314
Heating capacity
KW
7.2
10
10
No. of heating area
Qty
3
3
3
Clamping & blowing system
Clamping force of injection
kn
350
450
650
Clamping force of blowing
kn
40
78
89
Opening stroke of mold platen
mm
120
120
140
Max. Platen size (L×W)
mm
420×340
560×390
740×390
Min. Mold thickness (H)
mm
180
240
280
Heating capacity of mould
KW
2.8
4.0
5.0
Product dimension range
Suitable bottle range
ml
3-800
3-800
5-800
Max. bottle height
mm
≤180
≤200
≤200
Max. Dia. of bottle
mm
≤80
≤80
≤80
Dry cycle
s
4


Hydraulic driving system
Motor power
KW
11/15
18.7/22
17
hydraulic pressure
Mpa
14
14
14
Pneumatic system
Min. Air pressure
Mpa
≥0.8
1.0
1.0
Discharge rate of compressed air
M3/mm
≥0.7
≥0.8
≥0.8
Cooling system
Water flowage
M3/h
3
3
4

Total rated power with mold heating
KW
21/25
34/38
45
Machine information
Dimension
M
3.1×1.2×2.2
3.5×1.4×2.3
4×1.28×2.35
machine weight
Ton
4.0
6.0
7.5





HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 2HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 3

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 4HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 5





Bottle is a container that can hold liquid or solid, which can be seen everywhere in our life, including medicine bottle, cosmetics bottle and beverage bottle. Due to the rapid development of the petroleum industry, human beings invented high molecular polymer, which is commonly known as plastics. Since then, our bottle materials have changed from single glass or ceramics to various kinds of plastics. Drawing lessons from the long history of glass container blowing process, the extrusion or injection molding plastic mold in relativistic state is placed in the blowing mold, and the mold is inflated by a certain pressure of compressed air to make it close to the cavity wall. After cooling and setting, the mold is demolished to obtain the plastic hollow products with the same shape as the cavity. This is the hollow blow molding process we are familiar with.


Common blow molding processes include extrusion blow molding, injection blow molding and stretch blow molding. Extrusion blow molding, extruding molten material by extrusion device, placing extrusion embryo in blow molding mold for blowing, demolding and taking out products after cooling and setting; In injection blow molding, the bottom mold is first injected, then transferred to the blow mold to blow, cooled and shaped, and then demoulded to take out the product; Stretch blow molding is to produce the mold embryo by extrusion or injection, put it in the blow mold, stretch it axially with the drawing rod, blow it horizontally, then cool it to shape, and finally demould the product.


In the production of the same product, injection blowing and extrusion blowing have inherent advantages, such as no flash, no waste, accurate size, high production efficiency of three-step method, three working positions working at the same time, no need to wait in neutral position; With the conveyor belt, the testing equipment can directly enter the packaging station, with a high degree of automation. Therefore, a conclusion can be drawn: in the range of packaging bottles, the injection blowing process can improve the production efficiency and reduce the production cost.


Dawson injection blow molding machine is equipped with professional injection system and precision control system, which can meet the requirements of high-speed opening and closing mold, high clamping force and uniform distribution of clamping force at each position of the mold. The three position rotary lifting system can rotate 120 ° to make the three positions of injection molding, blow molding and demoulding run continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the positioning of the machine is more accurate, the maintenance cost is lower, and it is more rapid and stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The whole process avoids manual contact, so that the products produced by the machine can meet the stringent requirements in the field of medicine and healthy.



HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 6

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 7

Our Professional Injection Blow Molding Machine Workshop...
HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 8



DAWSON MACHINERY & MOULD GROUP



Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in


Saudi Arabia, Colombia, Panama, South Africa ...


DAWSON MACHINE & MOULD GROUP


located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 9HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 10
HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 11HDPE 300ml Multi Cavity Injection Molding Machine for Plastic Cosmetics Bottle 12

we committed to providing customers with plastic machinery & equipment production lines beyond expectations.


Customer satisfaction is our eternal pursuit...

FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
