IBM65D S136 Water Bottle IBM Injection Blow Molding Machine
Item | Unit | Data | |
Injection system | Screw Diameter | mm | 50 |
Max. Theoretical injection capacity | G | 314 | |
Heating capacity | KW | 10 | |
No. of heating area | Qty | 3 | |
Clamping & blowing system | Clamping force of injection | kn | 650 |
Clamping force of blowing | kn | 89 | |
Opening stroke of mold platen | mm | 140 | |
Max. Platen size (L×W) | mm | 740×390 | |
Min. Mold thickness (H) | mm | 280 | |
Heating capacity of mould | KW | 5.0 | |

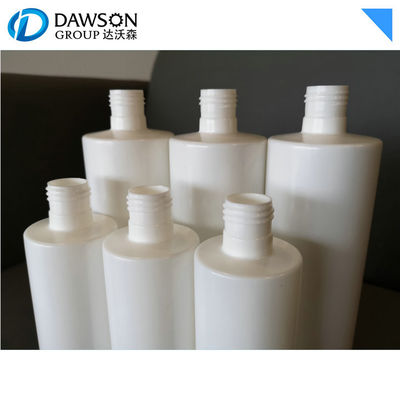

Product dimension range | Suitable bottle range | ml | 5-800 |
Max. bottle height | mm | ≤200 | |
Max. Dia. of bottle | mm | ≤80 | |
Hydraulic driving system | Motor power | KW | 17 |
hydraulic pressure | Mpa | 14 | |
Pneumatic system | Min. Air pressure | Mpa | 1.0 |
Discharge rate of compressed air | M3/mm | ≥0.8 | |
Cooling system | Water flowage | M3/h | 4 |
Total rated power with mold heating | KW | 45 | |
Machine information | Dimension | M | 4×1.28×2.35 |
machine weight | Ton | 7.5 |
* Excellent plasticizing unit
* Bridge clamping unit for synchronism mould open/close, cycle time less
* Servo system can save 35 to 40% energy compared to normal system
* Servo rotary, precise, long using time, easy maintenance, save energy.
* Optional injection with all-electric way, replacing hydraulic way * CE certificate
* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

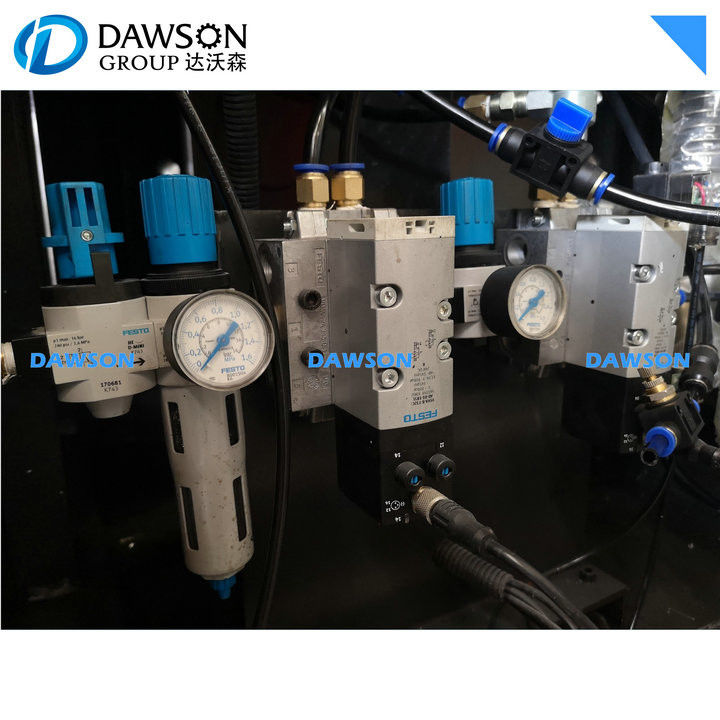

* Pneumatic valve connector: FESTO Ex Germany.
* Oil seal: VALQUA brand Ex JAPAN.
* Controlling system: Act Technologies
* Electronic Rulers: Italy GEFRAN
* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
