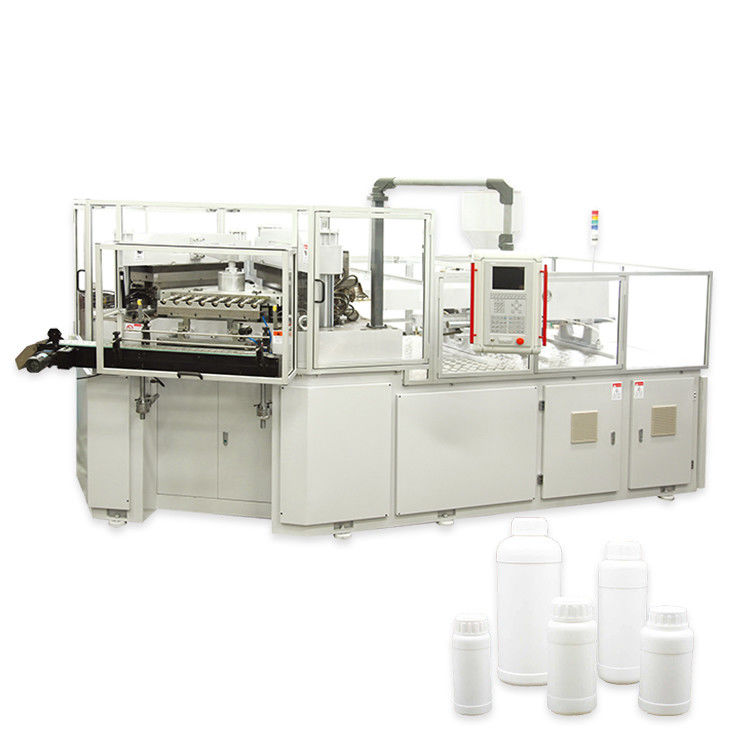

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle

1 set
MOQ
USD $28,900.00 - $66,800.00 per set
Price
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Video Technical Support
Application: Bottle, Medical, Cosmetic
Voltage: 380V,380V/50HZ,220/380V,220V/380V/415V/460V..
Material: Stainless Steel
Type: Full-auto,Injection Blow Molding
Condition: New
High Light:

1L Bottle Plastic Injection Blow Moulding Machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Delivery Time: 55-65 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 set per month
Product Description

 Fully automatic Chemical pestical bottle for plastic blow injection molding machine

It is suitable for processing large quantities of 5ml to 1L small plastic refined containers and wide mouth containers, such as cosmetics, daily necessities, medicine and food packaging bottles.

DAWSON MACHINERY & MOULD GROUP

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 0

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 1Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 2



Technical Parameters
Model
Item

Unit
Date
Injection system
Screw Diameter
mm
40
45
50
Max. Theoretical injection capacity
G
176
260
314
Heating capacity
KW
7.2
10
10
No. of heating area
Qty
3
3
3
Clamping & blowing system
Clamping force of injection
kn
350
450
650
Clamping force of blowing
kn
40
78
89
Opening stroke of mold platen
mm
120
120
140
Max. Platen size (L×W)
mm
420×340
560×390
740×390
Min. Mold thickness (H)
mm
180
240
280
Heating capacity of mould
KW
2.8
4.0
5.0
Product dimension range
Suitable bottle range
ml
3-800
3-800
5-800
Max. bottle height
mm
≤180
≤200
≤200
Max. Dia. of bottle
mm
≤80
≤80
≤80
Dry cycle
s
4


Hydraulic driving system
Motor power
KW
11/15
18.7/22
17
hydraulic pressure
Mpa
14
14
14
Pneumatic system
Min. Air pressure
Mpa
≥0.8
1.0
1.0
Discharge rate of compressed air
M3/mm
≥0.7
≥0.8
≥0.8
Cooling system
Water flowage
M3/h
3
3
4

Total rated power with mold heating
KW
21/25
34/38
45
Machine information
Dimension
M
3.1×1.2×2.2
3.5×1.4×2.3
4×1.28×2.35
machine weight
Ton
4.0
6.0
7.5



Machine Advantages



The injection and blowing process has high automation depth and production efficiency; The quality of molded products is better than that of extrusion blow molding; The product has no splicing, high strength at the bottom, uniform wall thickness and high precision of mouth size; There is no corner scrap or flash, and the seam line of the product can hardly be seen;
In the production of the same product, injection blowing and extrusion blowing have inherent advantages, such as no flash, no waste, accurate size, high production efficiency of three-step method, three working positions working at the same time, no need to wait in neutral position;






Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 3

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 4
our own engineers team, we have more then 18 years experience in this field.


1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.

2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.

Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 5
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 6 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 7



Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 8 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 9

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 10

Professional Workshop



Our Professional Injection Blow Molding Machine Workshop...
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 11
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 12
Company Profile
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 13
DAWSON MACHINE & MOULD GROUP
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!





Customer Photos



We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 14 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 15 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 16
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 17 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 18 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 19
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 20 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 21 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 22 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 23
Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 24 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 25 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 26 Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 27

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 28

Fully Automatic plastic injection blow moulding machine for 5ml to 1L Bottle 29

FAQ


Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
