Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine

1 set
USD $28,900.00 - $66,800.00 per set
Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine
Features Gallery Product Description Request A Quote
Dimension(L*W*H): 3.1*1.2*2.2
Clamping Force: 78kn
Power (kW): 25kw
Weight (KG): 4 Kg
High Light:

multi cavity ibm blow moulding machine


25kw ibm injection blow molding machine


ldpe ibm injection blow molding machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Delivery Time: 55-65 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 set per month
Product Description

Plastic LDPE eye dropper medicine bottle Injection Blow Molding Machine



Dawson injection blow molding machine is equipped with professional injection system and precision control system, which can meet the requirements of high-speed opening and closing mold, high clamping force and uniform distribution of clamping force at each position of the mold. The three position rotary lifting system can rotate 120 ° to make the three positions of injection molding, blow molding and demoulding run continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the positioning of the machine is more accurate, the maintenance cost is lower, and it is more rapid and stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The whole process avoids manual contact, so that the products produced by the machine can meet the stringent requirements in the field of medicine and health.


The product made by injection blow molding machine has no splicing, high strength at the bottom, uniform wall thickness and high precision of mouth size; There is no corner scrap or flash, and the seam line of the product can hardly be seen;

Injection blow molding machine suitable for making large quantities of 5ml to 1L small plastic bottles, such as cosmetics, daily necessities, medicine and food packaging bottles.



Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


our own engineers team, we have more then 18 years experience in this field.


1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.

2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the


Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.

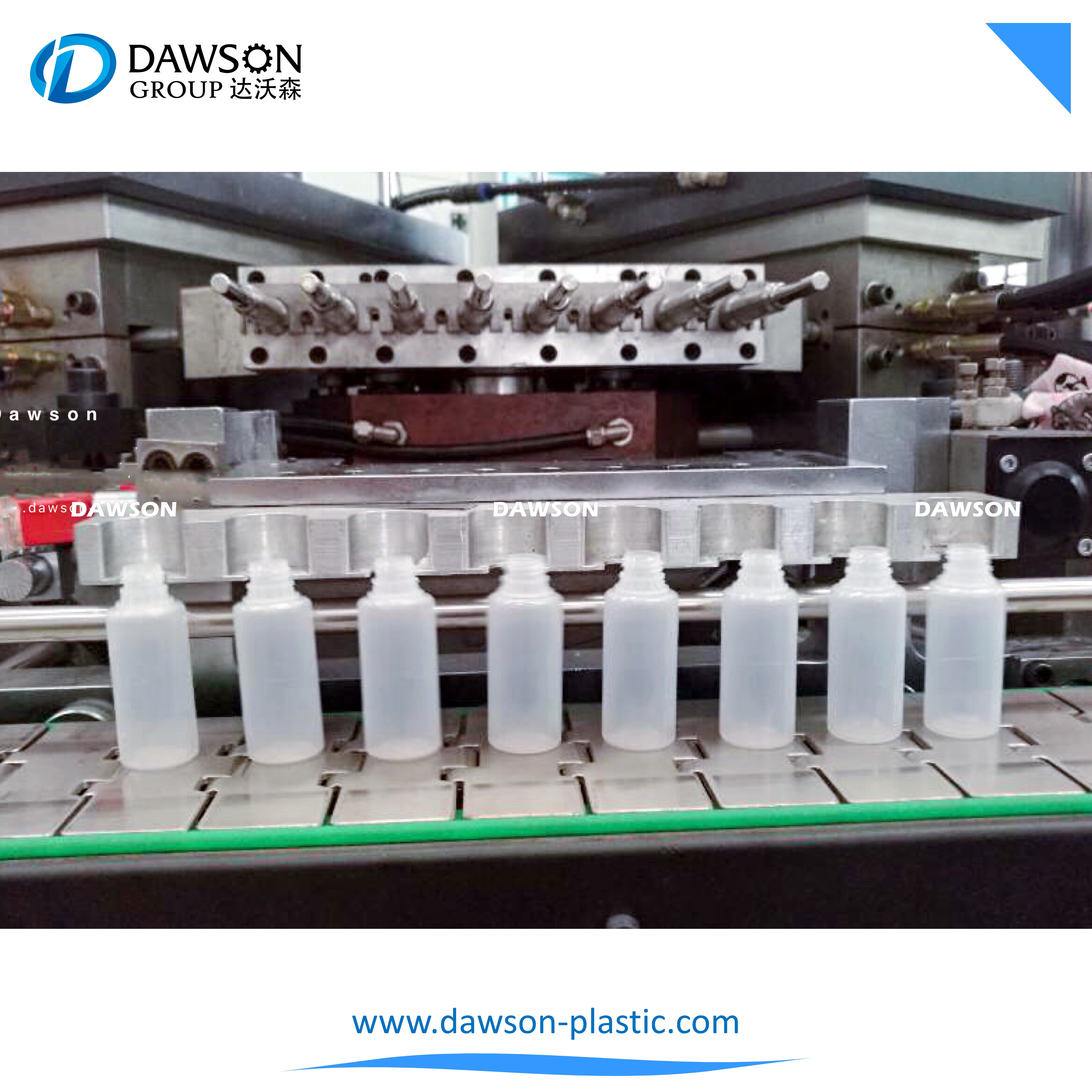

Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine 0

Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine 1



Item Unit Data
Injection system Screw Diameter mm 50
Max. Theoretical injection capacity G 314
Heating capacity KW 10
No. of heating area Qty 3
Clamping & blowing system Clamping force of injection kn 650
Clamping force of blowing kn 89
Opening stroke of mold platen mm 140
Max. Platen size (L×W) mm 740×390
Min. Mold thickness (H) mm 280
Heating capacity of mould KW 5.0
Product dimension range Suitable bottle range ml 5-800
Max. bottle height mm ≤200
Max. Dia. of bottle mm ≤80
Hydraulic driving system Motor power KW 17
hydraulic pressure Mpa 14
Pneumatic system Min. Air pressure Mpa 1.0
Discharge rate of compressed air M3/mm ≥0.8
Cooling system Water flowage M3/h 4
  Total rated power with mold heating KW 45
Machine information Dimension M 4×1.28×2.35
machine weight Ton





* Excellent plasticizing unit


* Bridge clamping unit for synchronism mould open/close, cycle time less


* Servo system can save 35 to 40% energy compared to normal system


* Servo rotary, precise, long using time, easy maintenance, save energy.


* Optional injection with all-electric way, replacing hydraulic way * CE certificate

Configuration of Injection Blow Molding Machine


* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

* Pneumatic valve connector: FESTO Ex Germany.

* Oil seal: VALQUA brand Ex JAPAN.

* Controlling system: Act Technologies

* Electronic Rulers: Italy GEFRAN

* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.


Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine 2

Plastic Ldpe Eye Dropper Bottle Multi Cavity Ibm Injection Blow Molding Machine 3
