Jerry Can Blow Molding Machine
Created with Pixso. Dawson View Strip Oil Jerrycan Extrusion Blow Molding Machine for Lubricant Bottle

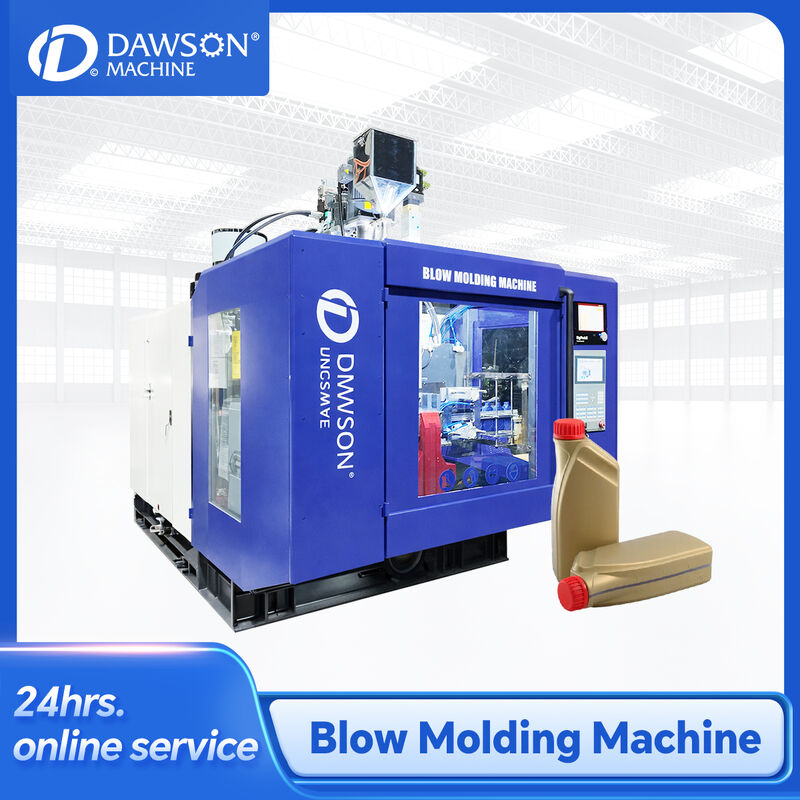

Dawson View Strip Oil Jerrycan Extrusion Blow Molding Machine for Lubricant Bottle

Brand Name: DAWSON
MOQ: 1
Price: $43,280-47,800
Detail Information
Place of Origin:
Jiangsu, China
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed:
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Voltage:
440V/415V/380V/220V
Dimension(l*w*h):
4.4*3.4*3.6
Clamping Force (kN):
270
Screw Diameter (mm):
90
Output (kg/h):
130
Automation:
Automatic
No. Of Screw Heating Zone:
4
Screw Heating Power(kw):
10
Extruder Motor Power(kw):
30
Mold Platen Size(width)(mm):
660
Mold Platen Size(height)(mm):
680
Air Pressure(mpa):
0.8
Air Comsumption(m³/min):
2.2
Die Head Heating Power(kw):
8
Power (kw):
67
Weight (t):
11.3
Key Selling Points:
Easy To Operate
Warranty:
1 Year
Blow Molding Type:
Extrusion Blow Molding Machine
Maximum Application Size:
30L
Hot Knife Power:
2KW
Main Oil Pump Motor:
7.5KW
Dry Cycle Time:
7S
Clamping Force:
70KN
Language Settings:
Chinese And English Operation Panel
Instructions Provided:
Instructions In Chinese And English
Labor Demand:
1~2 Operetor
Samples Provided:
If Required
Highlight:

Dawson View Strip oil jerrycan blow molding machine

,

Extrusion blow molding machine for lubricant bottle

,

Jerry can blow molding machine with warranty

Product Description
Dawson View Strip Oil Jerrycan Extrusion Blow Molding Machine for Lubricant Bottle

Product descriptions from the supplier:

  • 100 Points Parison Wall Thickness Control Extrusion Blow Molding Machine
  • Three-layer extrusion machine
  • Co-extrusion blow molding machine
  • Industrial plastic container machine
  • Packaging machinery for oil
  • Chemical container blow machine
Dawson blow molding machine view 1 Dawson blow molding machine view 2 Dawson blow molding machine view 3 Dawson blow molding machine view 4 Dawson blow molding machine view 5 Dawson blow molding machine view 6 Dawson blow molding machine view 7 Dawson blow molding machine view 8 Dawson blow molding machine view 9 Dawson blow molding machine view 10 Dawson blow molding machine view 11 Dawson blow molding machine view 12
About the Supplier

ZHANGJIAGANG DAWSON MACHINE CO., LTD.

Located in Zhangjiagang city, we have more than 18 years' experience in the field of plastic machinery, including injection molding machines, blow molding machines, PET blow molding machines, and injection blow molding machines. During the past 18 years, we have consistently focused our energy on advancing plastic machinery and plastic packaging machinery technology, learning advanced experience, confirming new theories and designs, and forming our own unique competitive advantages.

Our machines carry good quality and effective after-sales service. With customers from more than 45 countries, we provide complete solutions for your plastic industry business, as well as all sorts of technical support and after-sale services!

Company Overview
Zhangjiagang Dawson Machine company overview
Factory Profile
Zhangjiagang Dawson Machine factory profile
Competitive Advantages
Competitive advantage 1 Competitive advantage 2
Trade Show Participation
Trade show participation 1 Trade show participation 2
Production Workflow
Production workflow diagram
Packaging & Shipping Specifications
Packaging and shipping specifications
Customization Capabilities
Customization capabilities
