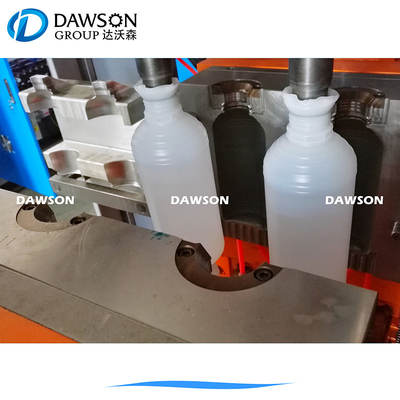

2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine

1 set
MOQ
US $37000-39800/ Set
Price
2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: ABLB75
Station: Single Station Or Double Station
Oil Pump Motor Power: 5.5kw
Head Heating Power: 5.7kw
Trademark: DAWSON
Made In: China
Highlight:

4L HDPE Extrusion Blow Molding Machine

,

Oil Bottle Extrusion Blow Molding Machine

,

Screw Extrusion BLow Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLB75
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 55-65working days
Payment Terms: L/C, T/T
Supply Ability: 5 sets / month
Product Description



2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion BLow Molding Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

2L 4L 5L HDPE Plastic Lubricant Oil Bottle Production Line Single Double Station 75mm Screw Extrusion BLow Molding Machine

Products Description



DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine ABLB75
u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 220~240 pcs/h (5L) / with single head
450~480 pcs/h (1L) / with double head

Machine Model
Max. Bottle size
Production forecast
ABLB75



Double Station Double Head



1L
450~480 BPH
Double Station Single Head
5L
280~320 BPH

Technical Parameters

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 5L (Single head)
Output capacity 220~240 pcs/h
Size 3.8×2.3×2.5(M)
Weight 4.8T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Material of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: Quenching
Brand: GuoTai
(The best Gearbox supplier in China)
Screw 75mm,L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling Fan
Cooling system available
Plasticization 100Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 4KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ) 30HP Brand: Siemens
Cooling Fan 3-4zone Automatic cooling


Extrusion system

Summarize High-grade alloy steel, center feeding
Avaible to change to double die head or thriple die heads
Die head number Single head for 5L / double head for 1L
Center distance of die heads 130mm or 160mm for Double die head
75mm or 80mm for Four die head
Die head Material of the die Head:38CrMoAlA+40Cr+45# Steel
Die head corn mirror degree
We provide complete set die for each sample free
Heating 3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checking
Plug type heater more easy and convinient for changing die heads
Heating power 3~5KW
Clamping system Automatic Lubricant system for clamping system
Clamping force 80KN
Template distance 150~560mm
Max mould size 400X450mm
Platen moving stroke 520mm
Lubrication Equiped with automatic lubrication system























Electric system
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) SIEMENS or MITSUBISHI PLC
System + TOUCH SCREEN
Operate interface Touch screen, automatic self-diagnose alarm system

Temperature control Automatic temperature control module SIEMENS OR MITSUBISHI MODULE
Electrical parts Schneider electricals & Omron relay
Electric protection Ampere overload, electric short circuit self-protection function
Parison controller JAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional : 10500 USD/ complete set if needed )

Invertor DELTA (TAIWAN) 380V50HZ
One for main screw + another for lever line screw

Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw
Oil pump Imported double pump
Valves JAPAN YUKEN Hydraulic valves
YUKEN Hydrulic valve
Precision control
More safe and easy to operate and maintenance
Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
O-sealings
High quality O-sealings
We provide spare parts for each sealings
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Separate water cooling cycle, oil cooler cooling system
High quality Oil cooler

Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8Mpa
Air displacement 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa







 High Quality Mould

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile



DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....




DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 1 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 2 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 3 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 4
2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 5 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 6 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 7 2L 4L HDPE Plastic Lubricant Oil Bottle Production Line Double Station 75mm Screw Extrusion BLow Molding Machine 8





FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
