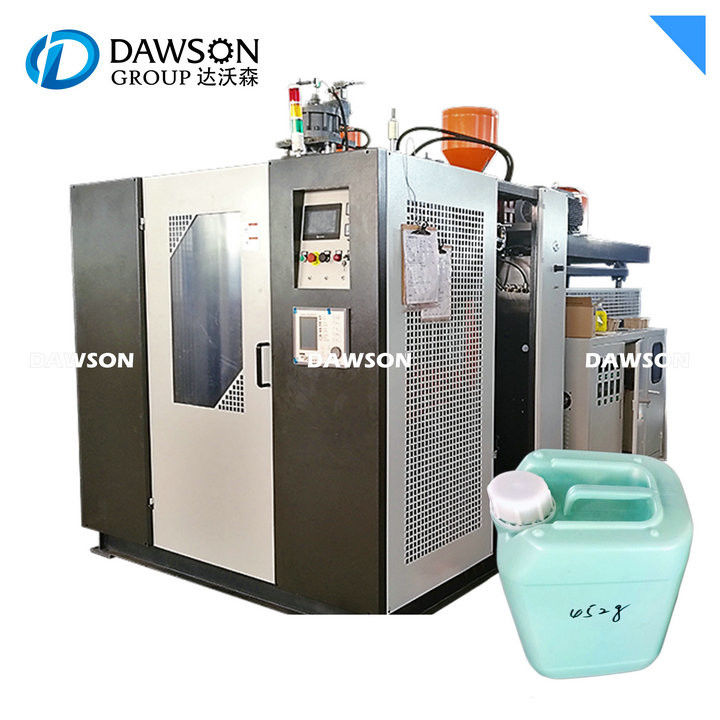

10L 270KN 8.3T HDPE Jerry Can Blow Molding Machine

1 Set
MOQ
US $20,000-50,000/ Set
Price
10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Product Volume: 12L
Summarize: High-Grade Alloy Steel, Center Feeding
Extruder Motor: 30kw Siemens Motor
Specification: DSB80-12L
HS Code: 8477301000
Application: Bottles, Jars, Jerry Cans, Gallons, Containers
Die Head: Single Head Or Double Head
Auto-Deflashing: With Auto-Deflashing
Mould: One Cavity Or Two Cavity
Sutiable: 10L 12L Bottle
Heating Zone: 4 Aluminum Heater
Max Die Mouth: ∮320mm
Clamping Force: 270 Kn
Transport Package: Film Packing
High Light:

10L Jerry Can Blow Molding Machine

,

270KN Jerry Can Blow Molding Machine

,

HDPE 8.3T preform bottle machine

Basic Infomation
Place of Origin: Jiangsu Zhangjiagang
Brand Name: Dawson
Certification: CE
Model Number: DSB80-12
Payment & Shipping Terms
Packaging Details: Packing in wooden cases
Delivery Time: 35-45 Work days
Payment Terms: L/C, T/T
Supply Ability: 10-20Set/month
Product Description

10L 270KN 8.3T HDPE Jerry Can Blow Molding Machine

Service Process


1. Communication
Good communication with our customers to know the target product detais, output demands, confirm the most suitable blow molding machine models and provide whole project quotations.
2. Mould design
After confirmed the product, our engineers will provide the professional 3D drawing as per your samples, and we can also help you design the bottles as per your own idea or based on our own samples.
3. Drawing confirmation
After finalizing the drawings, we will send to you for approval, only after your approval& signature we will officially start the mould& all project.
4. Machine and mould production
After customer confirm and sign the drawing, we will start the production proces, from sheet-metal process, CNC fine machining, machine assembly, painting, to electrical installing, machine& mould testing, product testing...
5. Testing
We provide sufficient raw materials for each customer's project, to make enugh testing in our factory for both machine and moulds. It will 100% guarantee that there is no any problem before delivery to customer's factory.
6. Product inspection
After mould tested, we will do inspections to dimensions, appearance, cap sealing, thickness, filling lever, drop testing, leakage testing, screw testing...so on, to ensure the finishing is 100% as per original sample.
7. Sending samples
After mould tested, we will send the samples to our customer for approval, also will attach a testing report of machine& mould, to make our customer know parameters like cycle time, production capacity, botttle weight, thickness...so on.
8. Packing delivery
Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
9. Customer acceptance
After customer received our machine, just arrange to prepare the air, water& electric connections. Then arrange 2~3technical people who had experiences in plastic machinery filed, especially blow molding machine or injection molding machine. They will be trained by our engineers later.
10. Installation and training


We will send the engineers to customer's factory, to test run the machine until it is running in normal state. Customer will bear the round-trip air tickets, accommodating, hotel and technology fee. We will also help customer training their operator how to operation and maintenance machines, make sure they can operate our machine independently.


Plastic Oil Bottle 10L HDPE Jerry Can Blow Moulding Machine





Automatic Extrusion Blow Molding Machine DSB80-12

10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 0

10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 1

10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 2






Automatic Extrusion Blow Molding Machine DSB80-12

Product: 10 L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:10 L: 90~110 pcs/h
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 12L (Single die head)

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 12L
Output capacity 90~110 PCS/H
Size 4.4×2.4×3.1(M)
Weight 8.3T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Extrusion system
Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 320mm
Extruder Motor 30kw SIEMENS MOTOR
Clamping system





Summarize High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660
Mould material S50C/Aluminium with beryllium copper







#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China

10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 3

10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 4
10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 5
10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 6
10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 7
10L 270KN  8.3T HDPE Jerry Can Blow Molding Machine 8
