138kw Screw Heating Power 5L 10L Jerry Can HDPE Blow Molding Double Station Extrusion Blowing Molding Machine Mould Opening Stroke 250600mm
Product Summary
HDPE jerry cans blow molding solutions 10~30LProfessional inspection of each mould testing Including: dimension tests, cap screw strength tests,appearance tests,handle feeling, thickness tests, leakage tests, filling drop tests,bottle neck sealing tests so on Basic parametersModelDSB80-30LDSB100II...
Product Custom Attributes
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Gear
Plastic Processed:
PP, HDPE , PVC, PE/PP
Place Of Origin:
Jiangsu, China
Brand Name:
DAWSON
Voltage:
220V,380V, 415V, 440V, Etc.
Dimension(l*w*h):
3.8*2.2*2.4
Clamping Force (kN):
110
Screw L/D Ratio:
24
Screw Diameter (mm):
70
Output (kg/h):
60
Automation:
Automatic
No. Of Screw Heating Zone:
3
Screw Heating Power(kw):
13.8
Extruder Motor Power(kw):
22
Mold Platen Size(width)(mm):
350
Mold Platen Size(height)(mm):
490
Air Pressure(mpa):
0.6
Air Comsumption(m³/min):
1.4
Die Head Heating Power(kw):
3
Power (kw):
49.4
Weight (t):
6
Key Selling Points:
Easy To Operate
Warranty:
1 Year
Station:
Double Station
Die Head Number:
1/2/3/4
Max. Product Volume:
500ML
Clamping System:
Toggle Type Clamping System
Suitable Material:
HDPE,PP
Hydraulic System:
Servo Hydraulic
Oil Pump Motor Power:
11kw
Clamping Force:
110kw
Mould Opening Stroke:
250-600mm
Mould Moving Stroke:
460mm
Highlight:
5L jerry can blow molding machine
,HDPE extrusion blowing molding machine
,double station jerry can molding machine
Trading Properties
Price:
$49,800/sets 1-1 sets
Product Description
HDPE jerry cans blow molding solutions 10~30L
Professional inspection of each mould testing Including: dimension tests, cap screw strength tests,appearance tests,handle feeling, thickness tests, leakage tests, filling drop tests,bottle neck sealing tests so on
Basic parameters | Model | DSB80-30L | DSB100II-30L | |
Suitable materia | PE.PP,PVC,PS,PETG,etc. | |||
Max volume | 30L | |||
Output capacity | Around 50 PCS/H | 80-100PCS/H | ||
Size | 3.6×2.8×2.8(M) | 4.8×4×2.8(M) | ||
Weight | 10T | 16T | ||
Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | ||
Reducer | Hard finishing、High intension、Low noise reducer | |||
Screw | ∮80mm, L/D ratio 28, 120kg/h (HDPE) 37kw | ∮100mm, L/D ratio 28, 200kg/h (HDPE) 55kw | ||
38CrMoALA Cooling system available | ||||
Heating Zone | 4 | 5 | ||
Aluminum Heater, Automatic heating | ||||
Heating power | 21KW/H | 25KW/H | ||

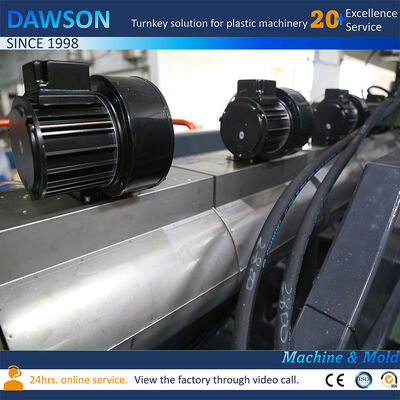

Cooling Fan | Separate cooling system for heaters Automatic cooling | |||
· Mould material P20# / S136H / Aluminium 7075# · Mould neck and middle parts are separable. · Separate cooling system for mould neck, mould body and bottom. · Min 3 million mould life. · Optional to make interchangable parts of 20L/25L/30L · Mould can be made manual deflashing or auto deflashing. · Independant cooling system for neck area · Optional to add inserts to make customer LOGOs or UN LOGOs · Other jerry cans designs optional for customer to choose · Jerry can cap mould can also be provided.
· Extrusion system: Adopt world-famous brand automatic temperature controlling device. · Drive the screw with electromagnetism motor reducer to realize step less regulating. · Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to - stabilize equipment well · Blowing device: with upper blowing set
Latest Taiwan WISETECH system Very easy to operate or change programme Chinese/English version 100 point parison control system
All electric components From famous world brand to ensure the quality and stablity
Besides machines, we also provide spare parts and experience sharing to our customers. Good service helps to prolong the machine's usage life and reduce the possibility of damages. lf you need help for installation and commissioning, we can dispatch an engineer to your factory. After the one year guarantee, the spare parts for value and remote help for free will cover your machine's whole life.
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
Q: Can we visit your factory? Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's DAWSON's advantage? DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time. DAWSON will be your reliable friend in China, and we will always do our best to give you max support! |
