200L Plastic Drum Extrusion Blow Molding Machine Double Ring Barrel Blow Molding Machine

Brand Name:	Dawson
MOQ:	1 set
Price:	USD 128000-142000

Detail Information

Product Description

Detail Information

Blow Molding Type:

Extrusion Blow Molding Machine

Maximum Application Size:

300L

Cooling Water Pressure:

0.3 MPA

Water Consumption:

180 L/Min

Mould Lifespan:

> 1,000,000 Cycles

Mold Material:

P20, 2316, S136H, Aluminum With Beryllium Copper

Language Settings:

Chinese And English Operation Panel

Instructions Provided:

Instructions In Chinese And English

Labor Demand:

1~2 Operetor

Samples Provided:

If Required

Highlight:

200L Plastic Drum Blow Molding Machine

Double Ring Barrel Blow Molding Machine

Plastic Drum Extrusion Blow Molding Machine

Product Description

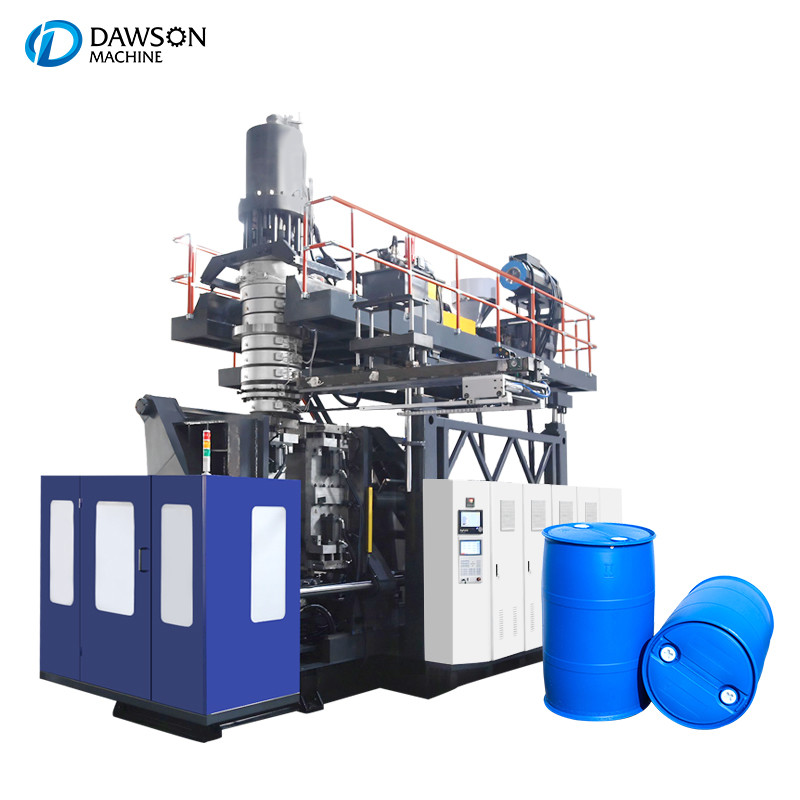

200L Plastic Drum Extrusion Blow Molding Machine Double Ring Barrel Blow Molding Machine 0

This machine is specialized in making 200~220L single or double ring drum & open-topdrum.This is single layer and equipped with servo motor.The main parts of this machineare designed and manufactured by ourself, We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.

200L Plastic Drum Extrusion Blow Molding Machine Double Ring Barrel Blow Molding Machine 2

Basic parameters	Suitable material	HMWHDPE
	Max volume	250L
	Output capacity	18~22 pcs/h
	Size	9.5x4.1x6.5(M)
	Weight	36T
	Total power	228KW
System	Specification	Parameters	Note
