90L Plastic Automatic Blow Molding Machine Drum Manufacturing Extrusion

1 piece
MOQ
USD 20000-50000 piece
Price
90L Plastic Automatic Blow Molding Machine Drum Manufacturing Extrusion
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Application: Bottle,container
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support
Weight: AS ORDER
Warranty: 1 Year
Plastic Processed: PE,PP
Automatic: Yes
Blow Moulding Type: Extrusion Blow Moulding
High Light:

Plastic Automatic Blow Molding Machine

,

90L Blow Molding Machine

,

Manufacturing Extrusion Blow Molding Machine

Basic Infomation
Place of Origin: CHINE
Brand Name: DAWSON
Certification: CE
Model Number: ABLD90
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description

DAWSON MACHINERY & MOULD GROUP



Plastic Drum Making Machine ABLD90



suitable for making 10~50L ice box and cooler shell, plastic cooler box, 30~60L plastic drum and jerry can, small & middle sized boards, barriers, floaters and indoor toys. The output for 20L water cooler is 50 Pcs/hour, for 50L cooler shell is 35 Pcs/hour, for round cooler lid is 25 Pcs/hour.This model ABLD90 popular due to its wide products application range, stable working performance, easy operation and maintenance.

Machine Model Max. Bottle size Production forecast

30L 40L 50L 60L 90L Plastic Drum Manufacturing Extrusion Blow Molding Machine

ABLD90

Single Station/

1 Head

50L 30~35 BPH
Name Units ABLD80 ABLD90
Max.product volume L 30 60
Screw diameter MM 80 90
Screw drive power KW 37 45
Screw heating capacity KW 16 18
Output of HDPE KG/H 120 150
Oil pump drive power KW 15 15
Clamping force KN 210 320
Max.size of mold MM 700×900 800×1200
Material storage L 4.4 6.6
Template size MM 750×800 900×900
Mold stroke MM 350-900 450-1100
Max.die diameter MM 280 340
Die heating power KW 15 18
Size of machine L×W×H 4.4×2.6×3.8 5.2×2.9×4.6
Weight of machine TON 11 13.5
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material

- Necking plate use JAPAN DC53 Heat treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

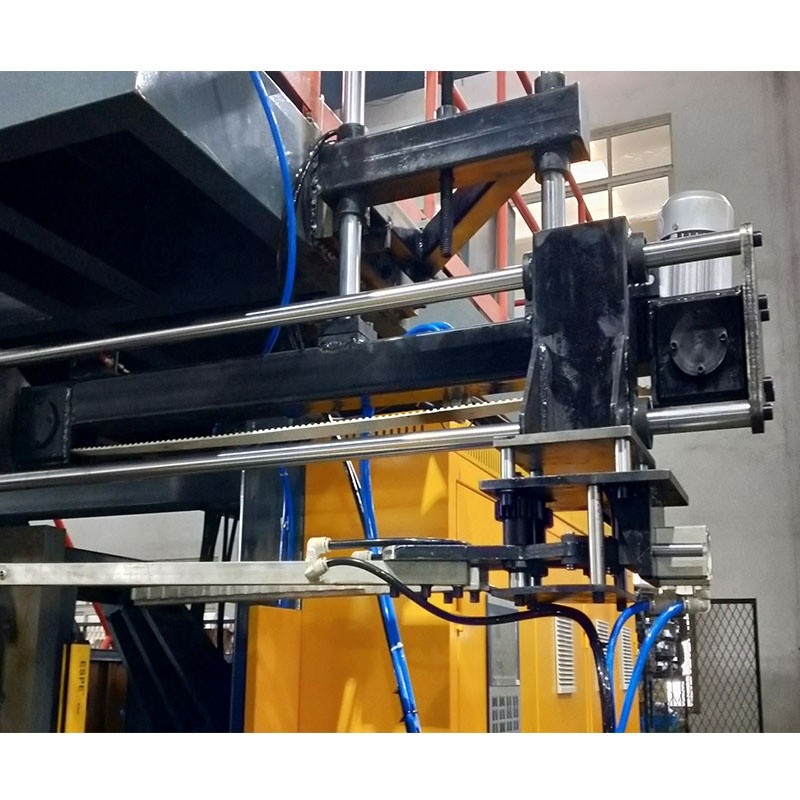

90L Plastic Automatic Blow Molding Machine Drum Manufacturing Extrusion 1
