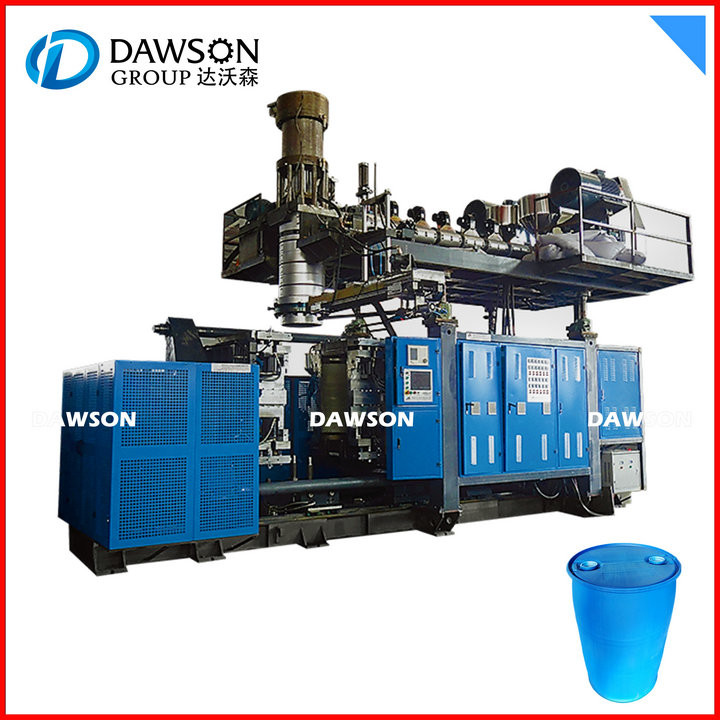

Extrusion Blow Moulding Machine with Ce Certification for Multiple Layer 200L Drums

1 set
MOQ
US $150,000-175,000 / set
Price
Extrusion Blow Moulding Machine with Ce Certification for Multiple Layer 200L Drums
Features Gallery Product Description Request A Quote
Features
Specifications
Station Number: Single
Company Attribute: Manufacturer
Suitable Product Volume: 100-250 L
Screw Diameter: 120mm
Screw Drive Power: 75 Kw
Clamping Force: 800 Kn
Mold Stroke: 600-1500mm
Trademark: Dawson
Specification: ABLD120
HS Code: 8477301000
Max. Product Volume: 300L
Guarantee Time: One Year
Screw L/D Ratio: 28 L/D
Output Of HDPE: 240 Kg/H
Max.Size Of Mold: 1000X1500mm
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Transport Package: Film Packing
Plastic Processed: PE,PET,PP,HDPE,PVC
High Light:

200Ltr HDPE blow moulding machine

,

HDPE blow moulding machine

,

ABLD120 extrusion blowing machine
Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD120
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description
Extrusion Blow Moulding Machine with Ce Certification for Multiple Layer 200L Drums


The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.



ABLD120 Accumulation Blow Molding Machine
was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.






Blow Molding Machine ABLD120



Max. Product volume
250liters

Output capacities
as per samples

Screw diameter
120mm

Screw L/D ratio
28 L/D

Screw drive power
75 KW

Screw heating capacity
30 KW

No.of heating zone
5 zones

Output of HDPE
240 KG/H

Oil pump drive power
45 KW

Clamping force
800 KN

Max.size of mold
1000X1500mm

Mold stroke
600-1500mm

Max.die diameter
520mm

Die heating power
12 KW

Die heating segments
5 zones

Blowing pressure
0.8mpa

Air volume
1.6 M³/MIN

Cooling water pressure
0.3mpa

Water consumption
180 L/MIN
