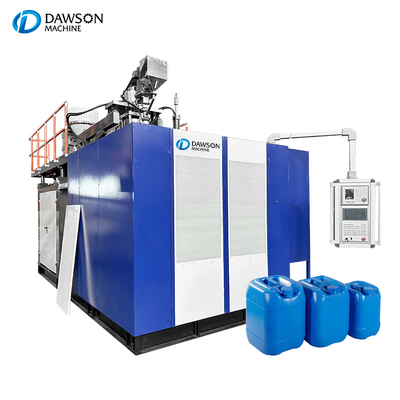

5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic

1
MOQ
USD 22800-26800
Price
5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 20L
Cooling Water Pressure: 0.6 MPA
Water Consumption: 100 L/Min
Mould Lifespan: > 1,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese, English And Other Language As Customer Need
Labor Demand: 1~2 Operetor
After-sales Service Provided: After-sales Service Provided
Marketing Type: Ordinary Product
Highlight:

12l automatic extrusion blow molding machine

,

15l automatic extrusion blow molding machine

,

15l pe extrusion blow machine
Basic Infomation
Brand Name: Dawson
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 0

5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 1

Basic Installation Including– DSB80-30T
Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device.Drive the screw with electromagnetism motor reducer to realize step less regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type

5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 2



Basic parameters Suitablematerial PE.PP,PVC,PS,PETG,soon
Maxvolume 20L
Outputcapacity 50~60PCS/H
Size 4.8×3.4×3.6(M)
Weight 11.3T
system Specification Parameters
Extrusion system Summarize High-gradealloysteel,centerfeeding
Dieheadnumber 1
Centerdistance ofdieheads /
Maxdiemouth 200
ExtruderMotor 30kwMOTOR

5L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 35L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 45L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 55L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 65L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 75L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 85L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 95L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 105L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 115L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 125L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 135L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 145L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 155L 10L 12L 15L PE PP HDPE Plastic Jerry Can Extrusion Blow Molding Machinery automatic 16
