10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line

1
MOQ
USD 22800-26800
Price
10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 20L
Cooling Water Pressure: 0.6 MPA
Water Consumption: 100 L/Min
Mould Lifespan: > 1,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese, English And Other Language As Customer Need
Labor Demand: 1~2 Operetor
After-sales Service Provided: After-sales Service Provided
Marketing Type: Ordinary Product
Highlight:

15L Jerry Can Blow Moulding Machine

,

10L Jerry Can Blow Moulding Machine

,

20L Jerry Can Blow Moulding Machine
Basic Infomation
Brand Name: Dawson
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

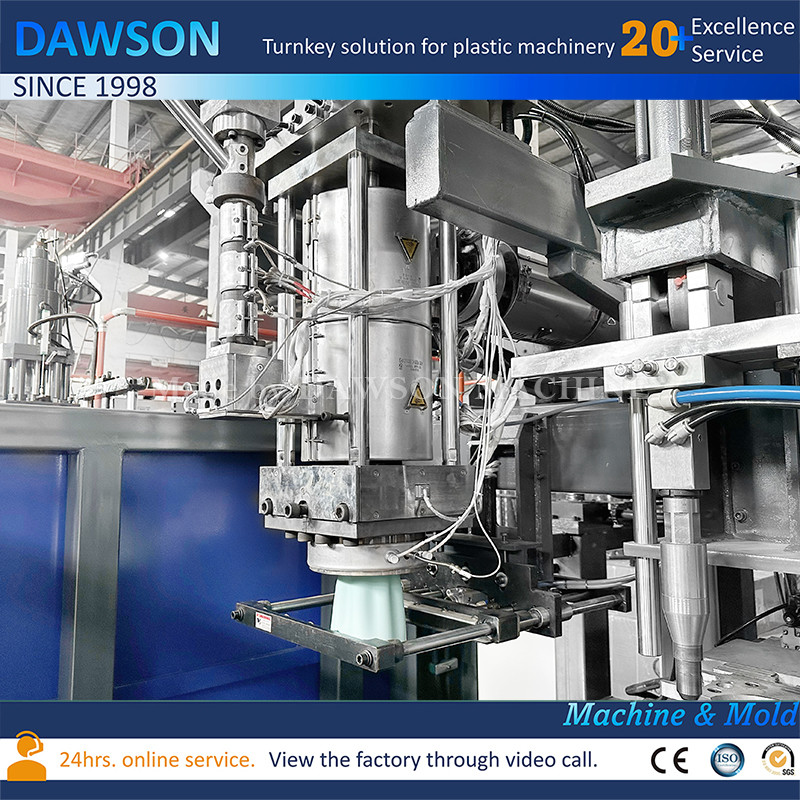

10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 0

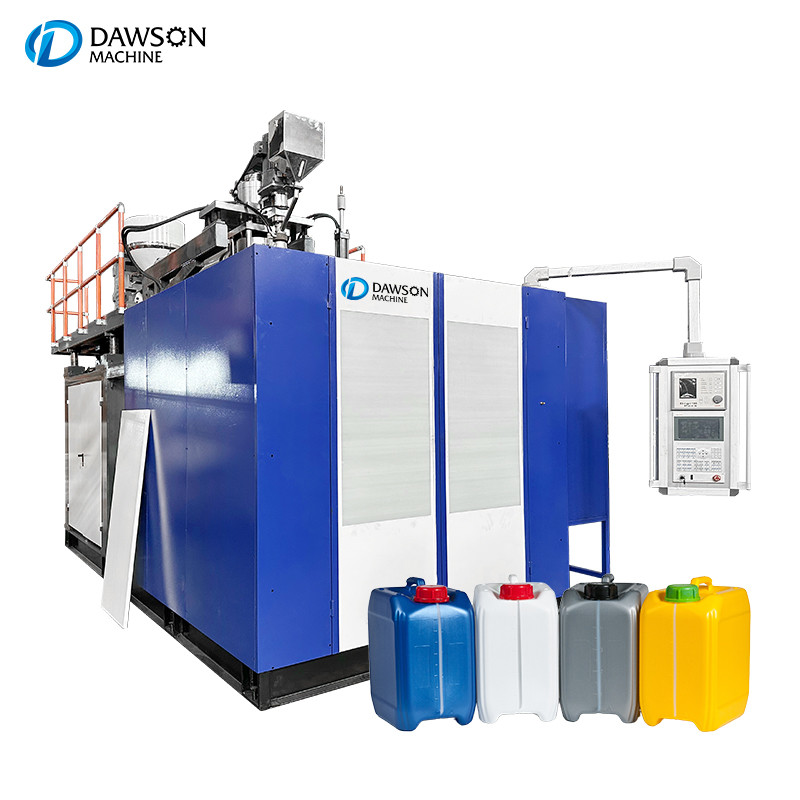

10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1

Basic Installation Including– DSB80-30T
Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device.Drive the screw with electromagnetism motor reducer to realize step less regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type

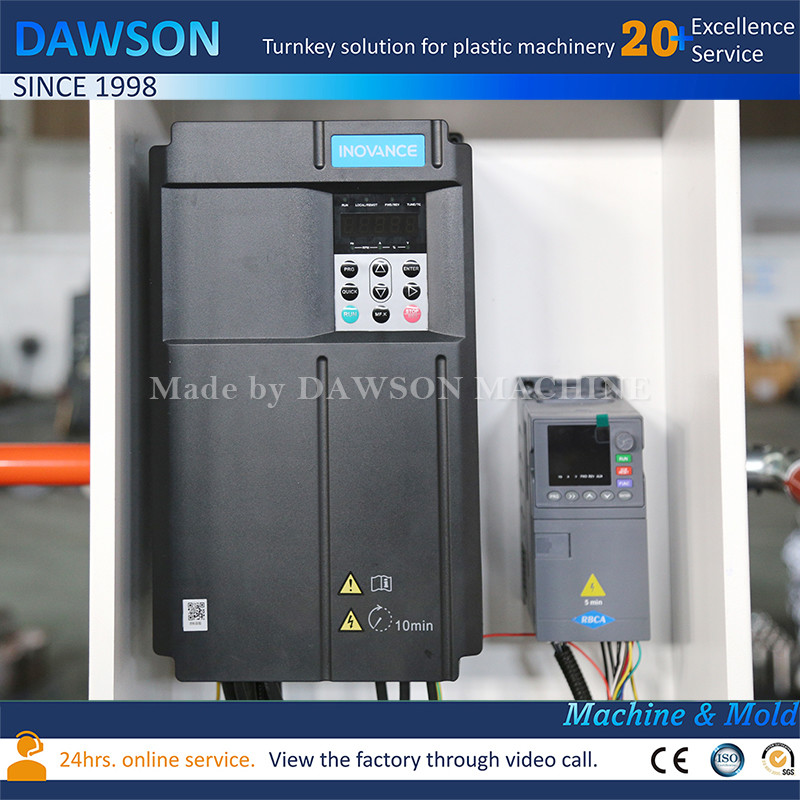

10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 2



Basic parameters Suitablematerial PE.PP,PVC,PS,PETG,soon
Maxvolume 20L
Outputcapacity 50~60PCS/H
Size 4.8×3.4×3.6(M)
Weight 11.3T
system Specification Parameters
Extrusion system Summarize High-gradealloysteel,centerfeeding
Dieheadnumber 1
Centerdistance ofdieheads /
Maxdiemouth 200
ExtruderMotor 30kwMOTOR

10L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 310L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 410L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 510L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 610L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 710L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 810L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 910L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1010L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1110L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1210L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1310L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1410L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 1510L 15L 20L Jerry Can Extrusion Blow Molding Machine Production Line 16
