Single Station Single Die Head HDPE Lubricant Oil Extrusion Blow Molding Machine

Brand Name:	Dawson
MOQ:	1
Price:	USD 22800-26800
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Blow Molding Type:

Extrusion Blow Molding Machine

Maximum Application Size:

20L

Cooling Water Pressure:

0.6 MPA

Water Consumption:

100 L/Min

Mould Lifespan:

> 1,000,000 Cycles

Mold Material:

P20, 2316, S136H, Aluminum With Beryllium Copper.

Language Settings:

Chinese, English And Other Language As Customer Need

Labor Demand:

1~2 Operetor

After-sales Service Provided:

After-sales Service Provided

Marketing Type:

Ordinary Product

Highlight:

Single Station HDPE Blow Molding Machine

Lubricant Oil HDPE Blow Molding Machine

Single Head Extrusion Blow Molding Machine

Product Description

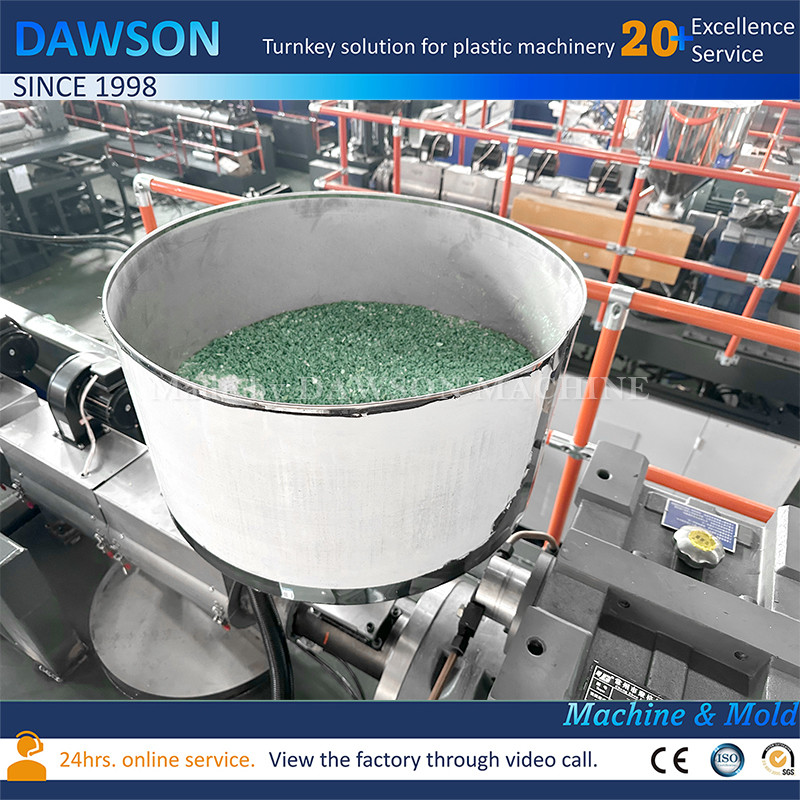

Single Station Single Die Head HDPE Lubricant Oil Extrusion Blow Molding Machine 0

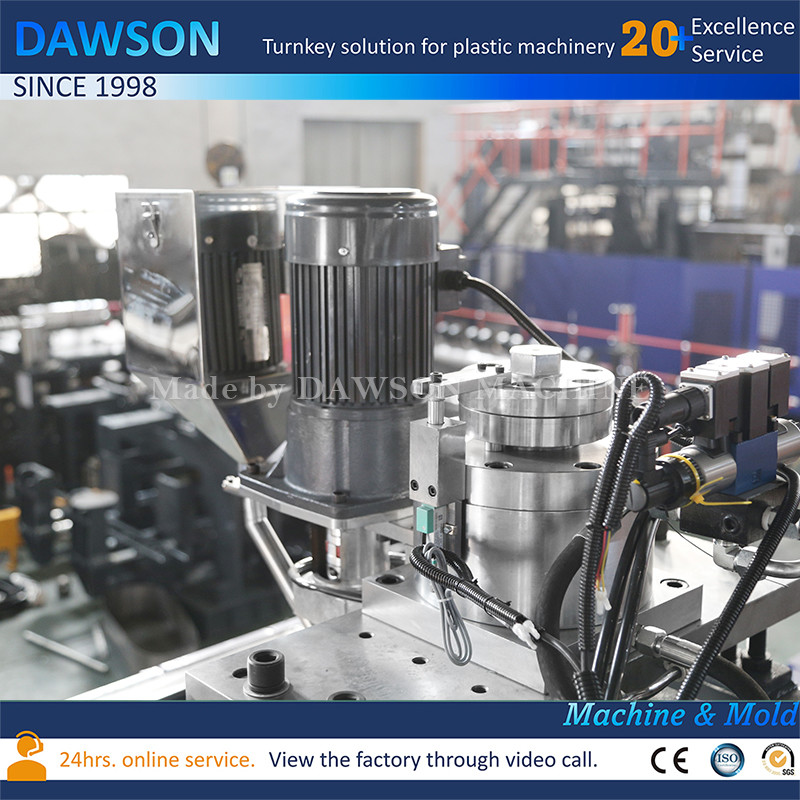

Single Station Single Die Head HDPE Lubricant Oil Extrusion Blow Molding Machine 1

Basic Installation Including– DSB80-30T

Die head: Center-feed die head

Extrusion system: Adopt world-famous brand automatic temperature controlling device.Drive the screw with electromagnetism motor reducer to realize step less regulating.

Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well

Blowing device: with upper blowing type

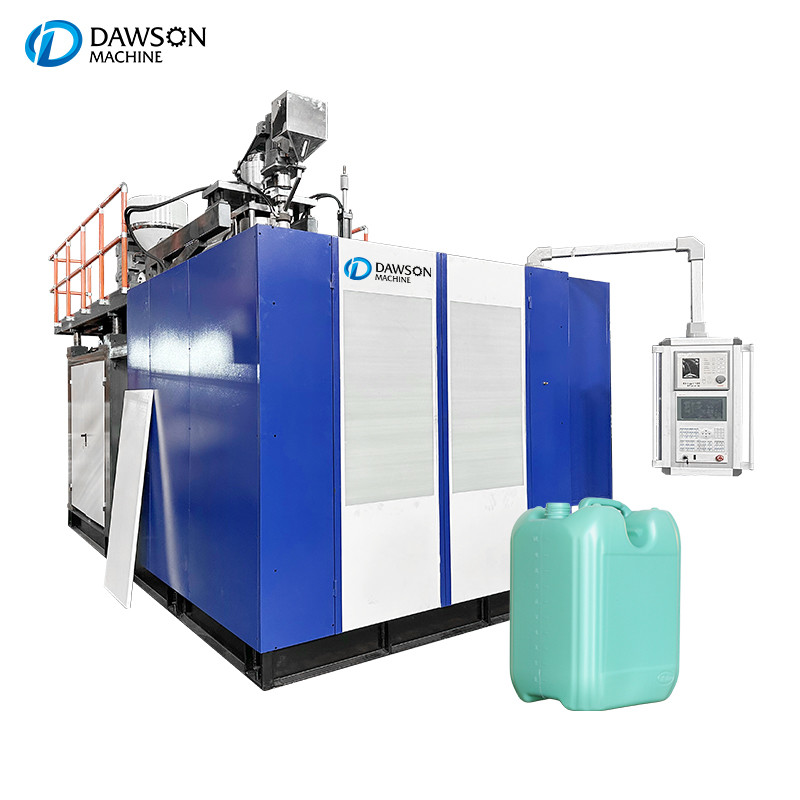

Single Station Single Die Head HDPE Lubricant Oil Extrusion Blow Molding Machine 2

Basic parameters	Suitablematerial	PE.PP,PVC,PS,PETG,soon
	Maxvolume	20L
	Outputcapacity	50~60PCS/H
	Size	4.8×3.4×3.6(M)
	Weight	11.3T
system	Specification	Parameters
Extrusion system	Summarize	High-gradealloysteel,centerfeeding
	Dieheadnumber	1
	Centerdistance ofdieheads	/
	Maxdiemouth	200
	ExtruderMotor	30kwMOTOR
