30l Extrusion Blow Molding Machine 25l Jerrycan Automatic Single Station 22KW

30l Extrusion Blow Molding Machine 25l Jerrycan Automatic Single Station 22KW

Brand Name:	DAWSON
Model Number:	DSB80-30L
MOQ:	1 set
Price:	US $59999-69800/ Set
Delivery Time:	55-65working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Accuracy:

±0.02mm

Clamping Force:

250KN

Control System:

PLC

Heating Power:

22KW

Heating Zone:

Material:

PP,PE,PC,ABS,PA,PVC,etc.

Max.Die Diameter:

250mm

Max.Extrusion Capacity:

120KG/H

Clamping Stroke:

400-900mm

Max.Product Volume:

30L

Power Supply:

380V/50Hz

Screw Diameter:

80mm

Screw L/D Ratio:

Type:

Continuous Type Die Head Extrusion Blow Molding Machine

Weight:

10000KG

Warranty:

One Year

Blow Moulding Type:

Extrusion Blow Moulding

After-sales Service Provided:

Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service

Voltage:

Customized,380V/3PH/50HZ

Color:

Can Be Customized

Machine Type:

Extrusion Blow Molding Machine

Suitable Bottle:

10-30L HDPE Jerry Can

Packaging Details:

Standard Export Packing

Supply Ability:

5 sets / month

Highlight:

Automatic Extrusion Jerrycan Blow Molding Machine

Automatic 30l Extrusion Blow Molding Machine

22KW Jerrycan Blow Molding Machine

Product Description

25l Jerrycan Automatic Single Station 30l Extrusion Blow Molding Machine

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru, UAE, Saudi Arabia, Romania, Italy, Vietnam, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, Malta, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, ....

30l Extrusion Blow Molding Machine 25l Jerrycan Automatic Single Station 22KW 0

Products Description

DAWSON MACHINERY & MOULD GROUP

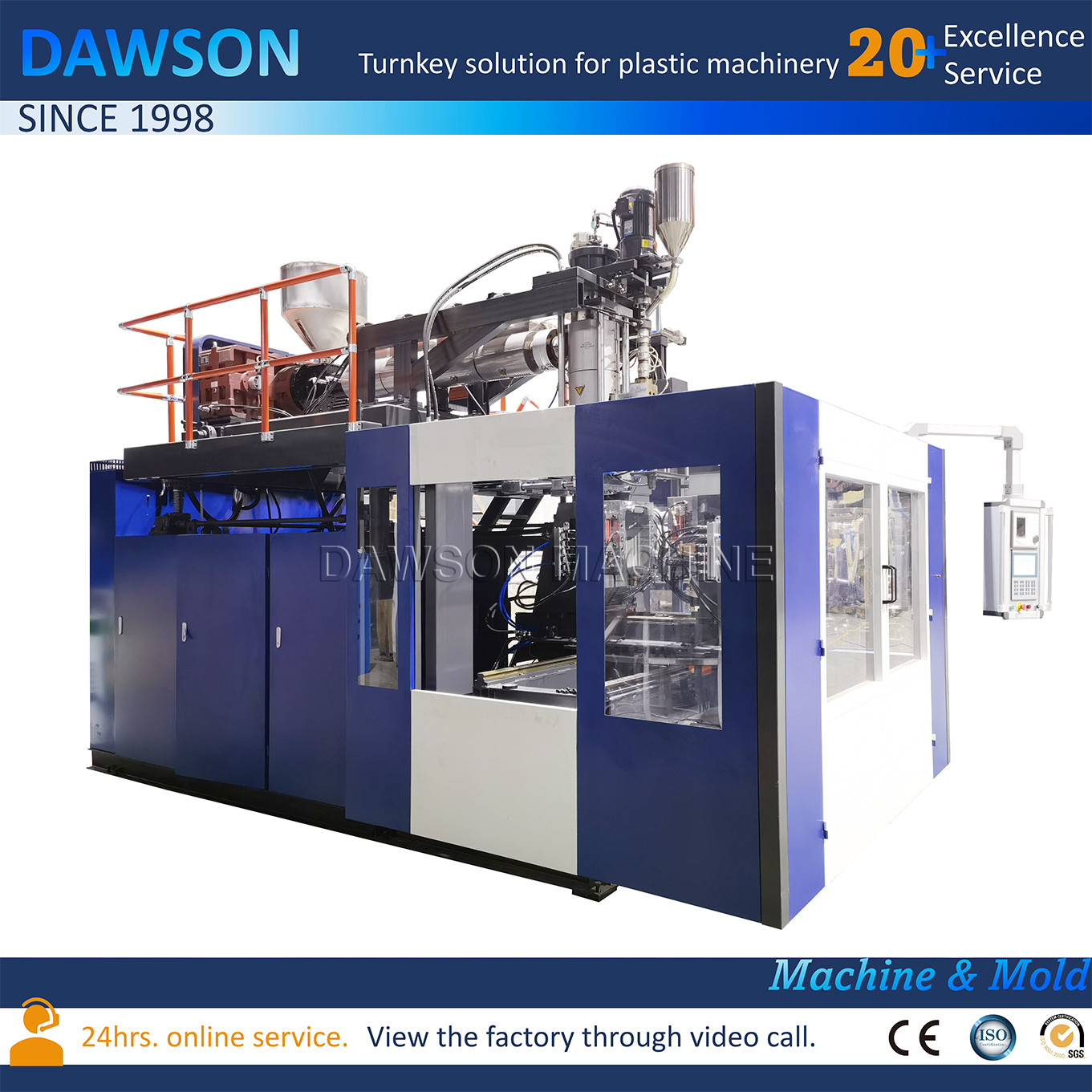

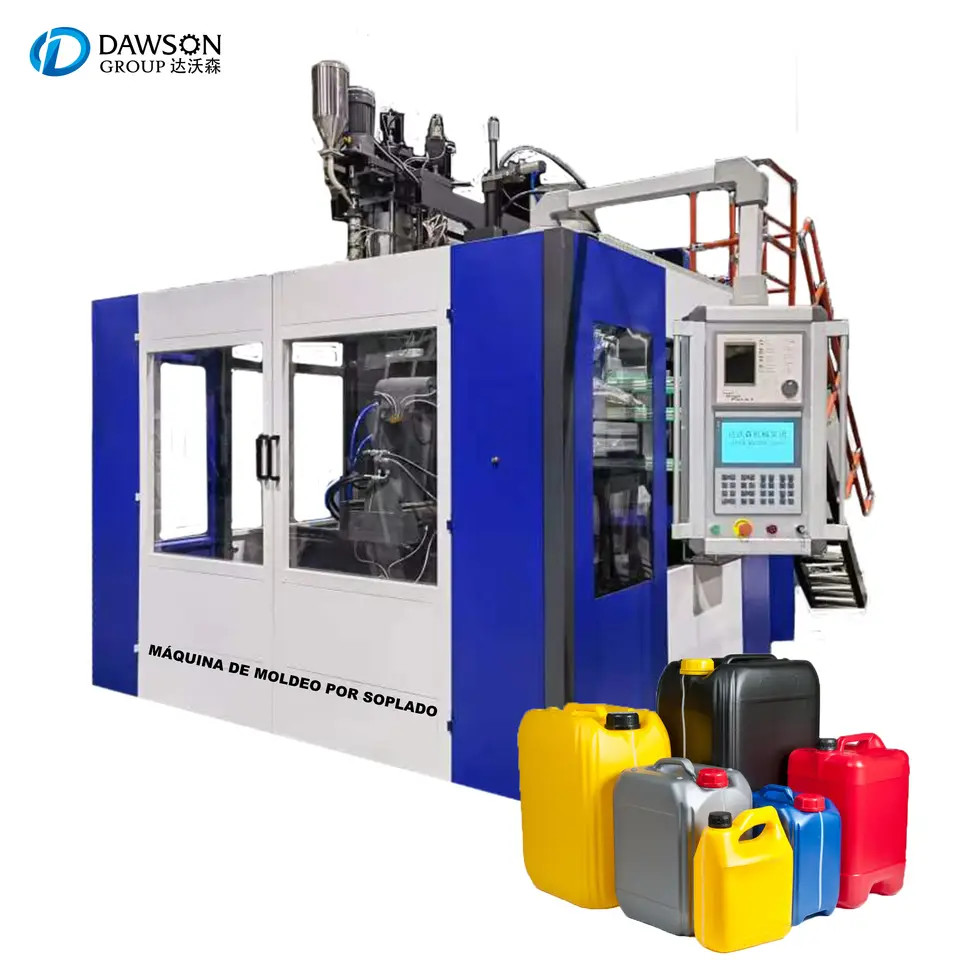

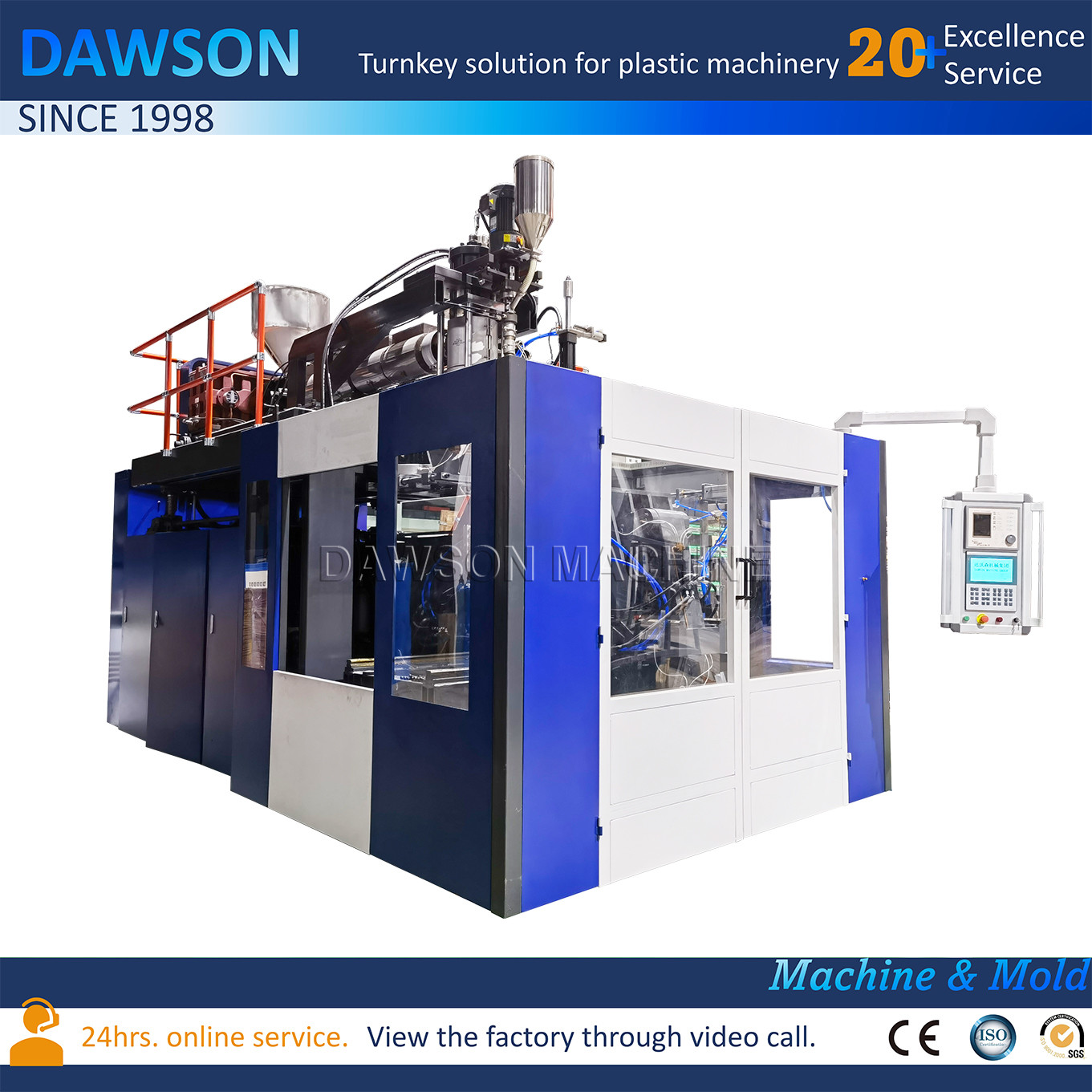

Extrusion Blow Molding Machine DSB80-30

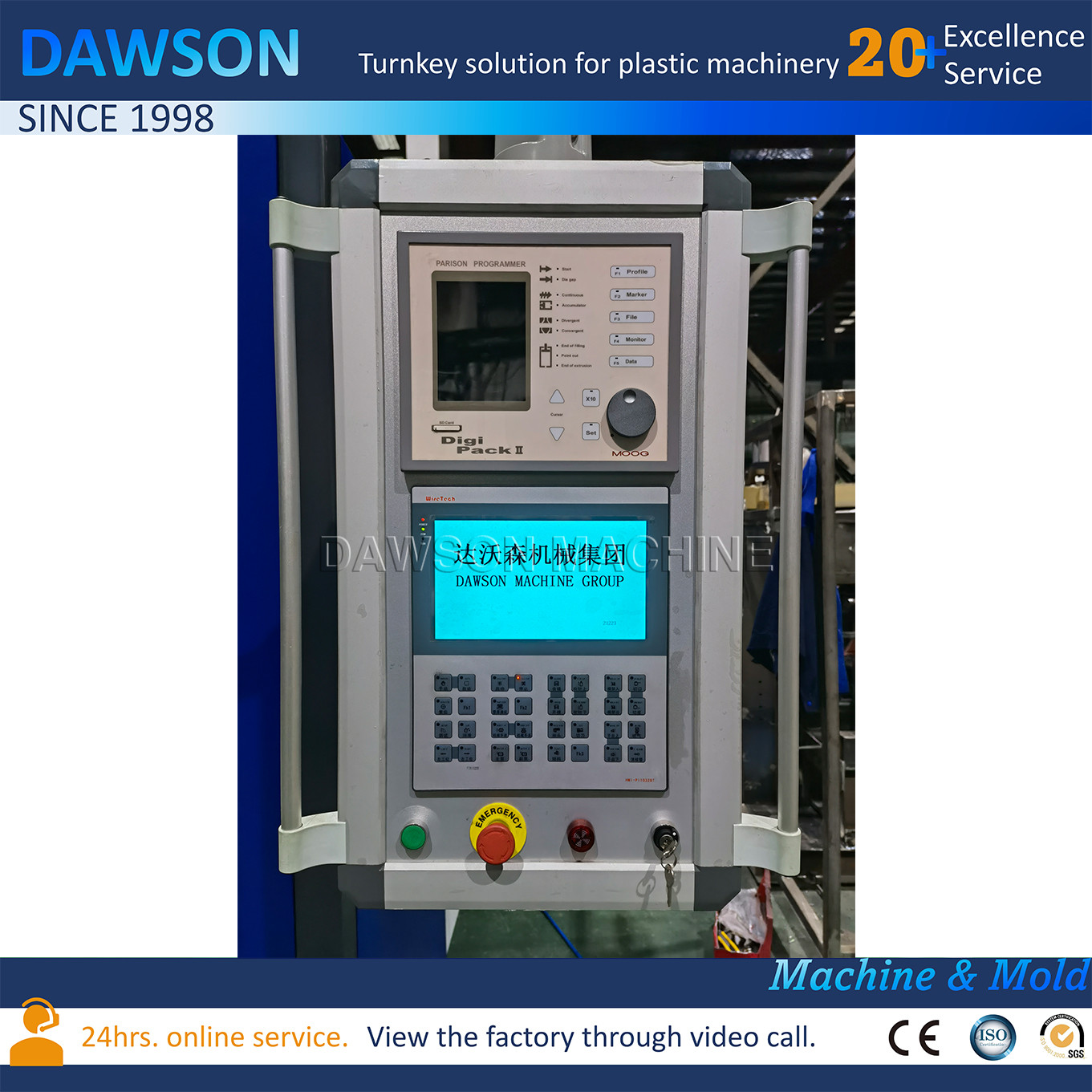

suitable for making plastic bottle, jars, containers, jerrycans up to 30L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Machine Model		Max. Bottle size	Production forecast
DSB80-30L	Single Station/ 1 Head	30L	50-60 pcs/hour

Technical Specification

Name	Units	DSB80-30L
Max.product volume	L	30L
Screw diameter	MM	80
Screw drive power	KW	37
Output of HDPE	KG/H	120
Oil pump drive power	KW	22
Clamping force	KN	250
Max.size of mold	MM	600× 630
Template size	MM	550×680
Mold stroke	MM	400-900
Size of machine	L×W×H	3.6×2.8×2.8
Weight of machine	TON	10

High Quality Mould

High Quality Blow Molding mould

The mold is a very important part in the plastic container blow molding process. A good quality extrusion blow mould can make the product production with higher efficiency, and moulds that are through find machining, and water ways, can also make the finished product with beautiful surface.

Our own mould manufacturing workshop, using high configuration equipment and we have engineers with more than 16 years of technical experience, who has the qualification to customize blow molding moulds for you.

- Using stainless steel S136H or Aluminium alloy 7075# as mould cavity material- And neck plate using heat treatment to HRC62 hardness JAPAN DC53.

- Double neck design for you to easy and fast change in future, no need to communicate with us and wait us to send the neck.

- Moulds, we can make with auto-deflashing or manual deflashing according to your different demands

- Perfect mould cooling water way design, can enable better mould cooling preformace

- 2D & 3D product drawing available for customers to confirm the drawing

- Before delivery, we will send samples for customer's check and confirm the product effect.

- We ever made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...


Customers' Satisfaction
We committed to provide customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...

			FAQ

			Q: Can we visit your factory?

			Sure. We're in Zhangjiagang city which is very near Shanghai. We will arrange to pick you up at Shanghai Pudong International Airport.

			Q: How can we get the exact price of plastic machine?

			Your helping for sending us the products size, picture, weight and required production capacity, we can recommend suitable machine and provide quotation.

			Q: Do you provide any spare parts with machine?

			Yes, we will put all necessary spare parts together with the machine when delivery.

			Q: How about your after-sale service ?

			We offer manual instruction and engineer training after delivery, after you prepared the air source, water source, electrical source and ready to do installation and commissioning, we will provide 24 hours online support, video technical support or field installation assist.

			Q: What is the delivery time?

			For standard machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

			Q: What is the warranty period for your machine ?

			12 months warranty for components and technical support .

			Q: Do you provide custom machines?

			Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

			Q: How can we install the machine when it arrives?

			We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

			Q: What's DAWSON's advantage?

			DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

			DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
