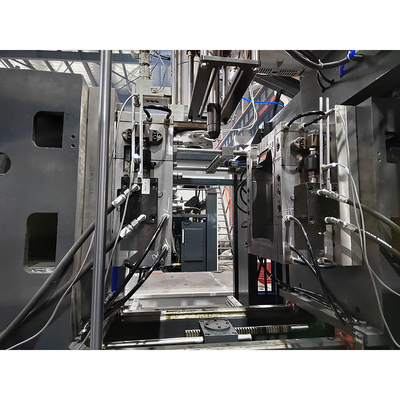

25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical

1 set
MOQ
USD 45,800 ~ 51,800 / set
Price
25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical
Features Gallery Product Description Request A Quote
Features
Specifications
Product Range: 10~30L
Productivity: 45~60BPH
Screw Diameter: 80 Mm
Screw L/D Ratio: 24
Screw Drive Power: 37 KW
Screw Heating Capacity: 37KW
No. Of Heating Zone: 5
Output Of HDPE: 120 Kg/h
Oil Pump Drive Power: 37 KW
Clamping Force: 900 KN
Die Head Heating: 36 KW
Total Installation Power: 241 KW
Average Consumption: 144 KW
Max. Size Of Mold: 1200*1700 Mm
Template Size: 1200*1600mm
Mold Stroke: 880-1700 Mm
Max. Die Diameter: 700mm
Blowing Pressure: 0.6 MPa
Air Volume: 1.6 M3/min
Cooling Water Pressure: 0.3 MPa
Water Consumption: 180 L/min
Size Of Machine: 7.5*3.5*5.5
Machine Weight: 36 T
Warranty: 1 Year
Blow Moulding Type: Extrusion Blow Moulding
Plastic Processed: PE,PET,PP,HDPE,PVC
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service
Highlight:

30L Automatic Extrusion Blow Molding Machine

,

Stackable Extrusion Blow Molding Machine

,

Lubricant Oil Bottle Extrusion Molding Machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: DSB80-30L
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 2~3 months
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets / month
Product Description

20L 25L 30L Automatic Lubricant Oil Bottle Stackable Chemical Bottle

Extrusion Blow Molding Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru...





2. Station
This machine is single station.

3. Die head
Available for bottles below 30L.

4. Mould - Aluminium 7075# inserted beryllium copper
The best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.

( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing. )



5. MOOG 100 Point Parison control system is a program to change the parison thickness, As the plastic is extruded from the die head, the programming can:
1. Reduce the plastic used
2. Improved wall thickness distribution
3. Reduce cooling time




25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical 0











Do we have to use MOOG parison system?
No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles.
MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG.



Our servo motor is using Italy PHASE SERVO MOTOR.
Which is one of the best & most reliable servo system for hydraulic.

FEATURES

1. Energy Saving
Energy savings at least 40% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions. )

2. High Accuracy with Simple Operation
High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands


3. Longer life for hydraulic units & O sealings
MOOG Servo motor due to its instant reaction speed, it does not require always running like traditional induction motor, so the hydraulic oil temperature is lower, which protect the hydraulic units and O-rings to use more longer life.

4. Faster Shipping Adjustment
Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time


5. Improving the Working Environment
Reduced noise during operation


6. Exceeds Standard of High Efficiency Motor regulation
Incorporating a motor dedicated to servo-based rotational speed control
Since no induction motor is used, the maximum discharge rate of the pump does not fluctuate depending on the power supply frequency, making it unnecessary to adjust the machines' maximum speed for each shipping destination.

25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical 1

25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical 225l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical 3





25l 30l Automatic Extrusion Blow Molding Machine Lubricant Oil Bottle Stackable Chemical 4

Type of Blow Molding Machine


Extrusion blow molding
In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected.

EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:

1. Continuous Extrusion Equipment

  • Rotary wheel blow molding systems
  • Shuttle machinery

2. Intermittent Extrusion Machinery

  • Reciprocating screw machinery
  • Accumulator head machinery

Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.

Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking.

Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

​​

Plastic machines we provide ....

Extrusion Blow Molding Machine

Injection Blow Molding Machine

PET Blow Molding Machine

Injeciton Molding Machine

Injection Stretch Blow Molding Machine
Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.

Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.

House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.

Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.

Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.

Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.

Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
