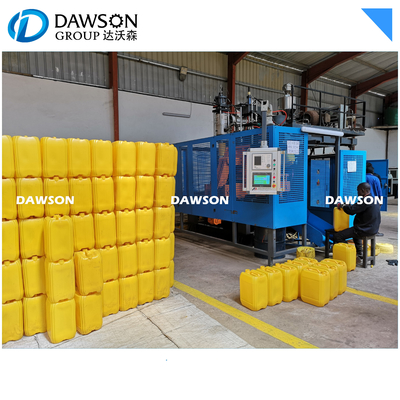

10L ~30L Jerry Can View Strip 2 Layers 3 Layers Oil Bottle Tank Drum HDPE Plastic Production Line Blowing Machine
Extrusion blow moulding machine ABLD80
|Basic parameters||Suitable material||PE.PP,PVC,PS,PETG,so on|
|Max volume||ABLD80 max: 60L|
|Plasticizion system||Summarize||High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature|
|Reducer||Hard finishing,High intension,Low noise reducer|
|Screw||∮90mm,L/D ratio 25, 38CrMoALA||Cooling system available|
|Plasticization||100 ~ 130Kg/H||HDPE|
|Heating Zone||4 Aluminum Heater||Automatic heating|
|Extrusion Motor||Three phase asynchronous motor (380V,50HZ)|
|Cooling Fan||4zone||Automatic cooling|
|Extrusion system||Summarize||High-grade alloy steel, center feeding|
|Die head number||1|
|Center distance of die heads||/|
|Max die mouth||∮280~340mm|
|Heating zone||4 Stainless steel heating cycle|
|Clamping system||Summarize||High intension, rigidity, center mold locking, stable mould opening and clamping system|
|Max mould size||700X950mm|
|Mould material||High grade 50# steel|
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
|Operate interface||Touch screen, automatic self-diagnose alarm system|
|Temperature control||Automatic temperature control module|
|Movement control||Japanese Mitsubishi, Chinese/English
|Electric protection||Ampere overload, electric short circuit self-protection function|
|Hydraulic system||Summarize||Multiple function hydraulic integrated block Proportional control, high efficient|
|Oil pump motor||Three phase asynchronous motor (380V/220V,50/60HZ)|
|Oil pump||Imported double pump|
|Valves||Imported oil pump valves and connections|
|Oil pipes||Double layer overpressure resistant|
|Cooling system||Separate water cooling cycle, oil cooler cooling system|
|Pneumatic system||Summarize||Taiwan AIRTAC pneumatic system|
|Electromagnetic valve||Taiwan AIRTAC|
|Cooling system||Summarize||Separate cooling system of mould, barrel and oil system|
Automatic Extrusion Blow Molding Machine ABLB80
High quality HDPE drums making machine
Servo motor energy saving blow molding machine
HDPE jerry cans blow molding machine
20L to 60L HDPE jerry can blowing moulding machine
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
