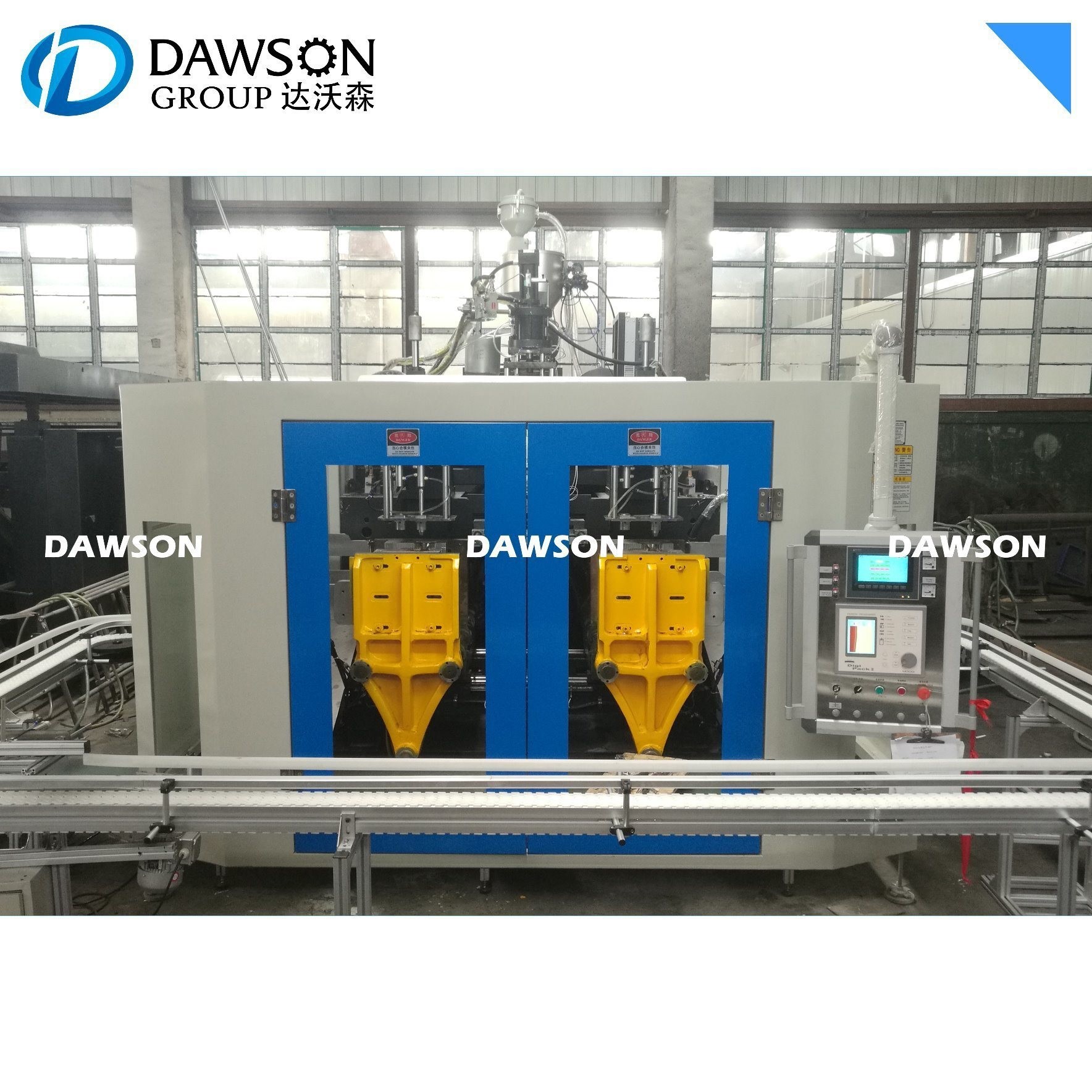

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line

Name: 2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line
Brand: Dawson Machinery & Mould Group Co.,Ltd
SKU: TCY70II-1
Price: 26800 USD
Availability: InStock

Brand Name:	DAWSON
Model Number:	TCY70II-1
MOQ:	1 set
Price:	USD 26800 per set
Delivery Time:	40-65 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Application:

Bottles, Jars, Jerry Cans, Gallons, Containers

Station:

Single Station Or Double Station

Die Head:

Single Head Or Double Head

Max. Product Volume:

Auto-Deflashing:

With Auto-Deflashing

Clamping Force:

68KN

Mould:

One Cavity Or Two Cavity

Suitable Material:

HDPE,PP,PVC,PS,PETG,LDPE

Highlight:

Extrusion 2L Blow Molding Machine

22KW Jerry Cans Blow Molding Machine

Extrusion Blow Molding Full Automatic Line

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Automatic Extrusion Blow Molding Machine TCY70II-1

Single die head (2~5L)
Double die head (0~2L)
Triple die head (0~750ml)
Four die head (0~500ml)
Changing the die head system takes around 1.5~3h, this also included heating time.

UNITS		TCY70II SERIERS
Max container capacity	L		5
Number of die heads	Set		1
Dry cycle time	Second		5
*Machine dimension (LWH)*	M		*3.32.32.6*
Total weight	Ton		5.5
CLAMPING UNIT
Clamping force	KN		68
Platen opening stroke	mm		200-500
Platen size	mm		*360470**
*Max mould size (WH)**	mm		*390470**
Mould thickness	mm		210-300
Platen moving distance	Mm		440
POWER
Extrusion motor power	KW		22
Oil pump motor power	KW		5.5
Extrusion heating power	KW		12
Head heating power	KW		5.7
Cooling Fan power	KW		0.26
Total power	KW		45.46
Average power consumption	KW		23.5
EXTRDER UNIT
Screw diameter	mm		70
Screw L/D ratio	L/D		24
Plasticizing capacity	Kg/hour		90
Number of heating zone	Zone		3
Extruder heating power	KW		14.2
Extruder driving power	KW		22
Cooling Fan No			2
Fan power	KW		0.26
DIE HEAD
Head type	Continuous extrusion head
Head No	1	2		3	4
Central distance / mm	-	160		110	85
Max die diameter / mm	135	80		50	30

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 0

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 1

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 2

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 3

Our servo motor is using JAPAN DAIKIN SUPER UNIT SERIES.
Which is one of the best & most reliable servo system for hydraulic.
FEATURES
1. Energy Saving
Energy savings at least 40% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions.)
2. High Accuracy with Simple Operation
High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands
3.Longer life for hydraulic units & O sealings
MOOG Servo motor due to its instant reaction speed, it does not require always running like traditional induction motor, so the hydraulic oil temperature is lower, which protect the hydraulic units and O-rings to use more longer life.

4. Faster Shipping Adjustment
Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time
5. Improving the Working Environment
Reduced noise during operation
6. Exceeds Standard of High Efficiency Motor regulation
Incorporating a motor dedicated to servo-based rotational speed control
Since no induction motor is used, the maximum discharge rate of the pump does not fluctuate depending on the power supply frequency, making it unnecessary to adjust the machines' maximum speed for each shipping destination.

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 4

2L Jerry Cans Extrusion Blow Molding Machine 22KW Full Automatic Line 5

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
