1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine

Minimum Order Quantity : 1 set Price : USD 28000 per set
Delivery Time : 40-65 work days Payment Terms : L/C, T/T
Place of Origin: China Brand Name: DAWSON
Certification: CE Model Number: ABLB75

Detail Information

Screw L/D Ratio: 24 L/D Air Volume: 0.7 M3/Min
Mold Stroke: 170-520 Mm Clamping Force: 80KN
Dry Cycle: 800 PC/H Sutiable: 0~5L Bottle
Suitable Material: HDPE,PP,PVC,PS,PETG,LDPE
High Light:

240PCS/H pp blow moulding machine

,

HDPE pp blow moulding machine

,

Single head 5l blow moulding machine

Product Description

1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine

DAWSON MACHINERY & MOULD GROUP

***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Automatic Extrusion Blow Molding Machine ABLB75II



U Product: 0~5 L Bottles

U Power supply: 380/220V 50/60 Hz Tri-phase

U Die head number: Single / Double

U Suitable raw material: PE, PP, PVC, PS, PETG

U Output capacity: 220~240 PCS/h (5L) / with single head

450~480 PCS/h (1L) / with double head



Basic parameters Suitable material HDPE. PP, PVC, PS, PETG, so on
Max volume 5L (Single head) / 1L double die head
Output capacity 220~240 PCS/h
Size 3.8*2.3*2.5(M)
Weight 4.8T
System Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
Reducer Material of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: Quenching
Brand: GuoTai
(The best Gearbox supplier in China)
Screw 75mm, L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling Fan
Cooling system available
Plasticization 100Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 4KW/H
Extrusion Motor Three phase asynchronous motor (380V, 50Hz) 30HP Brand: Siemens
Cooling Fan 3-4zone Automatic cooling


Extrusion system

Summarize High-grade alloy steel, center feeding
Avaible to change to double die head or thriple die heads
Die head number Single head for 5L / double head for 1L
Center distance of die heads 130mm or 160mm for Double die head
75mm or 80mm for Four die head
Die head Material of the die Head: 38CrMoAlA+40Cr+45# Steel
Die head corn mirror degree
We provide complete set die for each sample free
Heating 3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checking
Plug type heater more easy and convinient for changing die heads
Heating power 3~5KW
Clamping system Automatic Lubricant system for clamping system
Clamping force 80KN
Template distance 150~560mm
Max mould size 400X450mm
Platen moving stroke 520mm
Lubrication Equiped with automatic lubrication system























Electric system
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting, auxiliary function available) Siemens or MITSUBISHI PLC
System + TOUCH SCREEN
Operate interface Touch screen, automatic self-diagnose alarm system

Temperature control Automatic temperature control module Siemens OR MITSUBISHI MODULE
Electrical parts Schneider electricals & Omron relay
Electric protection Ampere overload, electric short circuit self-protection function
Parison controller Japan MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional: 10500 USD/ complete set if needed )

Invertor DELTA (Taiwan) 380V50Hz
One for main screw + another for lever line screw

Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V, 50Hz) 7.5kw
Oil pump Imported double pump
Valves Japan YUKEN Hydraulic valves
YUKEN Hydrulic valve
Precision control
More safe and easy to operate and maintenance
Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
O-sealings
High quality O-sealings
We provide spare parts for each sealings
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Separate water cooling cycle, oil cooler cooling system
High quality Oil cooler

Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8MPa
Air displacement 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa

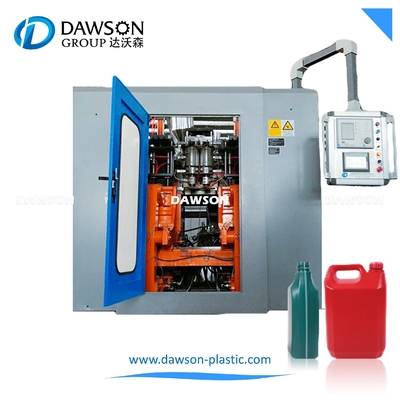

1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine 0

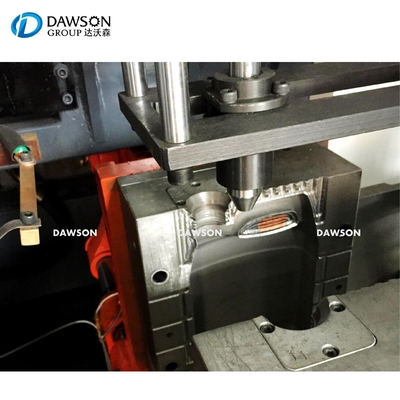

1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine 1

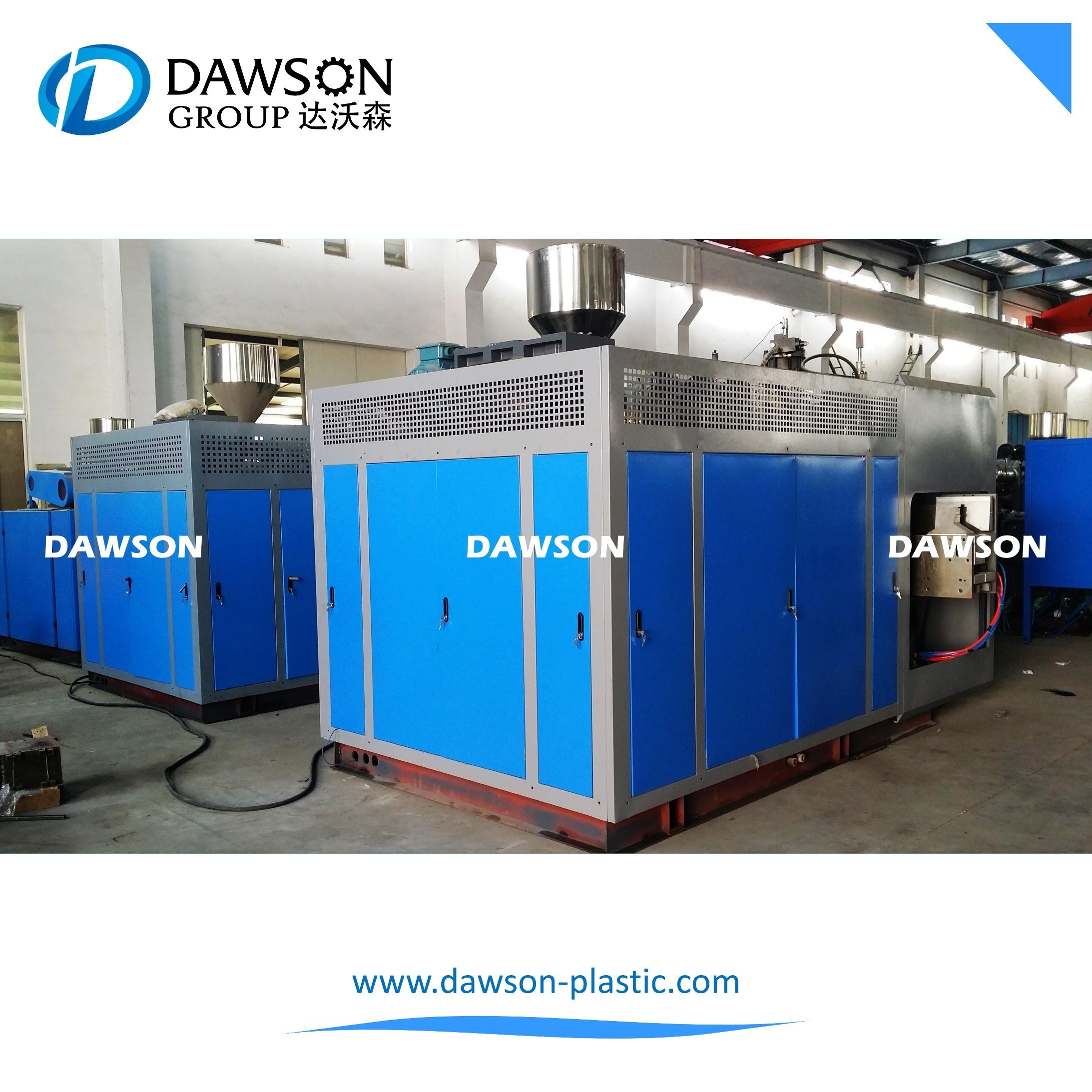

1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine 2

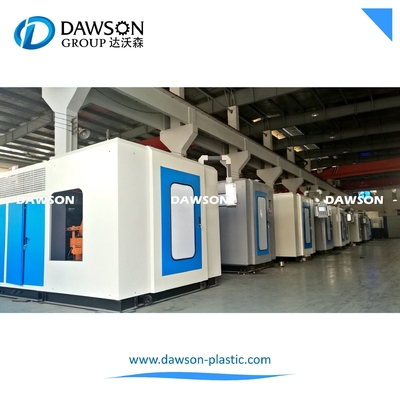

1L 5L HDPE PP Plastic Bottle Making Machinery Extrusion Blow Molding Machine 3
