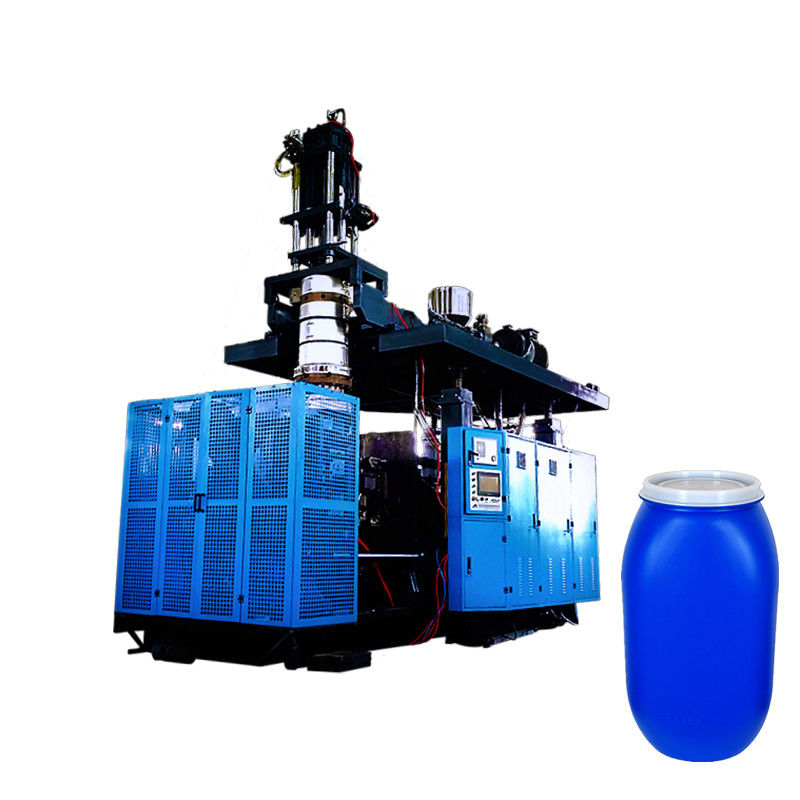

120l 220 Litre Open Top Plastic 55 Gallon Drum Blow Molding Machine

Minimum Order Quantity : 1 set Price : US $36,000-68,000/ Set
Packaging Details : Standard Export Packing Delivery Time : 35-45 working days
Payment Terms : L/C, T/T Supply Ability : 20-30 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: ABLD100

Detail Information

Clamping Force: 600 Kn Suitable Product Volume: 100-120 L
Screw Diameter: 100mm Trademark: Dawson
Station Number: Single Screw Drive Power: 75 Kw
Mold Stroke: 550-1350mm Specification: ABLD100
HS Code: 8477301000 Max. Product Volume: 120L
Robot System: Available Guarantee Time: One Year
Screw L/D Ratio: 28 L/D Output Of HDPE: 200 Kg/H
Max.Size Of Mold: 1000X1300mm After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Transport Package: Film Packing Plastic Processed: PE,PET,PP,HDPE,PVC
High Light:

220 litre drum blow molding machine


55 gallon drum blow molding machine


120l plastic blow molding machine

Product Description

120L 220 litre open top plastic 55 gallon drum blow molding machine
Technical Parameters
Name Units ABLD100 ABLD120
Max.product volume L 120 300
Screw diameter MM 100 120
Screw drive power KW 55 132
Screw heating capacity KW 22 36
Output of HDPE KG/H 200 350
Oil pump drive power KW 22 37
Clamping force KN 600 900
Max.size of mold MM 1000×1300 1200×1700
Material storage L 14 24-35
Template size MM 1150×1150 1200×1600
Mold stroke MM 500-1350 880-1700
Max.die diameter MM 450 700
Die heating power KW 21 36
Size of machine L×W×H 5.4×2.5×4.5 7.5×3.5×5.5
Weight of machine TON 15



Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Accumulation Blow Molding Machine ABLD100
Machine Model Max. Bottle size Production forecast

Chemical barrels Drum Blow Molding Machine 120L Hdpe Open Top Plastic Single die head Blow Molding Machine


Single Station/

1 Head

200L 18~20 BPH




120l 220 Litre Open Top Plastic 55 Gallon Drum Blow Molding Machine 1120l 220 Litre Open Top Plastic 55 Gallon Drum Blow Molding Machine 2120l 220 Litre Open Top Plastic 55 Gallon Drum Blow Molding Machine 3120l 220 Litre Open Top Plastic 55 Gallon Drum Blow Molding Machine 4


The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 120L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.



ABLD100 Accumulation Blow Molding Machine

was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L.
