60l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines

1 set
MOQ
US $36,000-68,000/ Set
Price
60l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines
Features Gallery Product Description Request A Quote
Features
Specifications
Suitable Product Volume: 100-120 L
Station Number: Single
Max. Product Volume: 120L
Screw Diameter: 100mm
Screw Drive Power: 75 Kw
Plastic Processed: PE,PET,PP,HDPE,PVC
Specification: ABLD100
Trademark: Dawson
Max.Size Of Mold: 1000X1300mm
Clamping Force: 600 Kn
Mold Stroke: 550-1350mm
Screw L/D Ratio: 28 L/D
HS Code: 8477301000
Transport Package: Film Packing
High Light:

hdpe drums extrusion blow molding machine

,

extrusion blow molding machine 120l

,

60l pp blow moulding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: ABLD100
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description

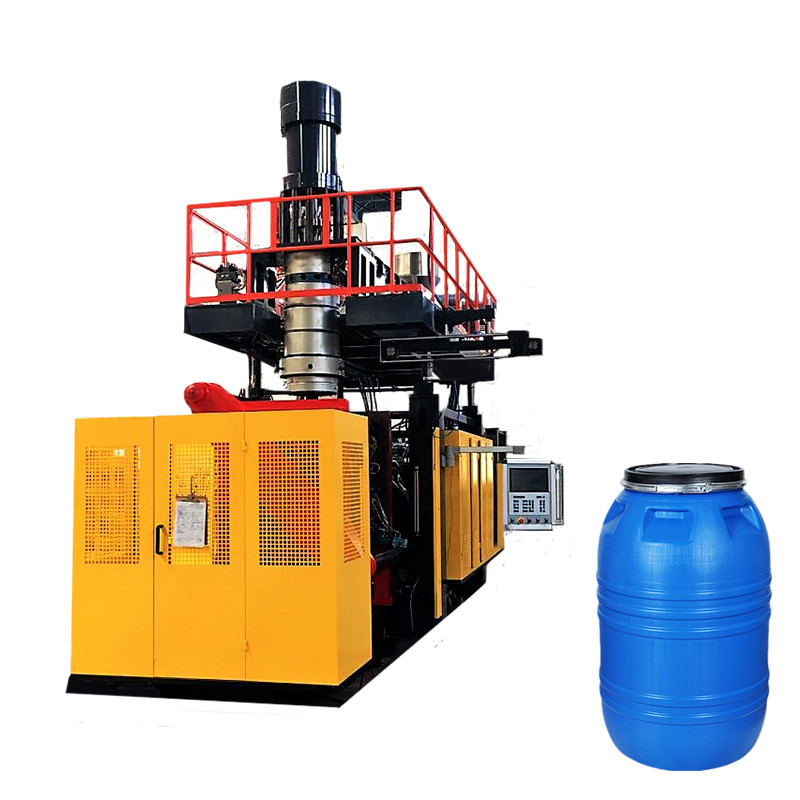

60L/120L Hdpe Top grade extrusion blow molding blue plastic drums making machines




ABLD100 Accumulation Blow Molding Machine
was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L.





● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA






Accumulation Blow Molding Machine ABLD100
Machine Model Max. Bottle size Production forecast

Chemical barrels Drum Blow Molding Machine 120L Hdpe Open Top Plastic Single die head Blow Molding Machine

ABLD120

Single Station/

1 Head

200L 18~20 BPH







DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....



Technical Parameters
Name Units ABLD100 ABLD120
Max.product volume L 120 300
Screw diameter MM 100 120
Screw drive power KW 55 132
Screw heating capacity KW 22 36
Output of HDPE KG/H 200 350
Oil pump drive power KW 22 37
Clamping force KN 600 900
Max.size of mold MM 1000×1300 1200×1700
Material storage L 14 24-35
Template size MM 1150×1150 1200×1600
Mold stroke MM 500-1350 880-1700
Max.die diameter MM 450 700
Die heating power KW 21 36
Size of machine L×W×H 5.4×2.5×4.5 7.5×3.5×5.5
Weight of machine TON 15

36





60l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines 160l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines 260l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines 360l 120l Hdpe Extrusion Blow Molding Blue Plastic Drums Making Machines 4





The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 120L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.
