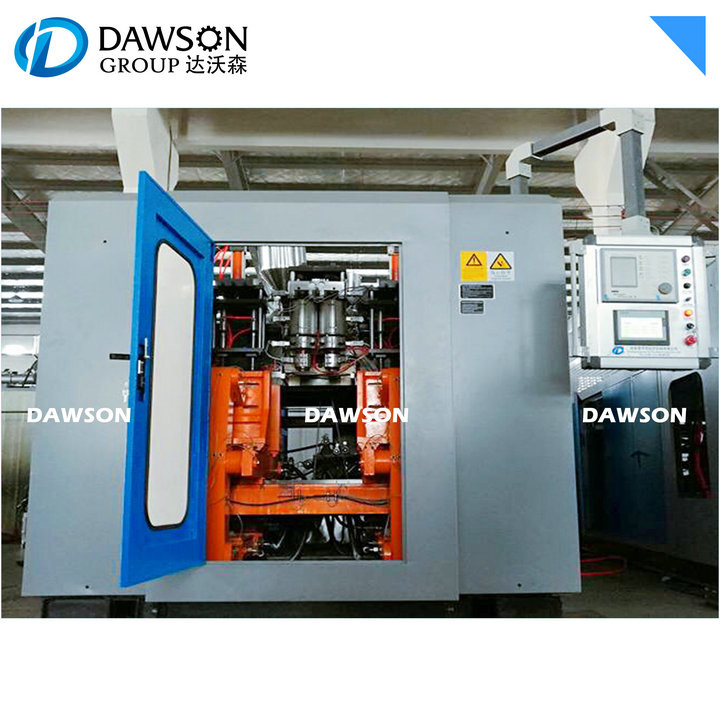

Accumulation Extrusion Blow Molding Machine PLC Plastic Life Buoy
Contact Person : Kenmartin
Phone Number : 008613913143237
WhatsApp : +8613913143237
|Minimum Order Quantity :||1 set||Price :||US $25,000-40,000/ Set|
|Packaging Details :||Standard Export Packing||Delivery Time :||35-45 working days|
|Payment Terms :||L/C, T/T||Supply Ability :||20-30 sets / month|
|Place of Origin:||CHINA||Brand Name:||DAWSON|
|Model NO.:||ABLB75II||Output Capacity:||180PCS/H|
|Screw Diameter:||75mm||Company Attribute:||Manufacturer|
|Delivery Days:||55 Days||After-Sales Service:||Engineers Available To Service Machinery Overseas|
|Screw Drive Power:||22kw||Output Of HDPE:||100kg/H|
|HS Code:||8477301000||Max Product Volume:||8 Liters|
|Guarantee Time:||One Year||Voltage:||Customer Specified|
|Screw L/D Ratio:||24 L/D||Screw Heating Capacity:||6kw|
|Clamping Force:||78kn||Transport Package:||Film Packing|
|Origin:||Zhangjiagang, Jiangsu, China|
ABLB75II Bottle Blow Molding Machine,
5L Bottle Blow Molding Machine,
78kn hdpe bottle blowing machine
1. Suitable products
0~5L HDPE, PP bottles
Applications: milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
This machine can be double station or single single station, depends on your output demands.
3. Die head
This machine when using single die head, can make 2L to 5L bottles,
However, the die head can also be changed to double die head, triple die head and 4 head to be able to make other smaller size bottles.
Single die head (2~5L)
Double die head (0~2L)
Triple die head (0~750ml)
Four die head (0~500ml)
Changing the die head system takes around 1.5~3h, this also included heating time.
4.Mould - Aluminium 7075# inserted beryllium copper
the best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.
( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing.)
5. MOOG 100 Point Parison control system is a program to change the parison thickness,As the plastic is extruded from the die head,the programming can:
1. Reduce the plastic used
2. Improved wall thickness distribution
3. Reduce cooling time
Do we have to use MOOG parison system?
No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles.
MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG.
|Basic parameters||Suitable material||HDPE.PP,PVC,PS,PETG,so on|
|Max volume||5L (Single head) / 1L double die head|
|Output capacity||220~240 pcs/h|
|Summarize||High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature|
|Reducer||Material of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: Quenching
(The best Gearbox supplier in China)
|Screw||∮75mm,L/D ratio 25/1,
Cooling by cooling Fan
|Cooling system available|
|Heating Zone||3-4 Aluminum Heater||Automatic heating|
|Extrusion Motor||Three phase asynchronous motor (380V,50HZ) 30HP||Brand: Siemens|
|Cooling Fan||3-4zone||Automatic cooling|
|Summarize||High-grade alloy steel, center feeding
Avaible to change to double die head or thriple die heads
|Die head number||Single head for 5L / double head for 1L|
|Center distance of die heads||130mm or 160mm for Double die head
75mm or 80mm for Four die head
|Die head||Material of the die Head:38CrMoAlA+40Cr+45# Steel
Die head corn mirror degree
|We provide complete set die for each sample free|
|Heating||3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checking
|Plug type heater more easy and convinient for changing die heads|
|Clamping system||Automatic Lubricant system for clamping system|
|Max mould size||400X450mm|
|Platen moving stroke||520mm|
|Lubrication||Equiped with automatic lubrication system|
|Summarize||PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)||SIEMENS or MITSUBISHI PLC
System + TOUCH SCREEN
|Operate interface||Touch screen, automatic self-diagnose alarm system|
|Temperature control||Automatic temperature control module||SIEMENS OR MITSUBISHI MODULE|
|Electrical parts||Schneider electricals & Omron relay|
|Electric protection||Ampere overload, electric short circuit self-protection function|
|Parison controller||JAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional : 10500 USD/ complete set if needed )
|Invertor||DELTA (TAIWAN) 380V50HZ
One for main screw + another for lever line screw
|Hydraulic system||Summarize||Multiple function hydraulic integrated block Proportional control, high efficient|
|Oil pump motor||Three phase asynchronous motor (380V,50HZ) 7.5kw|
|Oil pump||Imported double pump|
|Valves||JAPAN YUKEN Hydraulic valves|
|YUKEN Hydrulic valve
More safe and easy to operate and maintenance
Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
High quality O-sealings
|We provide spare parts for each sealings|
|Oil pipes||Double layer overpressure resistant|
|System pressure||LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)
|Cooling system||Separate water cooling cycle, oil cooler cooling system
High quality Oil cooler
|Pneumatic system||Summarize||Taiwan AIRTAC pneumatic system|
|Cooling system||Summarize||Separate cooling system of mould, barrel and oil system|
● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783
● E-mail: firstname.lastname@example.org
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
