Automatic Extrusion Blow Molding Machine ABLB65

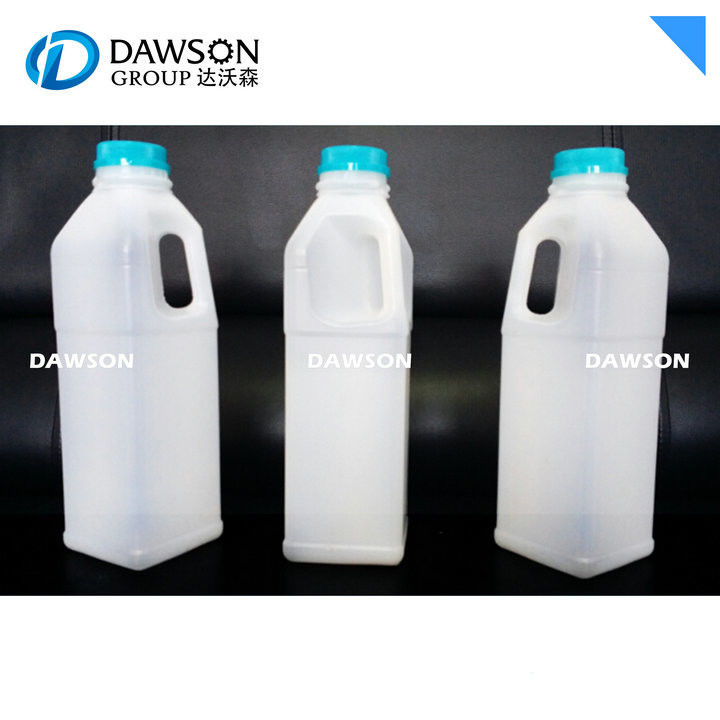

ABLB65 full automatic bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, cosmetic bottles, and other plastic containers not over 5L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station two die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
ABLB65 full-automatic bottle making machine is specially designed for plastic water bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over5Liters.Double station and two die head design is very easy to operate and maintain.Most components of the blow molding machine are from world famous brand.
Max. Product volume |
5Liters |
Out put capacities | 150~180pcs/h |
Screw diameter | 65mm |
Screw L/D ratio | 24L/d |
Screw drive power | 18.5kw |
Screw heating capacity | 6kw |
Heating zones | 3zones |
HDPE output | 80kg/h |
Oil pump drive power | 7.5kw |
Clamping force | 65kn |
Mold max size | 148-568mm |
Mold stroke | 330*370mm |
Max die diameter | 180mm |
Blowing pressure | 0.6mpa |
Air volume | 0.6m³/min |
Cooling water pressure | 0.3mpa |
Water consumption | 50L/min |
Machine size | 3.1*1.5*2.7m |
Machine weight | 7.2ton |
