Home /Products/Milk Bottle Blow Molding Machine/Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System

Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System

$32,000/sets 1-2 sets
Price
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System
Features Gallery Product Description Request A Quote
Features
Specifications
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear
Plastic Processed: PP, HDPE, PVC, PE/PP
Place Of Origin: China
Brand Name: DAWSON
Voltage: 220V,380V
Dimension(l*w*h): 3.9*2.0*2.6
Clamping Force (kN): 65
Screw L/D Ratio: 24
Screw Diameter (mm): 65 Mm
Output (kg/h): 75 Kg/h
Automation: Automatic
No. Of Screw Heating Zone: 3
Screw Heating Power(kw): 6 KW
Extruder Motor Power(kw): 18.5 KW
Mold Platen Size(width)(mm): 290 Mm
Mold Platen Size(height)(mm): 320 Mm
Air Pressure(mpa): 0.6 MPa
Air Comsumption(m³/min): 0.6 M³/min
Die Head Heating Power(kw): 5.7 KW
Power (kw): 101.2
Weight (t): 5.5
Key Selling Points: Easy To Operate
Warranty: 1 Year
Model NO.: ABLB65I
Station: Single Station Or Double Station
Max. Product Volume: 5L
Clamping System: Toggle Type Clamping System
Suitable Material: HDPE,PP,PVC,PS,PETG,LDPE
Made In: China
Oil Pump Motor Power: 5.5kw
Head Heating Power: 5.7kw
Trademark: DAWSON
Specification: ABLB65I
Condition: New
Warranty Of Core Components: 1 Year
Application: Bottle
Applicable Industries: Manufacturing Plant
Showroom Location: None
Year: 2021
Hollow Part Volume: 0-5L
Accumulator Capacity(L): 0 L
Highlight:

Automatic Milk Bottle Blow Molding System

,

Accumulator Automatic Blow Molding System

,

Extrusion Automatic Blow Molding System
Basic Infomation
Payment & Shipping Terms
Product Description
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 0
Products Description


DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine ABLB75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 1
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 2
Machine Model
Max. Bottle size
Production forecast
ABLB65
Double Station Double Head
1L
450~480 BPH
Double Station Single Head
5L
280~320 BPH
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 3
Technical Parameters
Name
Units
ABLB65II
ABLB75II
Max.product volume
L
3.5
8
Screw diameter
MM
65
75
Screw drive power
KW
18.5
22
Output of HDPE
KG/H
75
100
Oil pump drive power
KW
7.5
7.5
Clamping force
KN
65
80
Max.size of mold
MM
320×350
400×430
Template size
MM
290×320
380×420
Mold stroke
MM
150-500
170-520
Max.die diameter
MM
170
170
Size of machine
L×W×H
3.9×2.2×2.6
4.2×2.2×2.7
Weight of machine
TON
6.5
7.5
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 4
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 5
Details Images
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 6
Professional Workshop
Our professional blow molding machine workshop...
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 7

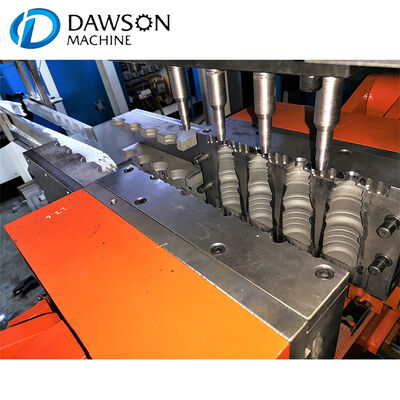

High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 8
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 9
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 10

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 11
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 12
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 13
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 14
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 15
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 16
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 17
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 18
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 19
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 20
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 21
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 22
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 23
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 24
Our Service
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 25
Accumulator Capacity 0 L Automatic HDPE PP Bottle Container Making Milk Bottle Plastic Processing Extrusion Blow Molding System 26
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
