200L 100L Chemical Drum Plastic Moulding Machine with Servo Motor

Minimum Order Quantity : 1 set Price : US $150,000-175,000 / set
Packaging Details : Standard Export Packing Delivery Time : 35-45 working days
Payment Terms : L/C, T/T Supply Ability : 20-30 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: ABLD120

Detail Information

Suitable Product Volume: 100-250 L Screw Diameter: 120mm
Delivery Time: 60days Station Number: Single
Company Attribute: Manufacturer Screw Drive Power: 75 Kw
Clamping Force: 800 Kn Mold Stroke: 600-1500mm
Trademark: Dawson Specification: ABLD120
HS Code: 8477301000 Max. Product Volume: 300L
Robot System: Available Guarantee Time: One Year
Screw L/D Ratio: 28 L/D Output Of HDPE: 240 Kg/H
Max.Size Of Mold: 1000X1500mm After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Transport Package: Film Packing Plastic Processed: PE,PET,PP,HDPE,PVC
High Light:

100 Liter blow molding equipment

,

hdpe pet pvc blow molding equipment

,

0.3mpa pp blow moulding machine

Product Description

200L 100L Chemical Drum Plastic Moulding Machine with Servo Motor




ABLD120 Accumulation Blow Molding Machine




was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.

The features of this machine:

(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.

(2)Single station single die head design, very easy to operate and maintenance.

(3)Most components of the blow moulding machine are from famous world brand.

(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

(5)Accumulation die head, MOOG parison controller equipped.

(6)Bottom blow technology make the product perfect.

(7)Auto lubricant system controlled by PLC.

Blow Molding Machine ABLD120



Max. Product volume
250liters

Output capacities

as per samples

Screw diameter

120mm

Screw L/D ratio

28 L/D

Screw drive power

75 KW

Screw heating capacity

30 KW

No.of heating zone

5 zones

Output of HDPE

240 KG/H

Oil pump drive power

45 KW

Clamping force

800 KN

Max.size of mold

1000X1500mm

Mold stroke

600-1500mm

Max.die diameter

520mm

Die heating power

12 KW

Die heating segments

5 zones

Blowing pressure

0.8mpa

Air volume

1.6 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

180 L/MIN

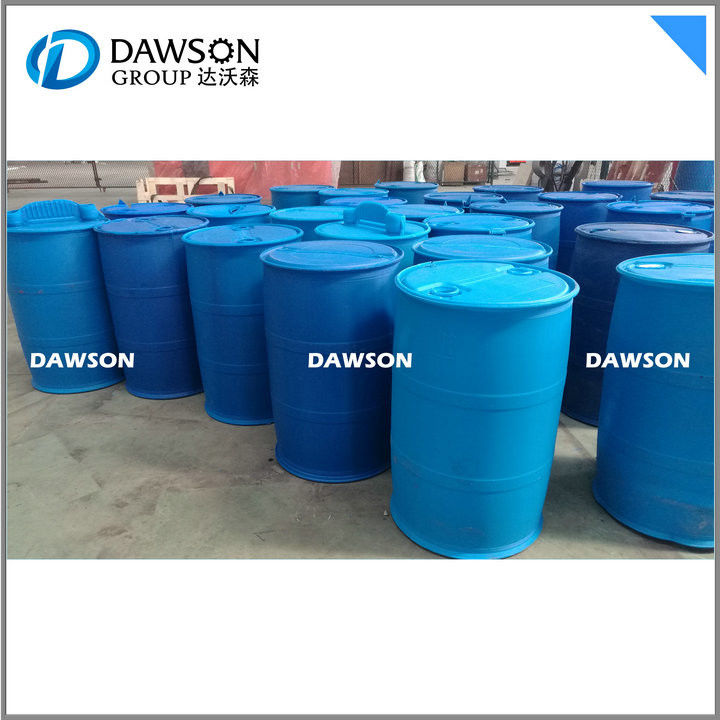

200L 100L Chemical Drum Plastic Moulding Machine with Servo Motor 0

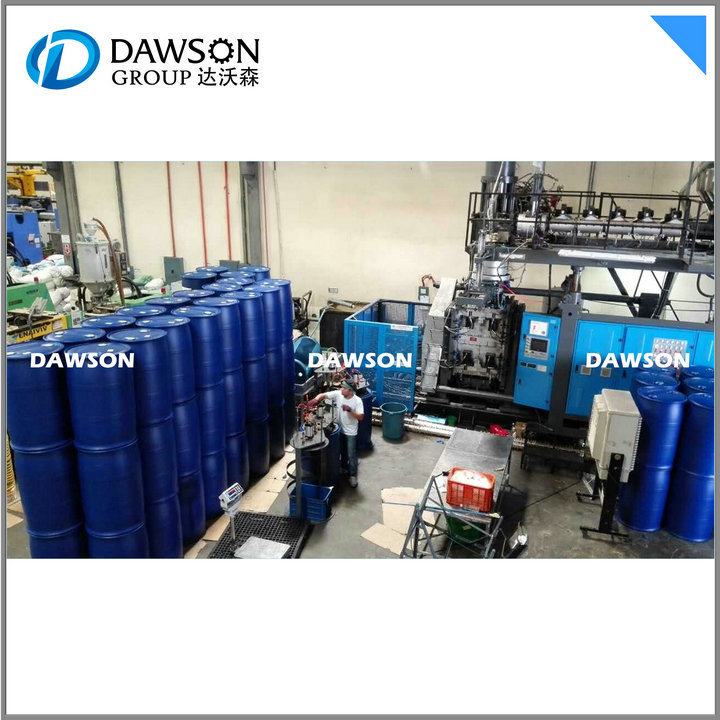

200L 100L Chemical Drum Plastic Moulding Machine with Servo Motor 1
