20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine

1 Set
MOQ
US $32,400-48,800/ Set
Price
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Core Components:: PLC, Gearbox, Motor, Pressure Vessel, Pump
Blow Moulding Type:: Jerry Can Blow Molding Machine
Automation:: Automatic
Video Outgoing-inspection:: Provided
Extruder Motor: 30kw Siemens Motor
Specification: ABLB80-25L
Application: Bottles, Jars, Jerry Cans, Gallons, Containers
Die Head: Single Head Or Double Head
Auto-Deflashing: With Auto-Deflashing
Mould: One Cavity Or Two Cavity
Sutiable: 20L 25L Bottle
Heating Zone: 4 Aluminum Heater
Clamping Force: 270 Kn
Transport Package: Film Packing
High Light:

11.3t Jerry Can Blow Molding Machine

,

20Ltr Jerry Can Blow Molding Machine

,

petg plastic blow moulding machine

Basic Infomation
Place of Origin: Jiangsu Zhangjiagang
Brand Name: Dawson
Certification: CE
Model Number: ABLB80-25L
Payment & Shipping Terms
Packaging Details: Packing in wooden cases
Delivery Time: 35-45 Work days
Payment Terms: L/C, T/T
Supply Ability: 10-20Set/month
Product Description

20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine



The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.



Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 25L
Output capacity 50~60 PCS/H
Size 4.4×3.4×3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Extrusion system
Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 200
Extruder Motor 30kw SIEMENS MOTOR
Clamping system
  Summarize High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660
Mould material S50C/Aluminium with beryllium copper
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN

Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure 0.4-0.6MPa









#blow molding machine #Extrusion Blow Molding #Injection blow molding machine #PET blow molding machine # injection molding machine # blowing mould # plastic bottle making machine #plastic bottle mould #bottle machine #plastic machinery #blow molding mould #moulding machine # moulding mould #China blow molding machine #blow molding machine made in China





Automatic Extrusion Blow Molding Machine ABLB80-25L

Product: 20L / 25L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 25L (Single die head)

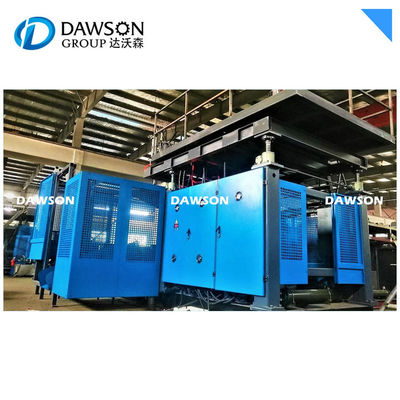

20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 0
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 1
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 2





● Co: Dawson Machinery & Mould Group Co.,Ltd
● Tel: 086-0512-58990369
● Mobile/WhatsApp/Wechat: 008615306246783

● Skype:guo.chenliang
● E-mail: jjeasy@dawson-plastic.com
jjeasyguo@hotmail.com
● Add: 18#610 BIGUIYUAN, YANGTANG ROAD, TANGQIAO TOWN, ZHANGJIAGANG CITY, JIANGSU PROVINCE, CHINA







DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Automatic Extrusion Blow Molding Machine ABLB80-25L


20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 3
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 4
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 5
20L 25L Plastic Drum Chemical Barrel Blow Molding Moulding Machine 6
