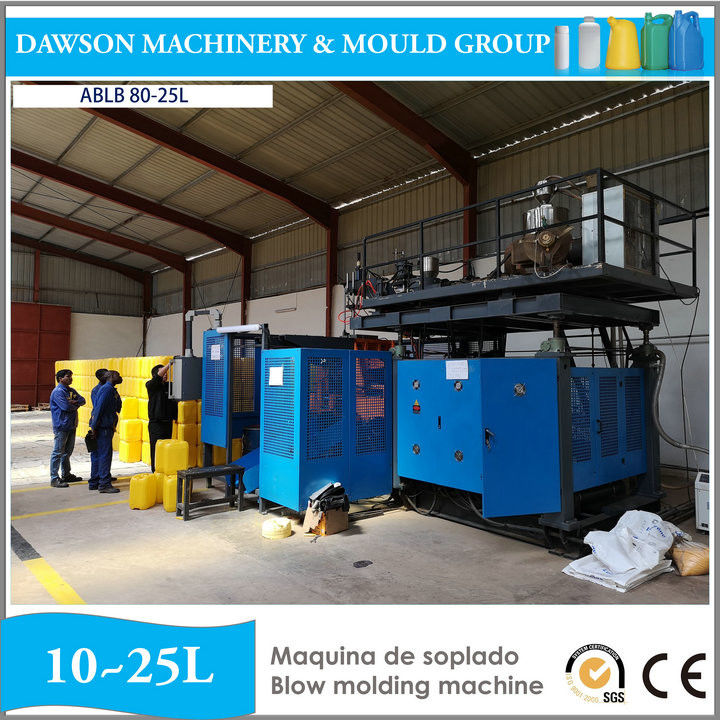

Automatic Extrusion Blow Molding Machine ABLB80-25L
| Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
| Max volume | 25L | ||
| Output capacity | 50~60 PCS/H | ||
| Size | 4.4×3.4×3.6(M) | ||
| Weight | 11.3T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | |||
| Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | ||
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw 1 | ∮80mm,L/D ratio 25,130kg/h 38CrMoALA | Cooling system available | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 10KW/H | ||
| Cooling Fan | Separate cooling system for heaters | Automatic cooling | |
| Extrusion system | |||
| Summarize | High-grade alloy steel, center feeding | ||
| Die head number | 1 | ||
| Center distance of die heads | / | ||
| Max die mouth | 200 | ||
| Extruder Motor | 30kw SIEMENS MOTOR | ||
| Clamping system | |||
| Summarize | High intension, rigidity, center mold locking, stable mould opening and advanced clamping system | ||
| Clamping force | 270 KN | ||
| Distance between platens | 450~950mm | ||
| Mould template | 680× 660 | ||
| Mould material | S50C/Aluminium with beryllium copper |
| Electricystem | |||
| Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | ||
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Parison control | MOOG 100 points controller | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | TECH-2/Mitsubishi, Chinese/English Version |
||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| TOTAL rated power | 67kw | ||
| Average power consumption | 33 kw | ||
| Inverter | Delta | ||
| Hydraulic system | |||
| Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | ||
| Oil pump motor | 11kw motor (380V/220V,50/60HZ) | ||
| Oil pump | double vane pump | ||
| Valves | Imported oil pump valves and connections YUKEN |
||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | LP 100 bar / HP 130 bar Threads of hydraulic block use of screw joint GE(ISO 1179) |
||
| Cooling system | Post cooling by cooling air and cooling water with Aluminum Mask | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.6~0.8Mpa | ||
| Air displacement | 2.2 M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 100L/min | ||
| Water pressure | 0.4-0.6MPa | ||
