2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process

$155,000/sets 1-2 sets
Price
2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process
Features Gallery Product Description Request A Quote
Features
Specifications
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place Of Origin: Jiangsu, China
Brand Name: DAWSON
Voltage: 440V/415V/380V/220V
Dimension(l*w*h): 11.5*7.5*8
Clamping Force (kN): 1800
Screw Diameter (mm): 120 Mm
Output (kg/h): 800 Kg/h
Automation: Automatic
No. Of Screw Heating Zone: 6*2
Screw Heating Power(kw): 36 KW
Extruder Motor Power(kw): 132 KW
Mold Platen Size(width)(mm): 1600 Mm
Mold Platen Size(height)(mm): 2200 Mm
Air Pressure(mpa): 1.2 MPa
Air Comsumption(m³/min): 6 M³/min
Die Head Heating Power(kw): 64 KW
Power (kw): 437
Weight (t): 72
Key Selling Points: Easy To Operate
Warranty: 1 Year
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 5000L
Cooling Water Pressure: 0.3 MPA
Water Consumption: 240 L/Min
Mould Lifespan: > 2,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese And English Operation Panel
Instructions Provided: Instructions In Chinese And English
Labor Demand: 1~2 Operetor
Samples Provided: If Required
Condition: New
Warranty Of Core Components: 1 Year
Application: Bottle, Jerry Can, Jar, Gallon
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location: None
Year: New
Hollow Part Volume: 300-5000L
Accumulator Capacity(L): 100 L
Highlight:

2200 mm Blow Molding Machine

,

Accumulation Style Blow Molding Machine

,

Plastic Pallet Crate Boxes Making Machinery
Basic Infomation
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Product Description

2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 0



Name

Units

ABLD120

ABLD150

Max.product volume

L

300

1000-5000

Screw diameter

MM

120

120×2

Screw drive power

KW

132

132×2

Screw heating capacity

KW

36

36×2

Output of HDPE

KG/H

350

620-840

Oil pump drive power

KW

37

37

Clamping force

KN

900

1800

Max.size of mold

MM

1200×1700

1600×2200

Material storage

L

24-35

40-100

Template size

MM

1200×1600

1600×2000

Mold stroke

MM

880-1700

800-2500

Max.die diameter

MM

700

1000

Die heating power

KW

36

64

Size of machine

L×W×H

7.5×3.5×5.5

11.5×7.5×8

Weight of machine

TON

36

72
Product Description



 DAWSON MACHINERY & MOULD GROUP

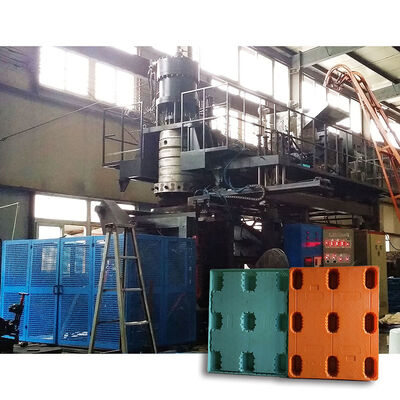

Accumulation Type Blow Molding Machine ABLD150

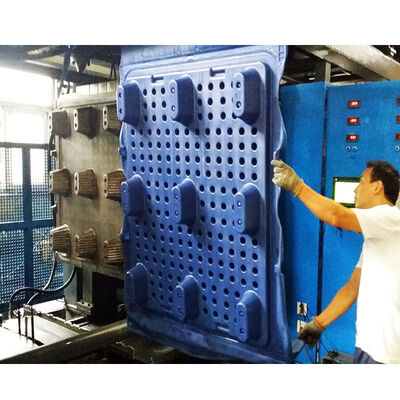

suitable for 300-5000L plastic drum and barrel, children table or desk board, barriers, floaters, pallets and indoor toys, etc.



2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 12200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 2

2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 32200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 42200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 52200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 6ers

Technical Parameters
2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 7shop

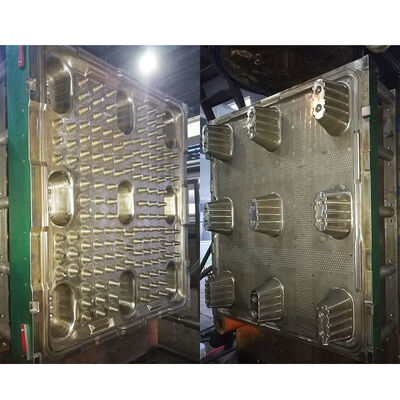

High Quality Mould

 2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 82200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 9


Company Information

DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


We have our own service team in

 Saudi Arabia, Colombia, Panama, South Africa ...





DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine,  PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 10

Customer Feedback

Dawson Machine & Mould Group



We committed to providing customers with plastic machinery and equipment production lines beyond expectations.





Customer satisfaction is our eternal pursuit...



2200 Mm Mold Platen Size Plastic Pallet Crate Boxes Making Machinery 150 Accumulation Style Blow Molding Machine Process 11Services

Our Services


FAQ



Q:  Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. )  We also provide visit online by video.


Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.


Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
