Home /Products/Plastic Blow Molding Machine/2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation

2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation

$45,800/sets 1-4 sets
Price
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation
Features Gallery Product Description Request A Quote
Features
Specifications
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place Of Origin: China
Brand Name: Dawson
Voltage: 440V/415V/380V/220V
Dimension(l*w*h): 4.9*3.68*2.
Clamping Force (kN): 44/110
Plc Brand: Siemens
Screw L/D Ratio: 24
Screw Diameter (mm): 75
Output (kg/h): 120
Automation: Automatic
No. Of Screw Heating Zone: 3
Screw Heating Power(kw): 12.5
Extruder Motor Power(kw): 30
Mold Platen Size(width)(mm): 270
Mold Platen Size(height)(mm): 620
Air Pressure(mpa): 0.8
Air Comsumption(m³/min): 15
Die Head Heating Power(kw): 7
Power (kw): 62
Weight (t): 11
Key Selling Points: Easy To Operate
Warranty: 1 Year
Blow Molding Type: Extrusion Blow Molding Machine
Parison Controller: Moog 200 Points
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Temperature Controller: Siemens Temperature Control Module
Language Settings: Chinese And English Operation Panel
Instructions Provided: Instructions In Chinese And English
Slide Table & Slide Rail: Hiwin, Taiwan, China
After-sales Service Provided: Field Installation, Commissioning And Training
Color: Purple
Proximity Switch: Omron, Japan
Highlight:

30kw Extruder Motor Power Plastic Toilet Seat Molding Machine

,

2316 Mold Material PE Toilet Seat Making Machine

,

Automatic Operation Extrusion Blow Molding Machine
Basic Infomation
Payment & Shipping Terms
Product Description

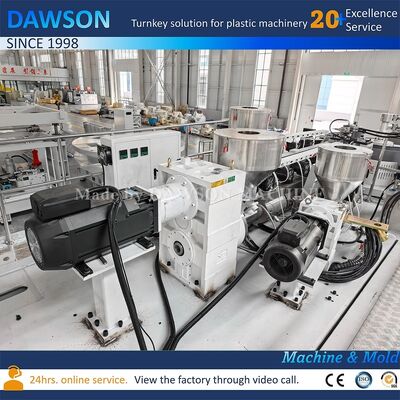

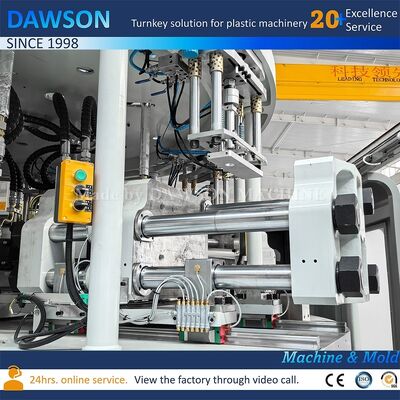

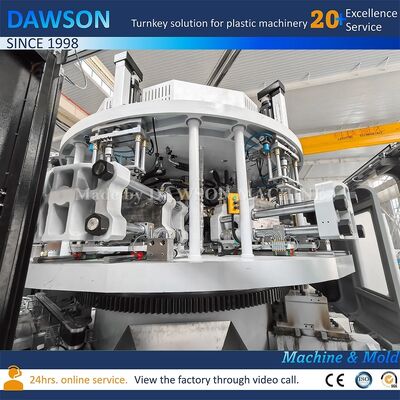

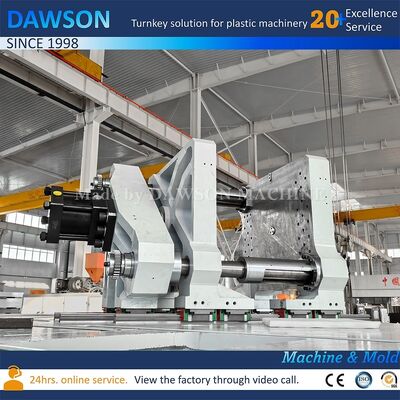

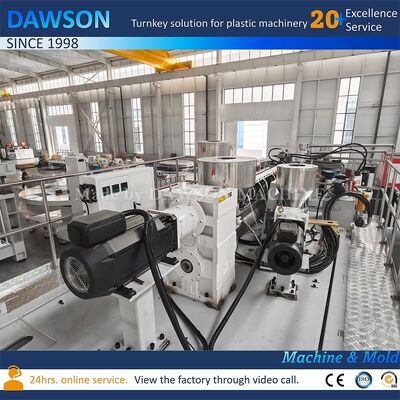

2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 0
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 1
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 2
Electronic & Hydraulic parts used in our machine
Item Name
Brand
Servo Motor And Drive
Extruder Screw Servo Motor: 78kw 2 Pcs: lnovance, China 160kw 1 Pc: lnovanceChina 18kw 1 Pc: Inovance, China Close Molds Auxiliary
Motor 6 Pcs: Siemens DeFlashing Motor 2 Pcs: Siemens Raising Up Die Head Motor 1 Pc: Siemens RotaryTable Motor 1 Pc: lnovance,China
Parison Controller
Moog 200 Points
Temperature Controller
Siemens Temperature Control Module
Slide Table & Slide Rail
Hiwin, Taiwan, China
Inverter
Inverter
Air Cylinder & Solenoid Valve
Smc
Electric Low Voltage Components
Smc
Gear Box
Guomao, China
Oil Pump, Valve
Yuken, Taiwan, China
Proximity Switch
Omron, Japan
Extruder Screw & Barrel
38 Crmoal
Heating Ring
Forged Aluminium, Fan, Stainless Steel Case


Click here to send us messages >>Send Inquiry...

2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 3
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 4
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 5
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 6
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 7
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 8
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 9
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 10
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 11

Dawson Machine After-Sales Service: Your Global Manufacturing Partner, Beyond the Sale
We don’t just sell machines—we stand by you through every stage of your production journey.

✅ On-Site Support, Anywhere in the WorldOur technical team travels globally (like the on-site service in the photo) to install, debug, and train your staff. We ensure your blow molding/injection molding equipment runs at peak efficiency, no matter where your factory is.
✅ 24/7 Expert TroubleshootingGot a problem at 3 AM? Our multilingual support team is ready to resolve technical issues via video call, remote assistance, or urgent on-site dispatch. Downtime is our enemy—your productivity is our priority. ✅ Lifetime Maintenance & Upgrade GuidanceFrom routine maintenance to upgrading molds (like the plastic containers in the image), we provide tailored solutions to keep your production line competitive. Your success is our long-term commitment. Choose Dawson: Where After-Sales Service Isn’t Just a Promise—It’s a Global Reality.Contact us today to see how our after-sales excellence can power your manufacturing growth.
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 12
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 13
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 14

DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 15
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 16
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 17


Click here to send us messages >>Send Inquiry...

Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .

Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
2316 Mold Material Plastic Toilet Seat Molding Machine with 30kw Extruder Motor Power and Automatic Operation 18
