Features

Specifications

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Core Components: PLC, Engine, Bearing, Gearbox, Gear

Plastic Processed: PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP

Place Of Origin: Jiangsu, China

Brand Name: DAWSON

Voltage: 440V/415V/380V/220V

Dimension(l*w*h): 7.5*3.5*5.5

Clamping Force (kN): 900

Screw Diameter (mm): 120

Output (kg/h): 350

Automation: Automatic

No. Of Screw Heating Zone: 6

Screw Heating Power(kw): 36

Extruder Motor Power(kw): 132

Mold Platen Size(width)(mm): 1200

Mold Platen Size(height)(mm): 1700

Air Pressure(mpa): 0.8

Air Comsumption(m³/min): 1.6

Die Head Heating Power(kw): 36

Power (kw): 241

Weight (t): 36

Key Selling Points: Long Service Life

Warranty: 1 Year

Blow Molding Type: Extrusion Blow Molding Machine

Maximum Application Size: 300L

Cooling Water Pressure: 0.6 MPA

Water Consumption: 180 L/Min

Mould Lifespan: > 1,000,000 Cycles

Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.

Language Settings: Chinese And English Operation Panel

Instructions Provided: Instructions In Chinese And English

Labor Demand: 1~2 Operetor

Samples Provided: If Required

Highlight:

Automatic Plastic Chair Blow Molding Machine

350 Kg H Plastic Chair Blow Molding Machine

Fully Automatic Extrusion Blow Molding Machine

Basic Infomation

Payment & Shipping Terms

Gallery

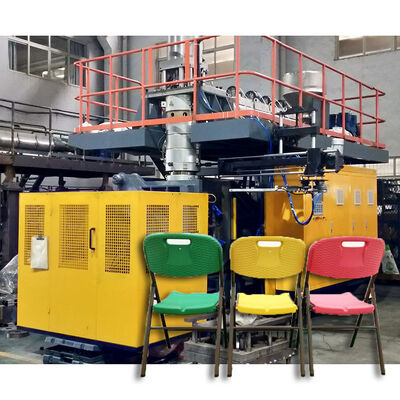

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H

Product Description

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 0

Product Description

DAWSON MACHINERY & MOULD GROUP

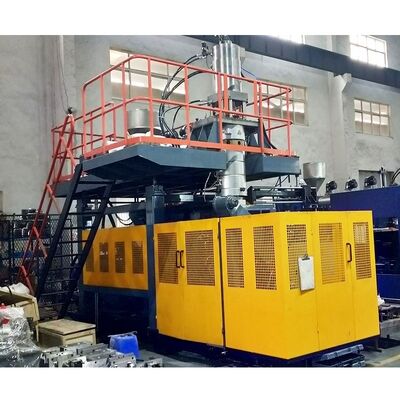

Extrusion Blow Molding Machine ABLD120

suitable for making drums, barriers, bed board... up to 120L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 1

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 2

Technical Parameters

Name	Units	ABLD100	ABLD120
Max.product volume	L	120	300
Dry cycle	PC/H	360	300
Screw diameter	MM	100	120
Screw L/D ratio	L/D	28	33
Screw drive power	KW	55	132
Screw heating capacity	KW	22	36
No.of heating zone	ZONE	5	6
Output of HDPE	KG/H	200	350
Oil pump drive power	KW	22	37
Clamping force	KN	600	900
Max.size of mold	MM	1000×1300	1200×1700
Material storage	L	14	24-35
Template size	MM	1150×1150	1200×1600
Mold stroke	MM	500-1350	880-1700
Max.die diameter	MM	450	700
Die heating power	KW	21	36
Die heating few segments	ZONE	5	6
Blowing pressure	MPA	0.8	0.8
Air volume	m³/MIN	1.6	1.6
Cooling water pressure	MPA	0.3	0.3
Water consumption	L/MIN	150	180
Size of machine	L×W×H	5.4×2.5×4.5	7.5×3.5×5.5
Weight of machine	TON	15	36

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 4

Workshop

Our professional blow molding machine workshop...

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 5

High Quality Mould

Customer Feedback

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 8

Our Services

Long Service Life Fully Automatic Plastic Chair Making Machine Plastic Bus Chair Extrusion Blow Molding Machine Output 350 Kg H 9
