Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed:
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place Of Origin:
Jiangsu, China
Brand Name:
DAWSON
Voltage:
440V/415V/380V/220V
Dimension(l*w*h):
11.5*7.5*8
Clamping Force (kN):
1800
Screw Diameter (mm):
120 Mm
Output (kg/h):
800 Kg/h
Automation:
Automatic
No. Of Screw Heating Zone:
6*2
Screw Heating Power(kw):
36 KW
Extruder Motor Power(kw):
132 KW
Mold Platen Size(width)(mm):
1600 Mm
Mold Platen Size(height)(mm):
2200 Mm
Air Pressure(mpa):
1.2 MPa
Air Comsumption(m³/min):
6 M³/min
Die Head Heating Power(kw):
64 KW
Power (kw):
437
Weight (t):
72
Key Selling Points:
Easy To Operate
Warranty:
1 Year
Blow Molding Type:

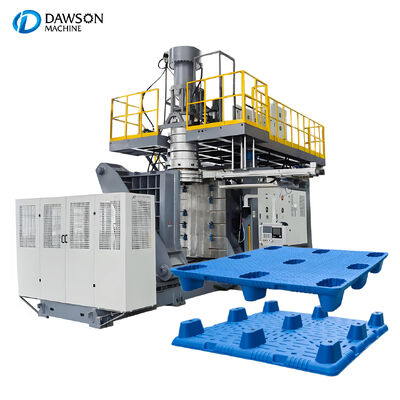

Extrusion Blow Molding Machine
Maximum Application Size:
5000L
Cooling Water Pressure:
0.3 MPA
Water Consumption:
240 L/Min
Mould Lifespan:
> 2,000,000 Cycles
Mold Material:
P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings:
Chinese And English Operation Panel
Instructions Provided:
Instructions In Chinese And English
Labor Demand:
1~2 Operetor
Samples Provided:
If Required
Condition:
New
Warranty Of Core Components:
1 Year
Application:
Bottle, Jerry Can, Jar, Gallon
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location:
None
Year:
New
Hollow Part Volume:
300-5000L
Accumulator Capacity(L):
100 L
Highlight:

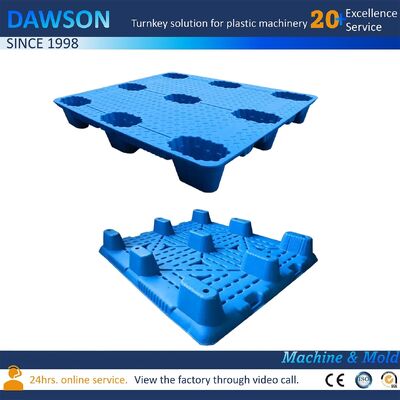

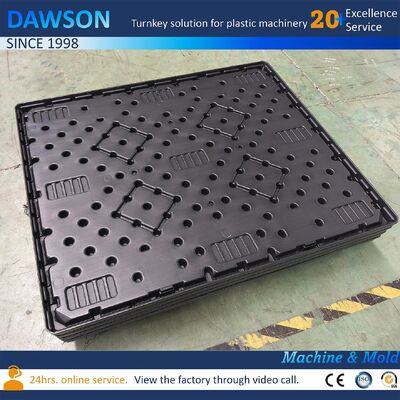

Blow Molding Plastic Pallet Making Machine
, Plastic Pallet Making Machine Manufacturing System
, Nestable Recycled Plastic Pallet Making Machine
