Customized Pallet Manufacturing Automatic Blow Moulding Machine

1 Set
MOQ
USD 150000-155000
Price
Customized Pallet Manufacturing Automatic Blow Moulding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Blow Molding Type: Extrusion Blow Molding Machine
Maximum Application Size: 5000L
Cooling Water Pressure: 0.3 MPA
Water Consumption: 240 L/Min
Mould Lifespan: > 2,000,000 Cycles
Mold Material: P20, 2316, S136H, Aluminum With Beryllium Copper.
Language Settings: Chinese And English Operation Panel
Instructions Provided: Instructions In Chinese And English
Labor Demand: 1~2 Operetor
Samples Provided: If Required
Origin: Zhangjiagang, Jiangsu, China
Transport Package: Film Packing
Guarantee Time: One Year
Export Port: Shanghai
Condition: New
Highlight:

Pallet Manufacturing Blow Moulding Machine

,

Customized Pallet Blow Moulding Machine

,

Automatic Pallet Blow Moulding Machine

Basic Infomation
Place of Origin: China
Brand Name: Dawson
Certification: CE
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Customized Pallet Manufacturing Automatic Blow Moulding Machine 0Customized Pallet Manufacturing Automatic Blow Moulding Machine 1Customized Pallet Manufacturing Automatic Blow Moulding Machine 2

Customized Pallet Manufacturing Automatic Blow Moulding Machine 3

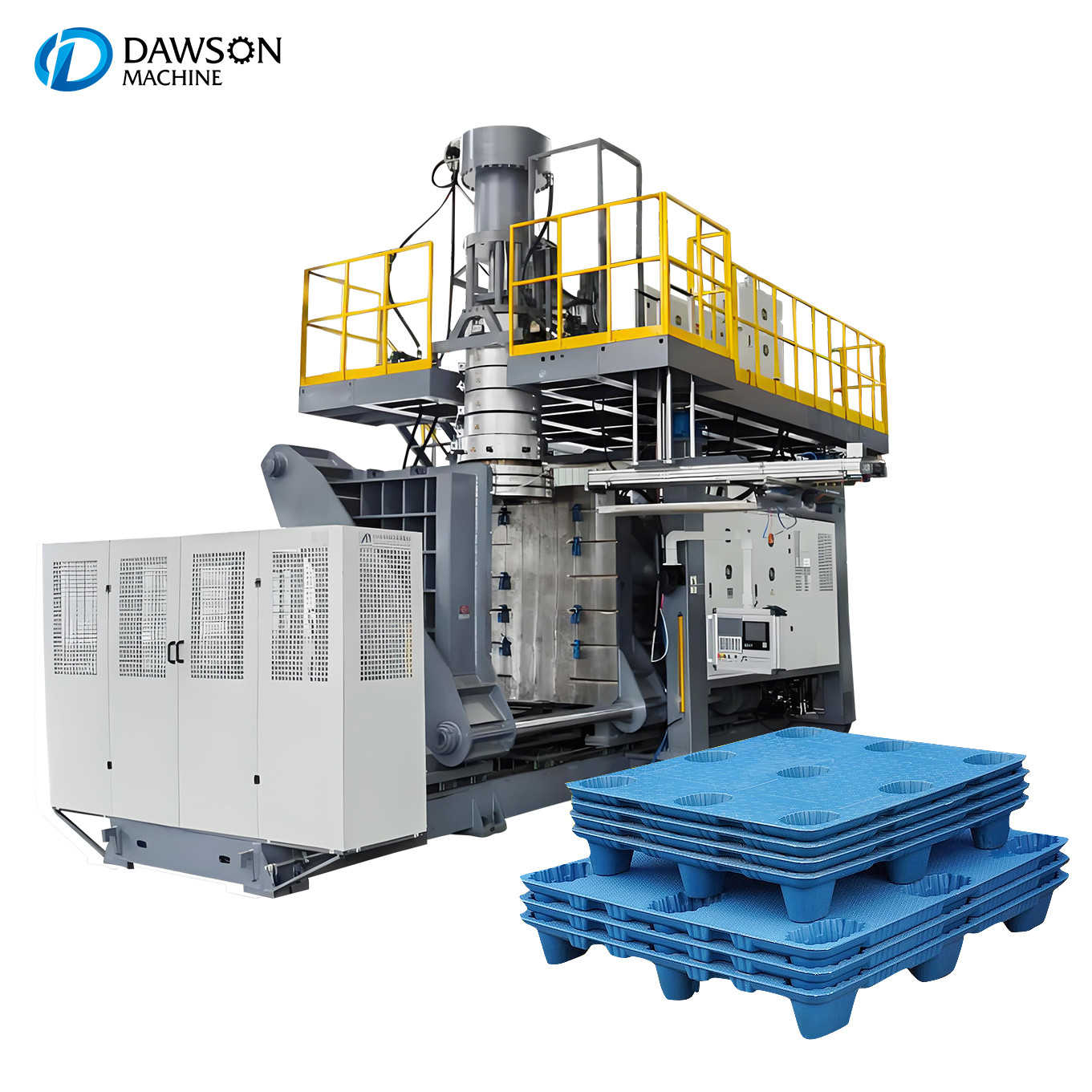

Extrusion Blow Molding Machine



    The Pallet Extrusion Blow Molding Machine represents a pinnacle of industrial engineering for producing plastic pallets with precision and efficiency. Operating on the principle of extrusion blow molding, this machine begins by melting plastic resin, which is then extruded into a tube-like parison. The parison is clamped into a mold where it undergoes controlled inflation using compressed air, shaping the plastic to conform to the mold's contours. This process ensures uniformity in pallet size, strength, and durability, crucial for meeting the rigorous demands of logistics, warehousing, and transportation sectors worldwide.



Customized Pallet Manufacturing Automatic Blow Moulding Machine 4Customized Pallet Manufacturing Automatic Blow Moulding Machine 5Customized Pallet Manufacturing Automatic Blow Moulding Machine 6Customized Pallet Manufacturing Automatic Blow Moulding Machine 7Customized Pallet Manufacturing Automatic Blow Moulding Machine 8Customized Pallet Manufacturing Automatic Blow Moulding Machine 9Customized Pallet Manufacturing Automatic Blow Moulding Machine 10Customized Pallet Manufacturing Automatic Blow Moulding Machine 11Customized Pallet Manufacturing Automatic Blow Moulding Machine 12Customized Pallet Manufacturing Automatic Blow Moulding Machine 13Customized Pallet Manufacturing Automatic Blow Moulding Machine 14Customized Pallet Manufacturing Automatic Blow Moulding Machine 15Customized Pallet Manufacturing Automatic Blow Moulding Machine 16
