Machine Model
|
Max. Bottle size
|
Production forecast
|
|
|

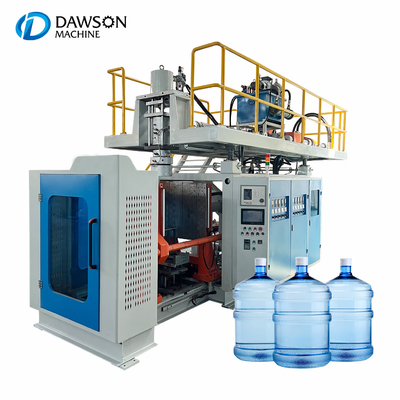

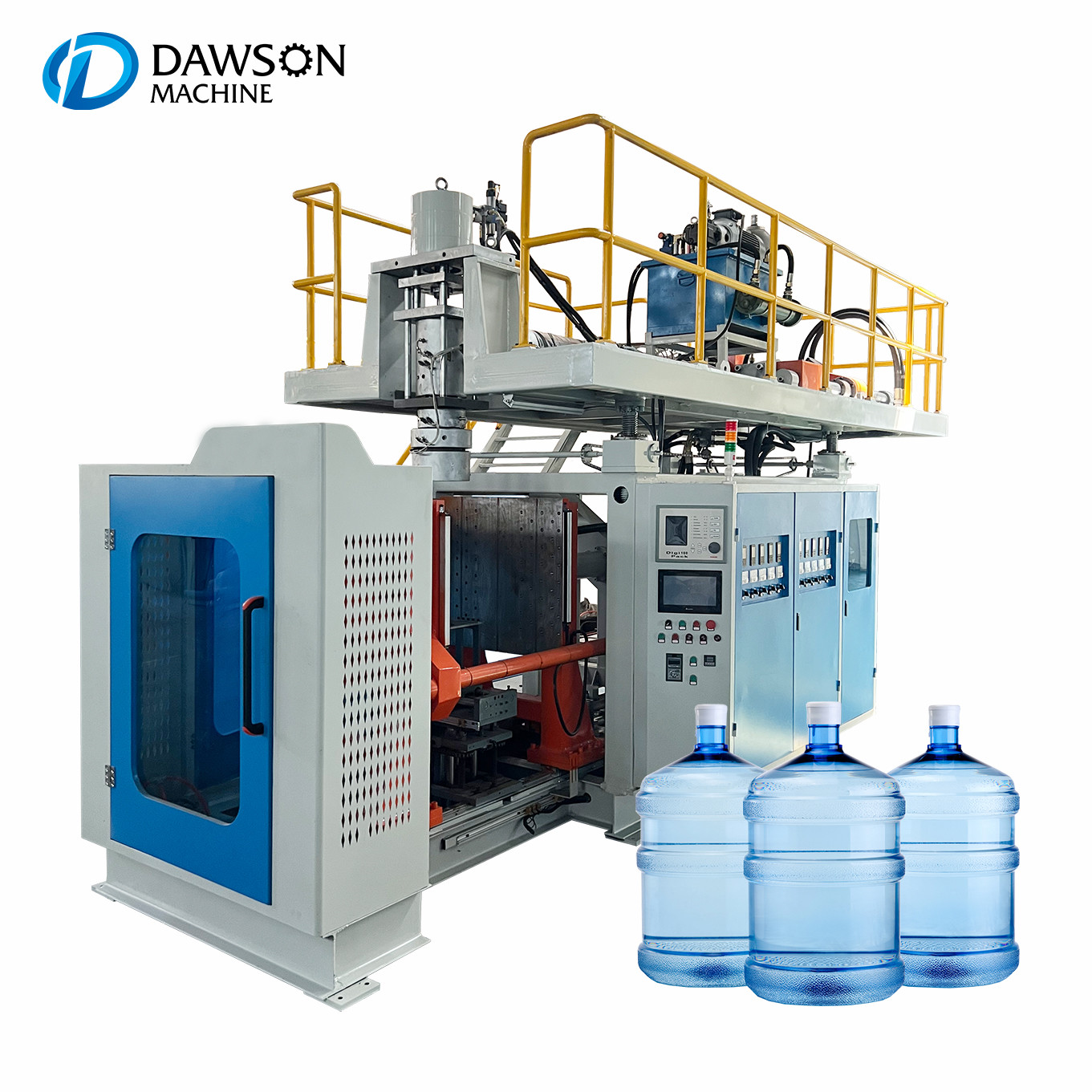

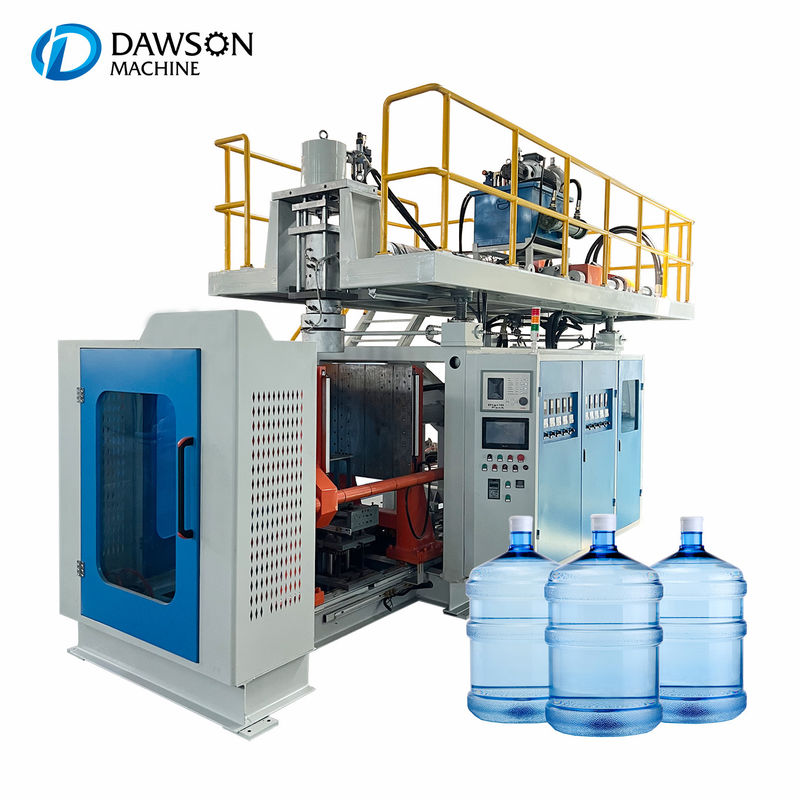

DSB82PC
|
Single station single head
|

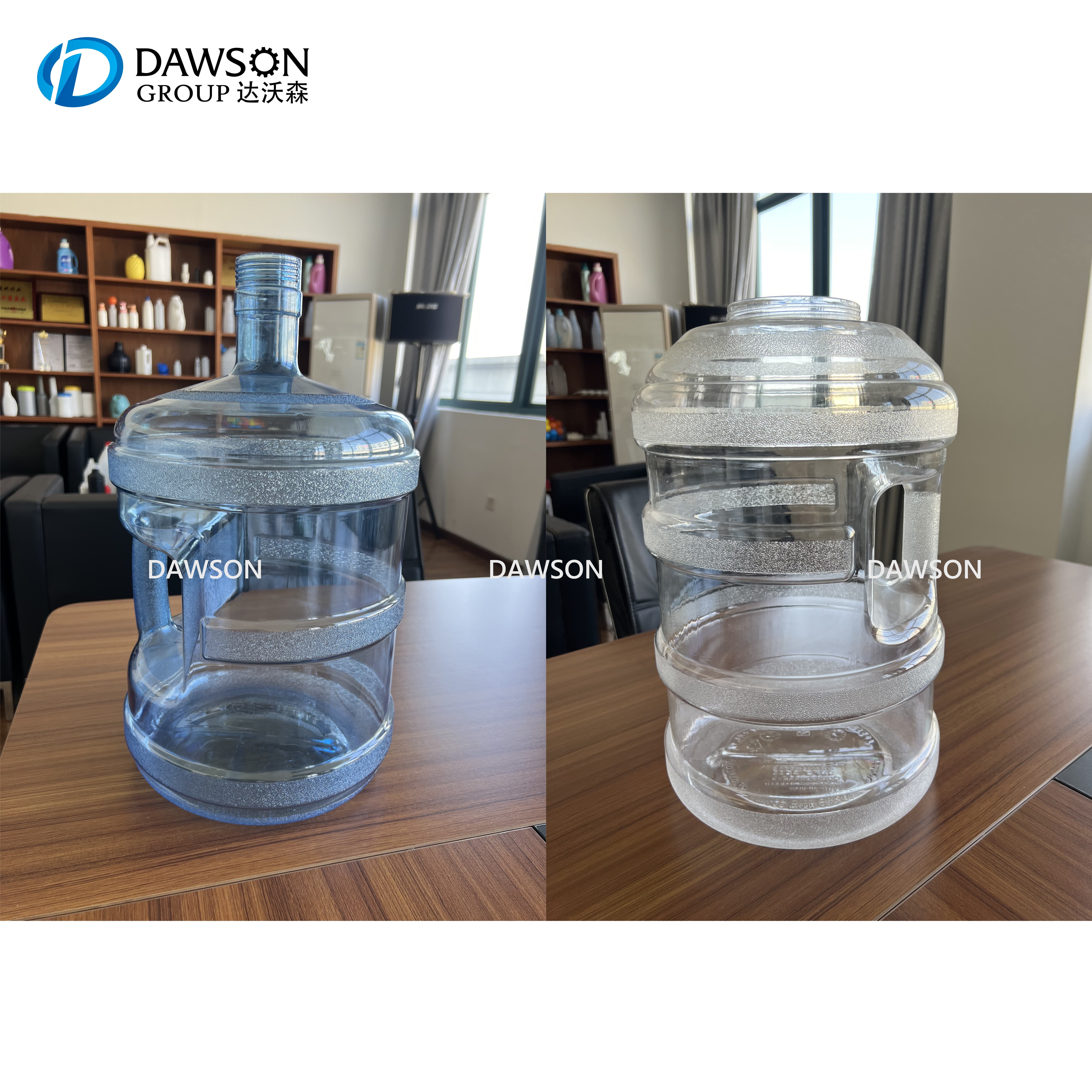

5 gallon
|
50~55 BPH
|
|
Basic parameters
|
Suitable material
|
PE.PP,PVC,PS,PETG,so on
|
|
|
Max volume
|
25L
|
||
|
Output capacity
|
50~55 pcs/h
|
||
|
Size
|
6000* 2200* 4500
|
||
|
Weight
|
11.8T
|
||
|
system
|
Specification
|
Parameters
|
Note
|
|
Plasticizion system
|
Summarize
|
High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low
temperature |
|
|
Reducer
|
Hard finishing,High intension,Low noise reducer
|
|
|
|
Screw
|
∮82mm,L/D ratio 38, 38CrMoALA
|
Cooling system available
|
|
|
Plasticization
|
90Kg/H
|
HDPE
|
|
|
Heating Zone
|
4 Aluminum Heater
|
Automatic heating
|
|
|
Heating power
|
8KW/H
|
|
|
|
Extrusion Motor
|
Three phase asynchronous motor (380V,50HZ)
|
|
|
|
Cooling Fan
|
4zone
|
Automatic cooling
|
|
|
Extrusion system
|
Summarize
|
High-grade alloy steel, center feeding
|
|
|
Die head number
|
1
|
|
|
|
Center distance of die heads
|
/
|
|
|
|
Max die mouth
|
∮130mm
|
|
|
|
Heating zone
|
4 Stainless steel heating cycle
|
|
|
|
Heating power
|
12KW
|
|
|
|
Clamping system
|
Summarize
|
High intension, rigidity, center mold locking, stable mould opening and clamping system
|
|
|
Clamping force
|
220KN
|
|
|
|
Template distance
|
250~880mm
|
|
|
|
Max mould size
|
800X800mm
|
|
|
|
Mould material
|
High grade 50# steel
|
|
|
|
Electric system
|
Summarize
|
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm,
auto counting ,auxiliary function available) |
Japanese Mitsubishi PLC system |
|
Operate interface
|
Touch screen, automatic self-diagnose alarm system
|
|
|
|
Temperature control
|
Automatic temperature control module
|
|
|
|
Movement control
|
Japanese Mitsubishi, Chinese/English
Version |
|
|
|
Electric protection
|
Ampere overload, electric short circuit self-protection function
|
|
|
|
Hydraulic system
|
Summarize
|
Multiple function hydraulic integrated block Proportional control, high efficient
|
|
|
Oil pump motor
|
Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
|
|
|
|
Oil pump
|
Imported double pump
|
|
|
|
Valves
|
Imported oil pump valves and connections
|
|
|
|
Oil pipes
|
Double layer overpressure resistant
|
|
|
|
System pressure
|
60Kg/cm²
|
|
|
|
Cooling system
|
Separate water cooling cycle, oil cooler cooling system
|
|
|
|
Pneumatic system
|
Summarize
|
Taiwan AIRTAC pneumatic system
|
|
|
Air pressure
|
0.6Mpa
|
|
|
|
Air displacement
|
0.9M3/min
|
|
|
|
Electromagnetic valve
|
Taiwan AIRTAC
|
|
|
|
Cooling system
|
Summarize
|
Separate cooling system of mould, barrel and oil system
|
|
|
Cooling medium
|
Water
|
|
|
|
Water flow
|
90L/min
|
|
|
|
Water pressure
|
0.3-0.6MPa
|
||
