Reusable HDPE Bottle Blowing Molding Machine Ocean Ball Packaging Container 100L/Min

name

Reusable HDPE Bottle Blowing Molding Machine Ocean Ball Packaging Container 100L/Min

Brand Name:	DAWSON
Model Number:	DSB80
MOQ:	1
Price:	USD 15,700 ~ 95,000 / set
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Condition:

New

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Gearbox, Gear

Voltage:

440V/415V/380V/220V

Water Flow:

100L/Min

Water Pressure:

0.4-0.6MPa

Electromagnetic Valve:

Taiwan Airtac

Application:

Bottles,Jars,Cans,Gallons,Jerry Cans

Packaging Details:

Standard Export Packing

Supply Ability:

20 set/month

Highlight:

Reusable HDPE Bottle Blowing Molding Machine

,

100L/Min Bottle Blowing Molding Machine

,

0.6 MPa Bottle Blowing Molding Machine

Product Description

Reusable HDPE Bottle Ocean Ball Packaging Container Manufacturing Blowing Molding Machine for Making Bottle

DAWSON MACHINE & MOULD GROUP

Reusable HDPE Bottle Blowing Molding Machine Ocean Ball Packaging Container 100L/Min 0

Products Description

DAWSON MACHINERY & MOULD GROUP

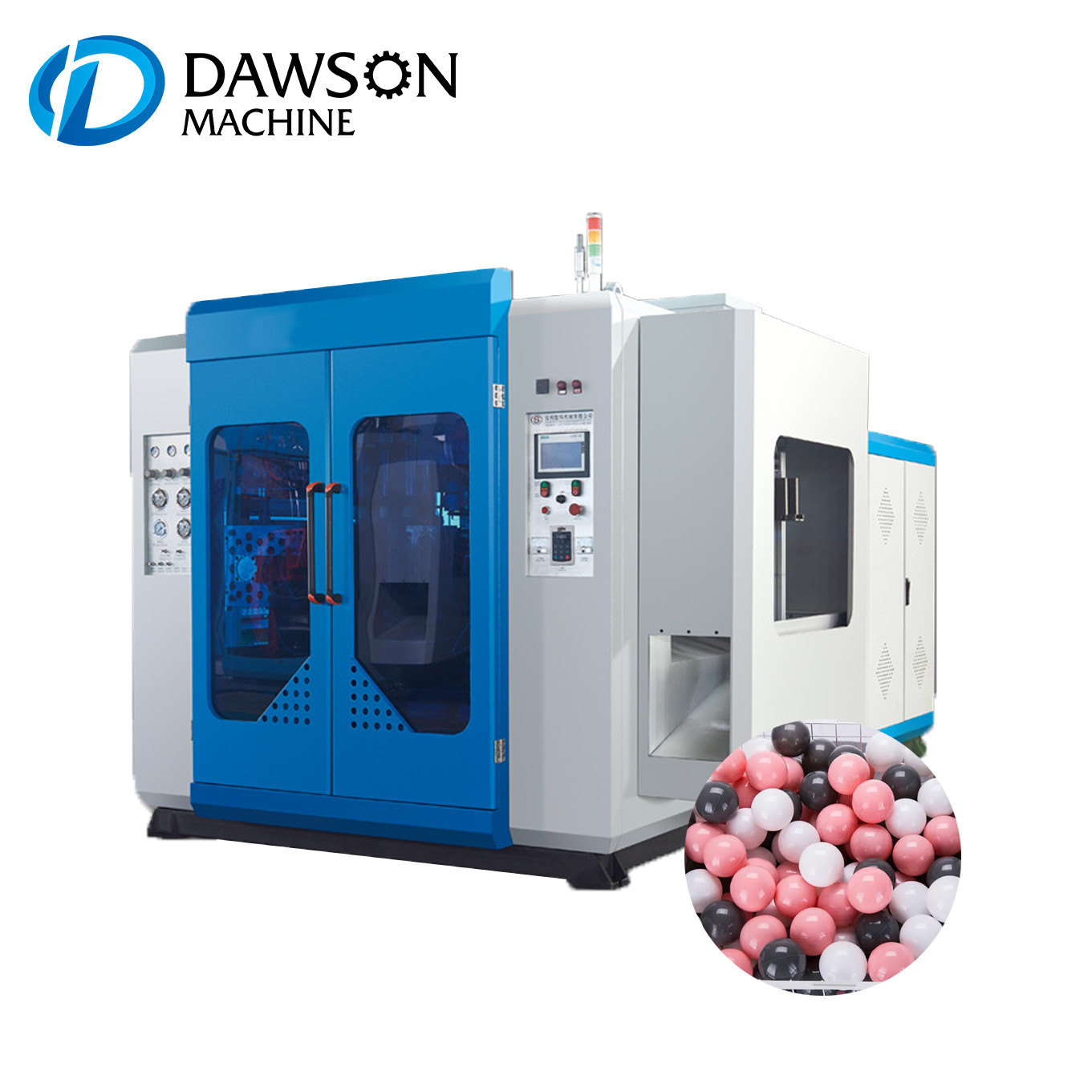

Extrusion Blow Molding Machine ABLB75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,

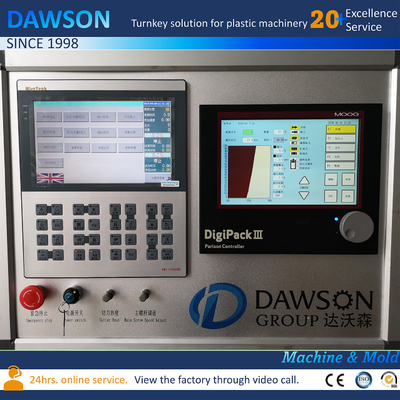

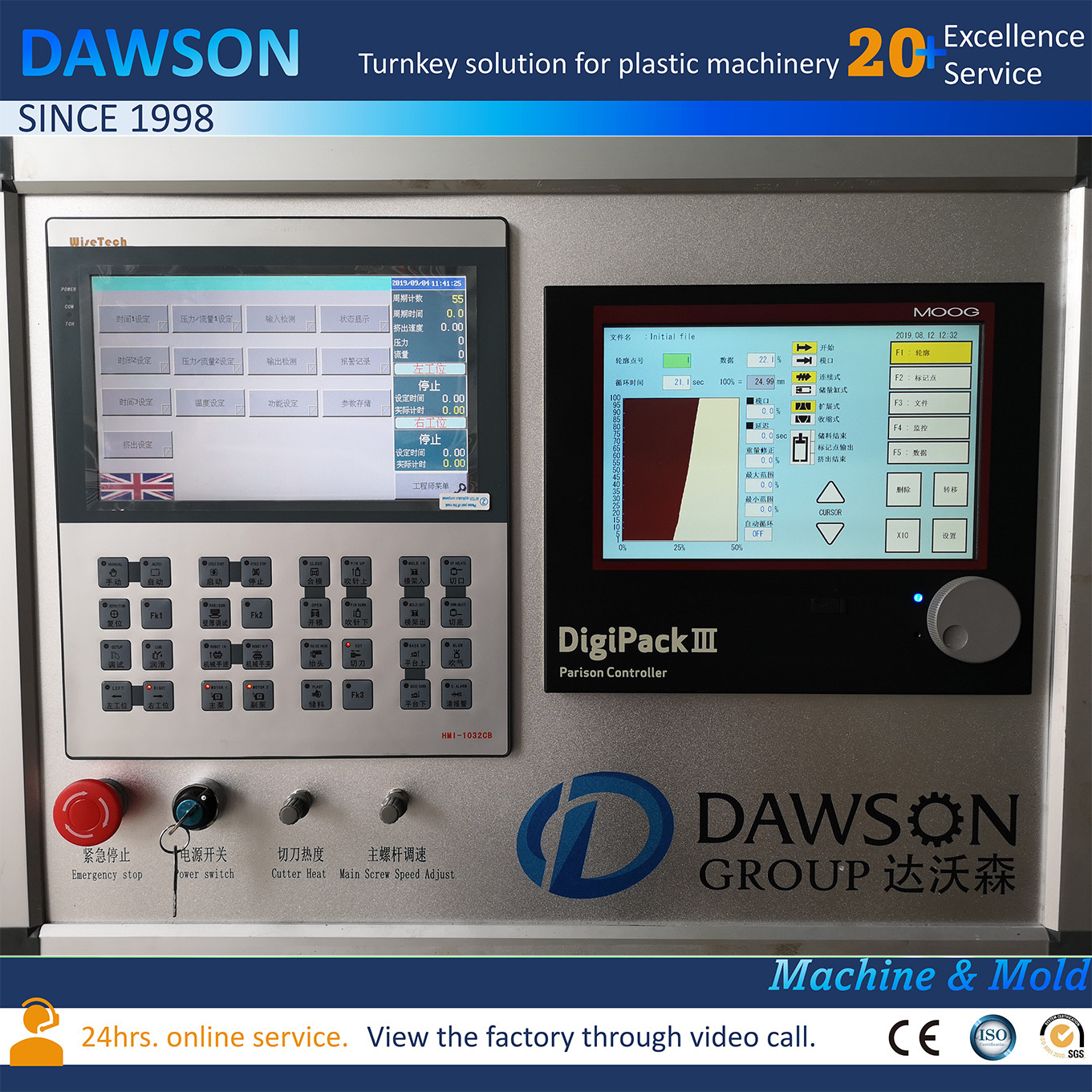

The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

			Machine Model

			Max. Ball size

			Production forecast

			ABLB65/ 75

			Double Station Double Head

			50-80 mm

			1400-1500 BPH

			Double Station 3 Head

			50-80 mm

			280~320 BPH

Technical Parameters

			Name

			Units

			ABLB65II

			ABLB75II

			Max.product volume

			L

			3.5

			8

			Screw diameter

			MM

			65

			75

			Screw drive power

			KW

			18.5

			22

			Output of HDPE

			KG/H

			75

			100

			Oil pump drive power

			KW

			7.5

			7.5

			Clamping force

			KN

			65

			80

			Max.size of mold

			MM

			320×350

			400×430

			Template size

			MM

			290×320

			380×420

			Mold stroke

			MM

			150-500

			170-520

			Max.die diameter

			MM

			170

			170

			Size of machine

			L×W×H

			3.9×2.2×2.6

			4.2×2.2×2.7

			Weight of machine

			TON

			6.5

			7.5

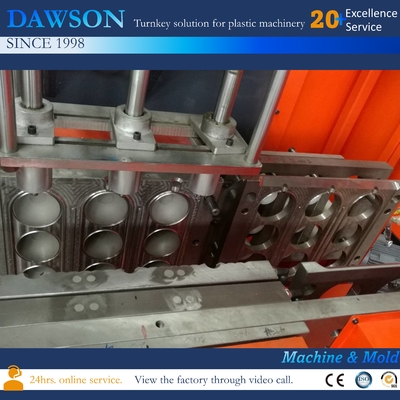

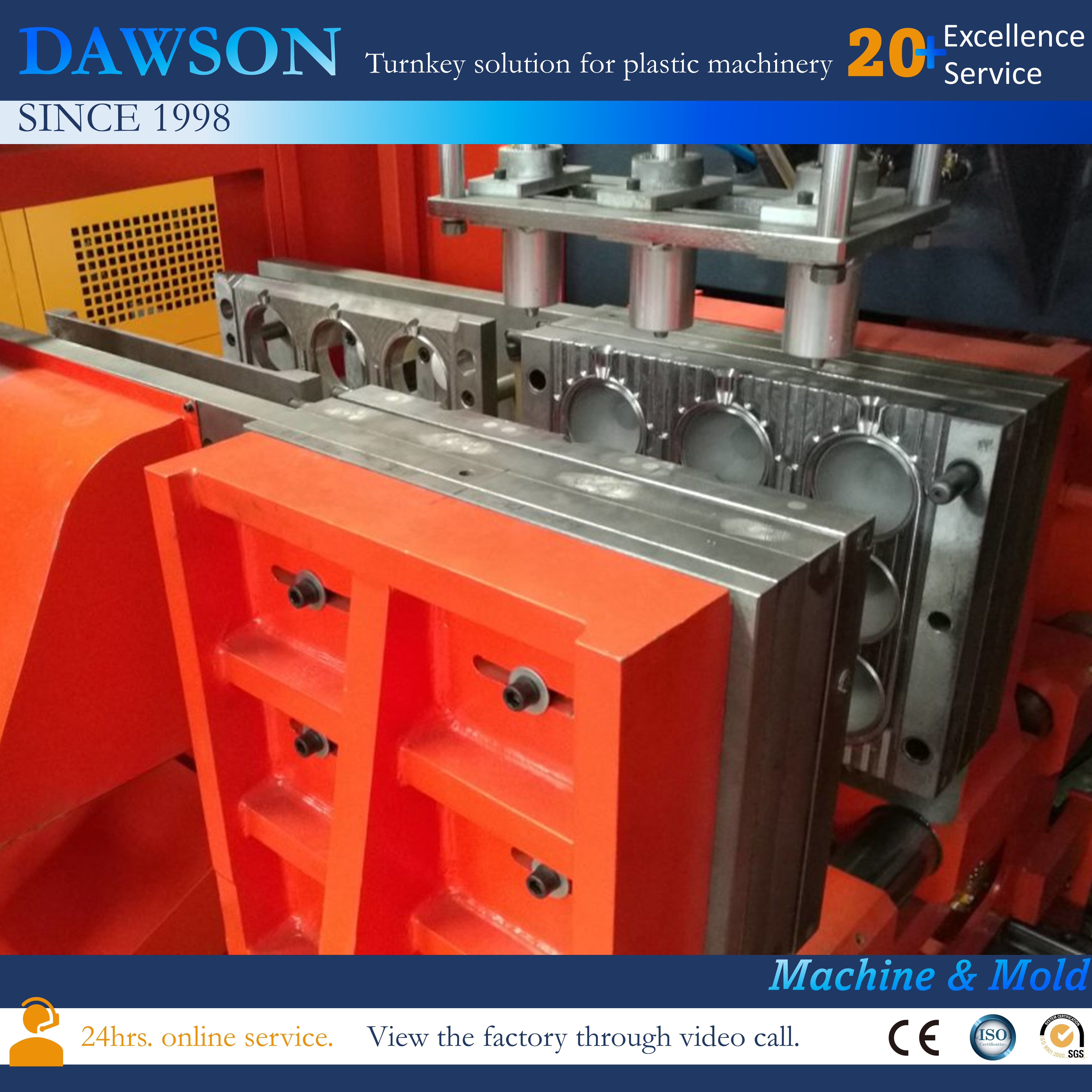

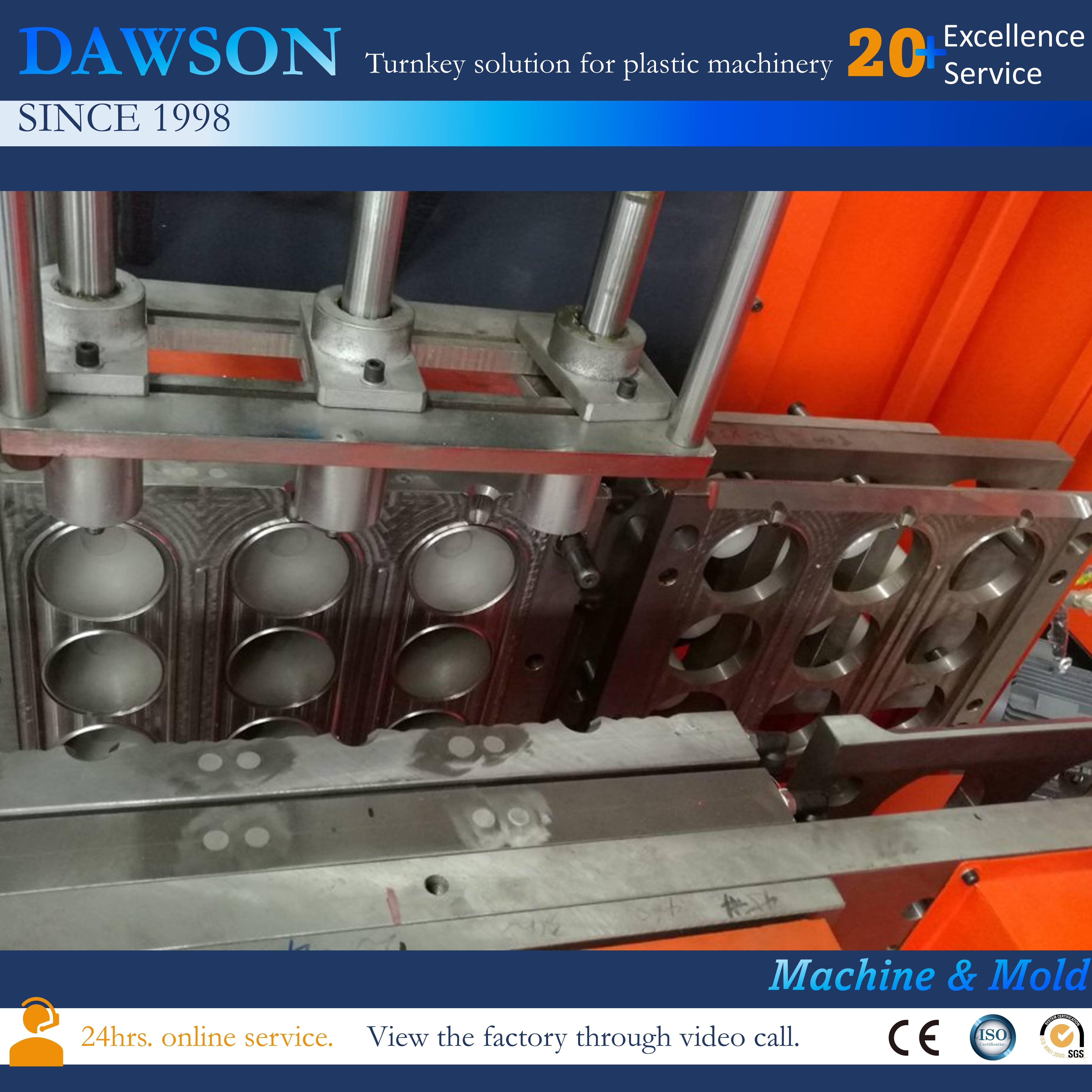

High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat

treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong

International Airport. We can

pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with

quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical

support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers

products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the

customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we

can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save

a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
