DSB80II Double Station Blow Molding Machine for Plastic Sea Ball

1 set
MOQ
US $25,000-32,000/ Set
Price
DSB80II Double Station Blow Molding Machine for Plastic Sea Ball
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: DSB80II
Station: One Station Or Two Station
Auto-Deflashing: Available
Made In: China
Material: HDPE,PP,PVC,LDPE
Max Volume: 5L
Cooling Medium: Water
Water Pressure: 0.4-0.6MPa
Trademark: DAWSON
Specification: DSB80II
HS Code: 8477301000
Application: Bottles,Jars,Cans,Gallons,Jerry Cans
Die Head: Single Head Or Double Head
Mould: One Cavity Or Two Cavity
Suitable: 0-5L
Color: Available
Electromagnetic Valve: Taiwan Airtac
Water Flow: 100L/Min
Air Pressure: 0.6~0.8MPa
Transport Package: Nude Package/as Customers Request
High Light:

DSB80II Plastic Blow Molding Machine

,

67kw Plastic Blow Molding Machine

,

Oceanball 1 litre blow moulding machine

Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Certification: CE
Model Number: DSB70II
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 35-45 working days
Payment Terms: L/C, T/T
Supply Ability: 20-30 sets / month
Product Description

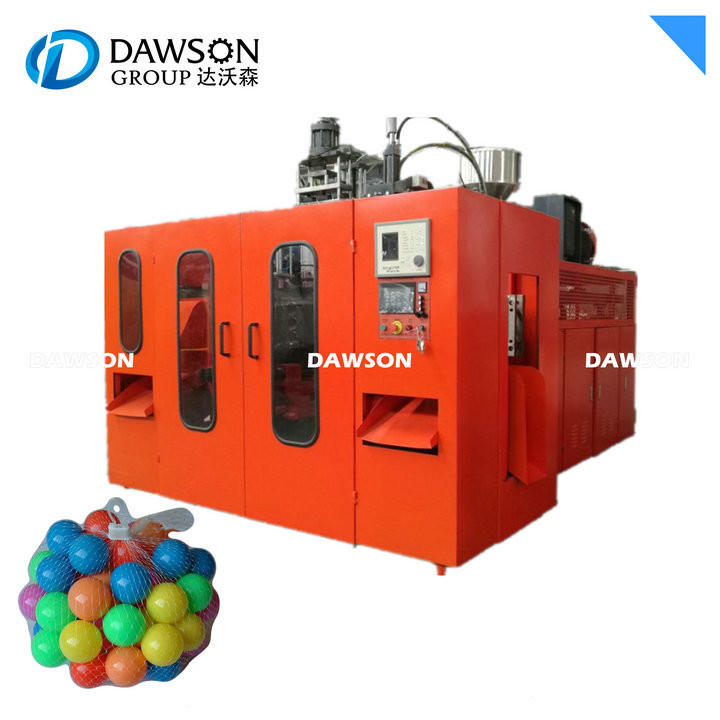

DSB80II Double Station Blow Molding Machine for Plastic Sea Ball





Automatic Extrusion Blow Molding Machine DSB80II

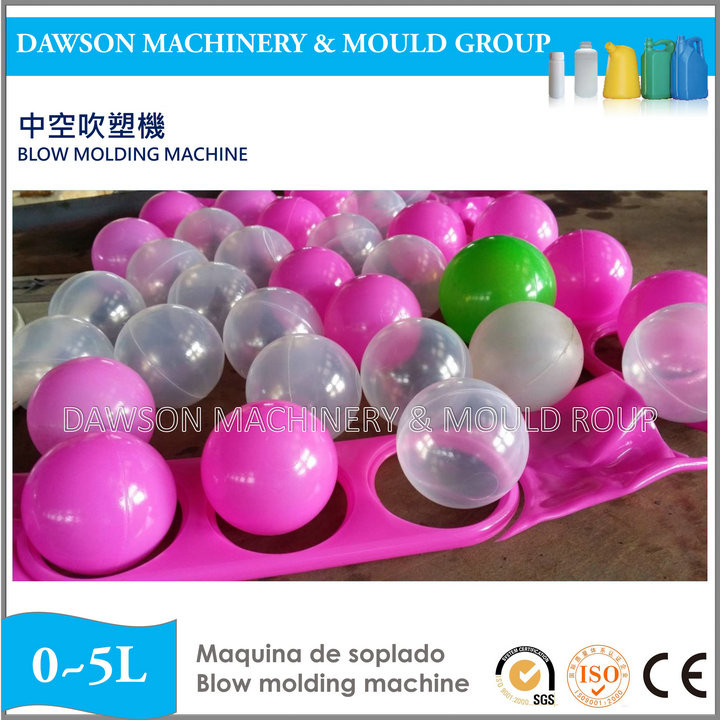

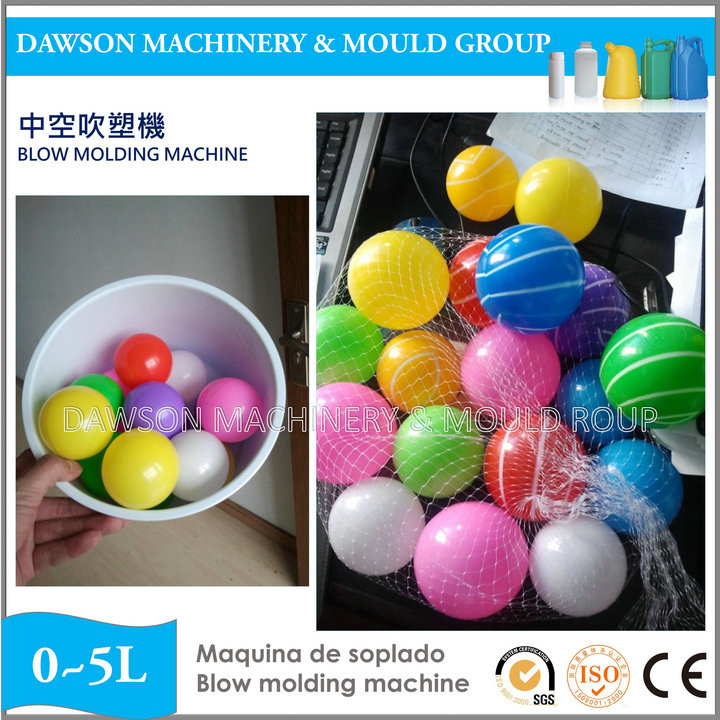

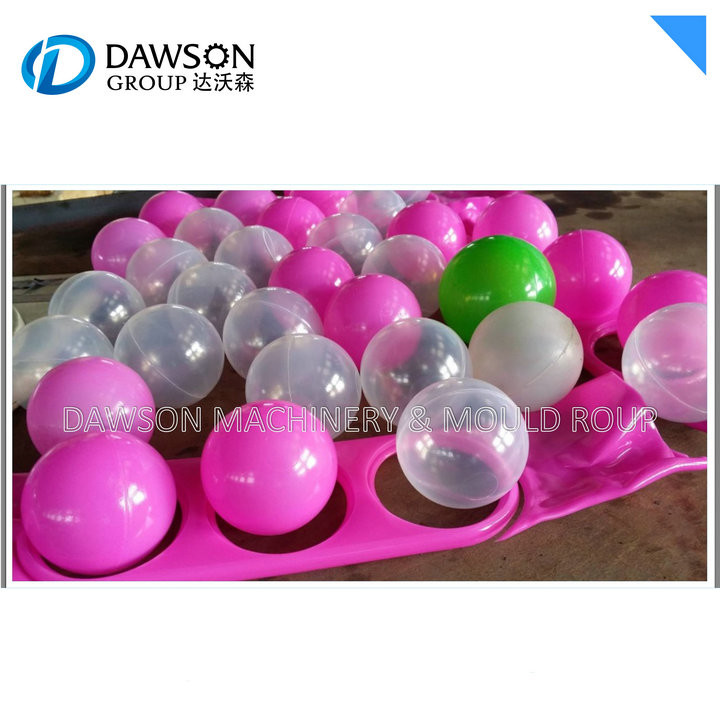

Blow Molding Machine for making 50~80mm plastic balls
Blow Molding Machine for making plastic sea ball


Machine Model DSB75
Suitable for making 0-5L milk bottles,plastic oil bottles, detergent bottles,shampoo bottles,medical bottles,plastic balls,tube, plastic cans,containers,jars,tools,toys,etc.

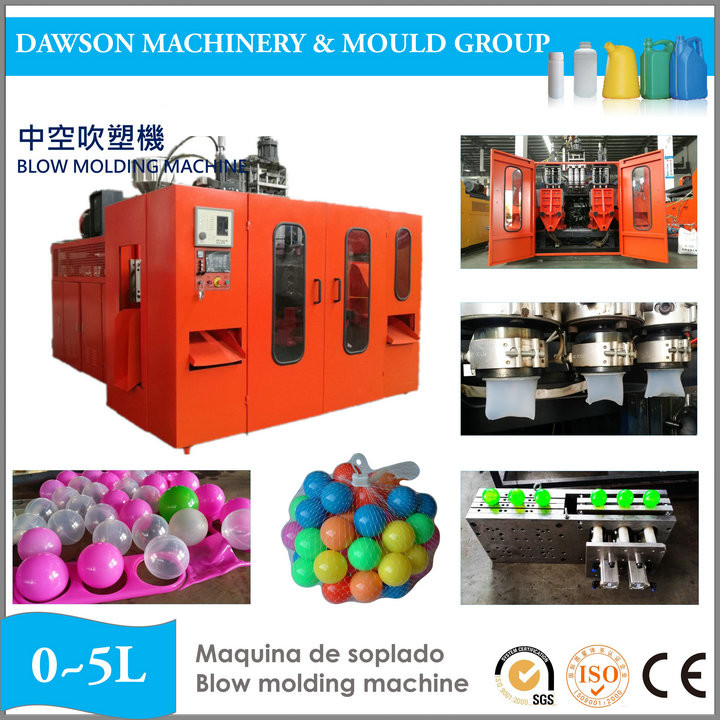

Double Station - 3 die head

Nine Cavities Mould


Mould with auto-deflashing system


Blow Molding Machine for making 50mm to 80mm Plastic Ball DSB80II






Technical Parameters

Product: Plastic bottle / ball
Power supply: 380/220v 50/60 Hz Tri-phase
Layer: Single layer
Parison control: MOOG 100 points



DAWSON MACHINERY & MOULD GROUP


***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....





Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 4 L
Output capacity as per samples
Size 4.4×3.4×3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling
Extrusion system
Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 200
Extruder Motor 30kw SIEMENS MOTOR
Clamping system
  Summarize High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660
Mould material S50C/Aluminium with beryllium copper
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN

Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure 0.4-0.6MPa



1.Hydraulic system and valves connections from Japanese Yuken industry.

2.Computer control system (PLC) Japanese Mitisubishi PLC

Used to control all electrial components and touch screen


3.Auto-deflashing Unit
Remove extra parts of products automatically
Saving your labor cost

4.Electric Cabinet

All electric components
From famous world brand to ensure the quality and stability


5.

Touch screen
Chinese and English
(or other language)
All movement operated
By touch screen
Make the process full-automatic

Machine's color can be customized according to your needs.
