Durable HDPE Automatic Blow Molding Machine Moisture Proof Plastic Carton Pallet

Minimum Order Quantity : 1 piece Price : USD 98000-180000 piece
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: ABLD120

Detail Information

Voltage: 380V/3PH/50HZ Condition: New
Dimension(l*w*h): AS ORDER Application: Bottle,water Tank,container,medical,road Barrel
After-sales Service Provided: Video Technical Support Power(w): AS ORDER
Weight: AS ORDER Warranty: 1 Year
Plastic Processed: PE,PP,HDPE,ABS Automatic: Yes
Blow Moulding Type: Stretch Blow Moulding,Extrusion Blow Moulding Color: White(can Be Customized),Customized
Use: Water Bottle,pharmaceutical Field
High Light:

Durable HDPE Automatic Blow Molding Machine

,

Moisture Proof Automatic Blow Molding Machine

,

Plastic Carton Automatic Blow Molding Machine

Product Description

Name Units ABLD120 ABLD150
Max.product volume L 300 1000-5000
Screw diameter MM 120 120×2
Screw drive power KW 132 132×2
Screw heating capacity KW 36 36×2
Output of HDPE KG/H 350 620-840
Oil pump drive power KW 37 37
Clamping force KN 900 1800
Max.size of mold MM 1200×1700 1600×2200
Material storage L 24-35 40-100
Template size MM 1200×1600 1600×2000
Mold stroke MM 880-1700 800-2500
Max.die diameter MM 700 1000
Die heating power KW 36 64
Size of machine L×W×H 7.5×3.5×5.5 11.5×7.5×8
Weight of machine TON 36 72
Product Description



DAWSON MACHINERY & MOULD GROUP

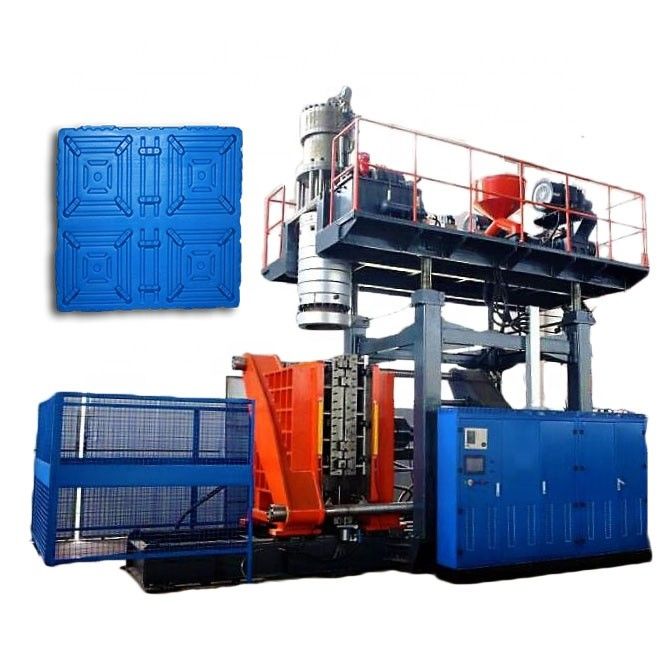

Accumulation Type Blow Molding Machine ABLD150



suitable for 300-5000L plastic drum and barrel, children table or desk board, barriers, floaters, pallets and indoor toys, etc.

Full Automatic Durable HDPE Transport Moisture Proof Plastic Carton Goods Pallet Manufacture Blow Molding Machine
