ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine

1 set
MOQ
USD 28000 per set
Price
ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Delivery Time: 55 Days
Max. Product Volume: 30L
More Application: Plastic Oil Drums, Containers, Jerry Cans, Barrels
Extrusion Type: Accumulation Type
Parison Control: Moog 100 Points
Hydraulic Motor: Servo Motor
Robot System: Avaialble
Die Head Heater: Plug Type
High Light:

Plug Type Extrusion Blow Molding Machine

,

30L Jerrycans Extrusion Blow Molding Machine

,

80mm Extrusion Blow Molding Machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: ABLB90
Payment & Shipping Terms
Payment Terms: L/C, T/T
Product Description

Blow molding machine is a kind of plastic processing machine. After the liquid plastic is sprayed out, the plastic body is attached to the mold cavity of a certain shape by using the wind force blown out by the machine, so as to make the product. This kind of machine is called blow molding machine.



DAWSON MACHINERY & MOLD GROUP


Extrusin Blow oMolding Machine ABLB80
suitable for making plastic bottle, jars, containers, jerrycans up to 25L,


the whole blow molding machine is equipped with bilingual operation panel and automatic configuration


from world famous brands to realize the advantages of simple operation and high automation
ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 0

Product Description

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 1​​
Machine Model
Max. Bottle size
Production forecast
ABLB90
Single Station Single Head
25L
48~50 BPH
​​

Technical Parameters

Automatic Extrusion Blow Molding Machine ABLB90-25L

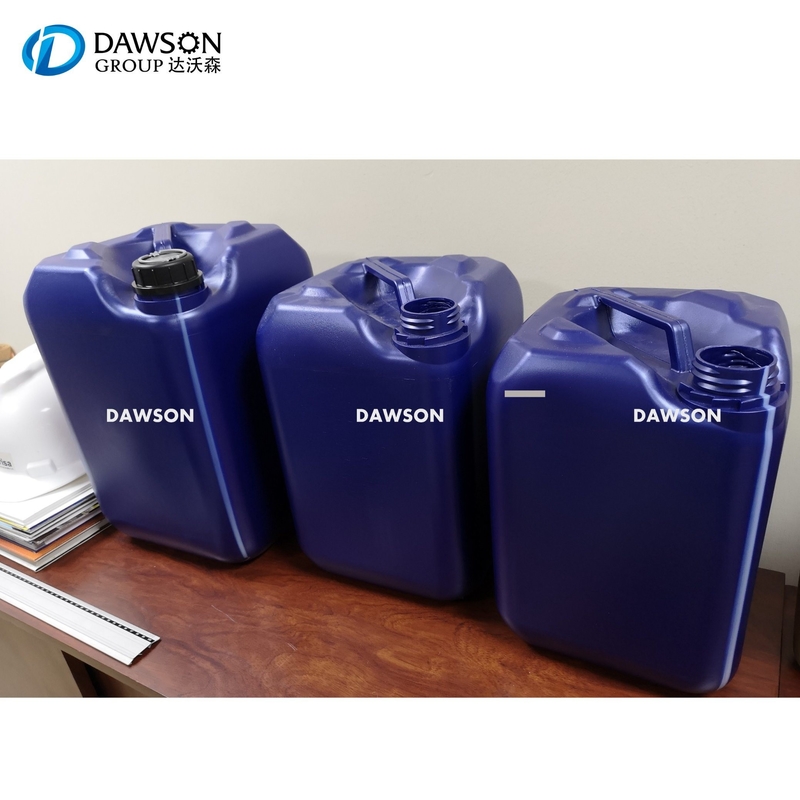

Product: 20L / 25L HDPE Jerry cans
Power supply: 380/220v 50/60 Hz Tri-phase
Output capacity:20~25L: 50~60 pcs/h (1200~1400 pcs/day)
Layer: Single layer
Lever line system: Available
Parison control: MOOG 100 points
Max volume: 25L (Single die head)

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 25L
Output capacity 50~60 PCS/H
Size 4.4*3.4*3.6(M)
Weight 11.3T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 1 80mm,L/D ratio 25,130kg/h 38CrMoALA Cooling system available
  Heating Zone 4 Aluminum Heater Automatic heating
  Heating power 10KW/H
Cooling Fan Separate cooling system for heaters Automatic cooling

​​

High Quality Mould

High Quality Blow Molding mould


In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

Company Profile

DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 2

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



Customer Photos

​​ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 3​​

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 4

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 5

Our service

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 6

ABLB80 Extrusin Blow Molding Machine 30L Jerrycans Making Machine 7

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

​​​
