Automatic Extrusion Blow Molding Machine ABLB90II-1
4 Gallon Automatic Extrusion Blow Molding Machine Full Auto Line ABLB90II

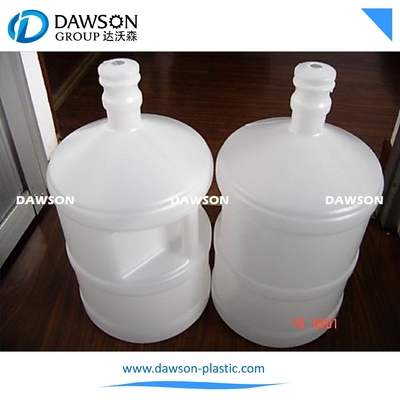

u Product: HDPE 4 gallons/ 15L water bottle
u Max volume of this machine: 20L
u Power supply: 380/220v 50/60 Hz Tri-phase
u Output capacity: 180~200 pcs/h
u Die head number: 1
u Suitable raw material: HDPE, PP
Basic parameters | Suitable material | PE.PP,PVC,PS,PETG,so on | |
Max volume | 20L | ||
Output capacity | 180~200 pcs/h | ||
Size | 4.6*3*2.4(M) | ||
Weight | 8.2T | ||
system | Specification | Parameters | Note |
Plasticizion system | Summarize | High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature | |
Reducer | Hard finishing,High intension,Low noise reducer | ||
Screw | ∮90mm,L/D ratio 25, 38CrMoALA | Cooling system available | |
Plasticization | 130Kg/H | HDPE | |
Heating Zone | 4 Aluminum Heater | Automatic heating | |
Heating power | 8KW/H | ||
Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
Cooling Fan | 4zone | Automatic cooling | |
Extrusion system | Summarize | High-grade alloy steel, center feeding | |
Die head number | 1 | ||
Center distance of die heads | / | ||
Max die mouth | ∮180mm | ||
Heating zone | 4 Stainless steel heating cycle | ||
Heating power | 5~7KW | ||
Clamping system | Summarize |
High intension, rigidity, center mold locking, stable mould opening and clamping system | |
Clamping force | 108KN | ||
Template distance | 240~660mm | ||
Max mould size | 530X550mm | ||
Mould material | High grade 50# steel | ||
Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
Operate interface | Touch screen, automatic self-diagnose alarm system | ||
Temperature control | Automatic temperature control module | ||
Movement control | Japanese Mitsubishi, Chinese/English Version |
||
Electric protection | Ampere overload, electric short circuit self-protection function | ||
Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
Oil pump motor | Three phase asynchronous motor 11kw (380V/220V,50/60HZ) | ||
Oil pump | Imported double pump | ||
Valves | Imported oil pump valves and connections | ||
Oil pipes | Double layer overpressure resistant | ||
System pressure | 60Kg/cm² | ||
Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
Air pressure | 0.6Mpa | ||
Air displacement | 0.9M3/min | ||
Electromagnetic valve | Taiwan AIRTAC | ||
Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
Cooling medium | Water | ||
Water flow | 90L/min | ||
Water pressure | 0.3-0.6MPa |
Type of Blow Molding Machine |
Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment
Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers. |
