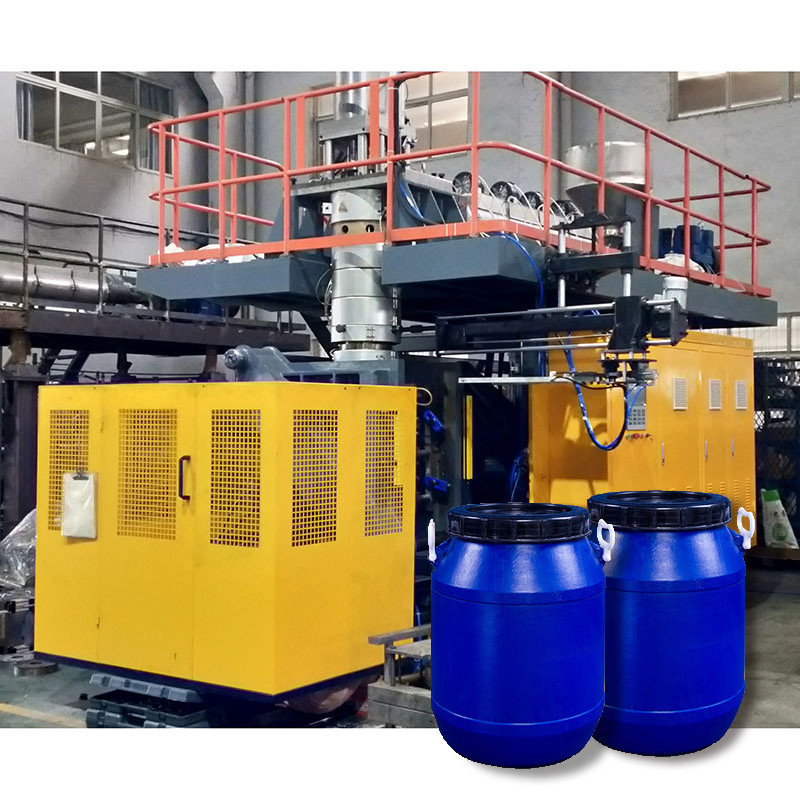

Plastic Extrusion Automatic Blow Molding Machine 60L Open Top Drum Making
Plastic Extrusion Automatic Blow Molding Machine 60L Open Top Drum Making Plastic Extrusion Automatic Blow Molding Machine 60L Open Top Drum Making Plastic Extrusion Automatic Blow Molding Machine 60L Open Top Drum Making
Contact Now

Plastic Extrusion Automatic Blow Molding Machine 60L Open Top Drum Making

Minimum Order Quantity : 1 piece Price : USD 72500-83500 piece
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: ABLD100

Detail Information
Core Components:: PLC, Engine, Bearing, Gearbox, Gear Voltage:: 440V/415V/380V/220V
Screw Heating Power(kW):: 18KW Mold Platen Size(Width)(mm):: 900 Mm
Air Comsumption(m³/min):: 1.2 M³/min Showroom Location:: NONE
Water Consumption:: 90 L/Min
High Light:

Extrusion Automatic Blow Molding Machine

,

Automatic 60L Blow Molding Machine

,

Automatic PLC Plastic Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP



Plastic Drum Making Machine ABLD90



suitable for making 10~50L ice box and cooler shell, plastic cooler box, 30~60L plastic drum and jerry can, small & middle sized boards, barriers, floaters and indoor toys. The output for 20L water cooler is 50 Pcs/hour, for 50L cooler shell is 35 Pcs/hour, for round cooler lid is 25 Pcs/hour.This model ABLD90 popular due to its wide products application range, stable working performance, easy operation and maintenance.





Machine Model Max. Bottle size Production forecast

Automatic Plastic 50L 60L Open Top Drum Making Extrusion Blow Molding Machine

ABLD90

Single Station/

1 Head

 50L 30~35 BPH





Technical Parameters
Name Units ABLD80 ABLD90
Max.product volume L 30 60
Screw diameter MM 80 90
Screw drive power KW 37 45
Screw heating capacity KW 16 18
Output of HDPE KG/H 120 150
Oil pump drive power KW 15 15
Clamping force KN 210 320
Max.size of mold MM 700×900 800×1200
Material storage L 4.4 6.6
Template size MM 750×800 900×900
Mold stroke MM 350-900 450-1100
Max.die diameter MM 280 340
Die heating power KW 15 18
Size of machine L×W×H 4.4×2.6×3.8 5.2×2.9×4.6
Weight of machine TON 11

13.5



High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material

- Necking plate use JAPAN DC53 Heat treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...Automatic Plastic 50L 60L Open Top Drum Making Extrusion Blow Molding Machine
