| Brand Name: | DAWSON |
| Model Number: | ABLD120 |
| MOQ: | 1 piece |
| Price: | USD 70000-180000 piece |
| Delivery Time: | 45-65 days |
| Payment Terms: | L/C, T/T |
DAWSON MACHINERY & MOULD GROUP

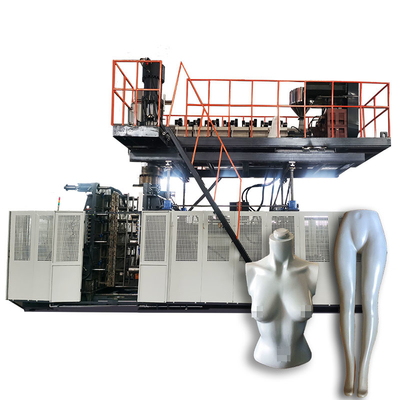

Extrusion Blow Molding Machine ABLD100
suitable for making drums, barriers, bed board... up to 120L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
| Name | Units | ABLD100 | ABLD120 |
| Max.product volume | L | 120 | 300 |
| Dry cycle | PC/H | 360 | 300 |
| Screw diameter | MM | 100 | 120 |
| Screw L/D ratio | L/D | 28 | 33 |
| Screw drive power | KW | 55 | 132 |
| Screw heating capacity | KW | 22 | 36 |
| No.of heating zone | ZONE | 5 | 6 |
| Output of HDPE | KG/H | 200 | 350 |
| Oil pump drive power | KW | 22 | 37 |
| Clamping force | KN | 600 | 900 |
| Max.size of mold | MM | 1000×1300 | 1200×1700 |
| Material storage | L | 14 | 24-35 |
| Template size | MM | 1150×1150 | 1200×1600 |
| Mold stroke | MM | 500-1350 | 880-1700 |
| Max.die diameter | MM | 450 | 700 |
| Die heating power | KW | 21 | 36 |
| Die heating few segments | ZONE | 5 | 6 |
| Blowing pressure | MPA | 0.8 | 0.8 |
| Air volume | m³/MIN | 1.6 | 1.6 |
| Cooling water pressure | MPA | 0.3 | 0.3 |
| Water consumption | L/MIN | 150 | 180 |
| Size of machine | L×W×H | 5.4×2.5×4.5 | 7.5×3.5×5.5 |
| Weight of machine | TON | 15 | 36 |
