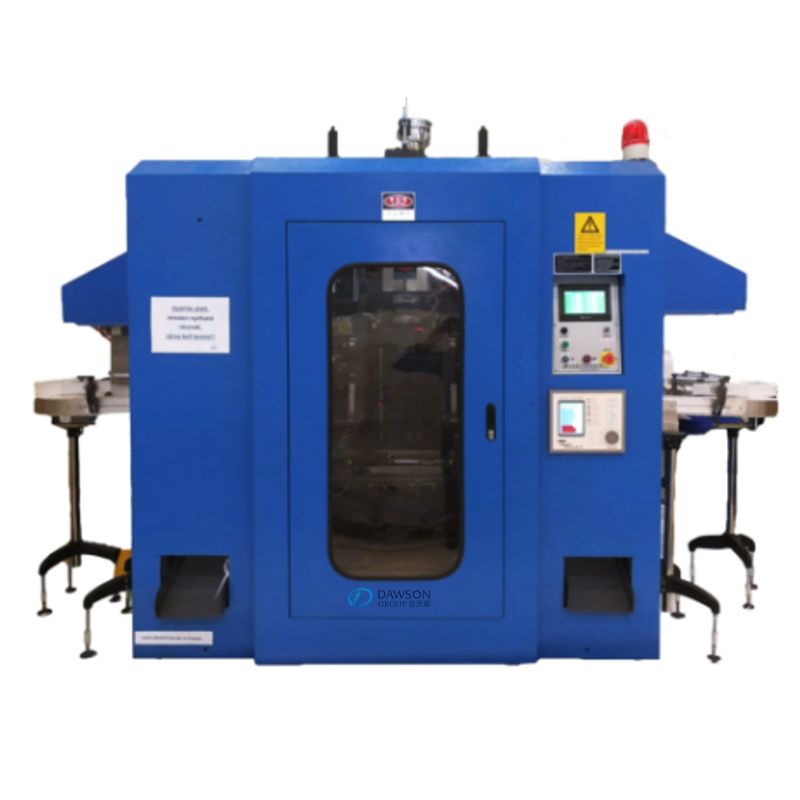

| SPECIFICATIONS | UNITS | TCY75II SERIERS | |||
| Max container capacity | L | 5 | |||
| Number of die heads | Set | 1 | |||
| Dry cycle time | Second | 5 | |||
| Machine dimension (L*W*H) | M | 3.3*2.3*2.6 | |||
| Total weight | Ton | 5.5 | |||
| CLAMPING UNIT | |||||
| Clamping force | KN | 68 | |||
| Platen opening stroke | mm | 200-500 | |||
| Platen size | mm | 360*470 | |||
| Max mould size (W*H) | mm | 390*470 | |||
| Mould thickness | mm | 210-300 | |||
| Platen moving distance | Mm | 440 | |||
| POWER | |||||
| Extrusion motor power | KW | 22 | |||
| Oil pump motor power | KW | 5.5 | |||
| Extrusion heating power | KW | 12 | |||
| Head heating power | KW | 5.7 | |||
| Cooling Fan power | KW | 0.26 | |||
| Total power | KW | 45.46 | |||
| Average power consumption | KW | 23.5 | |||
| EXTRDER UNIT | |||||
| Screw diameter | mm | 75 | |||
| Screw L/D ratio | L/D | 24 | |||
| Plasticizing capacity | Kg/hour | 90 | |||
| Number of heating zone | Zone | 3 | |||
| Extruder heating power | KW | 14.2 | |||
| Extruder driving power | KW | 22 | |||
| Cooling Fan No | 2 | ||||
| Fan power | KW | 0.26 | |||
| DIE HEAD | |||||
| Head type | Continuous extrusion head | ||||
| Head No | 1 | 2 | 3 | 4 | |
| Central distance / mm | - | 160 | 110 | 85 | |
| Max die diameter / mm | 135 | 80 | 50 | 30 | |
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
