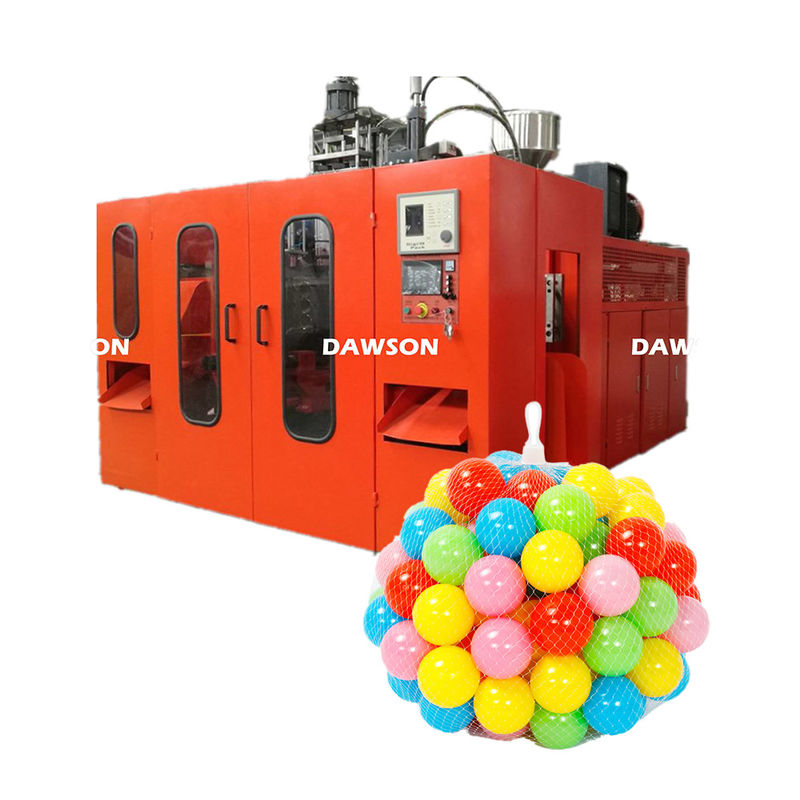

50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine

1 piece
MOQ
USD 20000-50000 piece
Price
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Station: One Station Or Two Station
Die Head: Single Head Or Double Head
Mould: One Cavity Or Two Cavity
Material: HDPE,PP,PVC,LDPE
Mould Material: S50c/S136/Aluminium With Beryllium Copper
Trademark: DAWSON
Production Capacity: As Per Samples
Origin: Zhangjiagang Jiangsu
High Light:

80mm Plastic Ball Blow Molding Machine
Basic Infomation
Place of Origin: CHINE
Brand Name: DAWSON
Certification: CE
Model Number: ABLB65/75
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description

50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 0

Products Description




DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine ABLB65/75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.
​50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 1​​

Max die mouth 200
Extruder Motor 30kw SIEMENS MOTOR
Clamping system
  Summarize
 		 High intension, rigidity, center mold locking, stable mould opening and advanced clamping system
Clamping force 270 KN
Distance between platens 450~950mm
Mould template 680× 660
Mould material S50C/Aluminium with beryllium copper
Electricystem
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)


Operate interface Touch screen, automatic self-diagnose alarm system
Parison control MOOG 100 points controller
Temperature control Automatic temperature control module
Movement control TECH-2/Mitsubishi, Chinese/English
Version
Electric protection Ampere overload, electric short circuit self-protection function
TOTAL rated power 67kw
Average power consumption 33 kw
Inverter Delta
Hydraulic system
Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor 11kw motor (380V/220V,50/60HZ)
Oil pump double vane pump
Valves Imported oil pump valves and connections
YUKEN
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)
Cooling system Post cooling by cooling air and cooling water with Aluminum Mask
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6~0.8Mpa
Air displacement 2.2 M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 100L/min
Water pressure

0.4-0.6MPa



50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 2

50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 3

Details Images
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 4
Professional Workshop
Our professional blow molding machine workshop...
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 5
High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 6
Company Profile




DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 8

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 9
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 10
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 11
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 12
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 13
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 14
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 15
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 16
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 17
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 18
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 19
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 20
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 21
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 22
Our Service
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 23
50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 24
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

50mm 60mm 70mm 80mm Plastic Ball Blow Molding Machine 25​​
