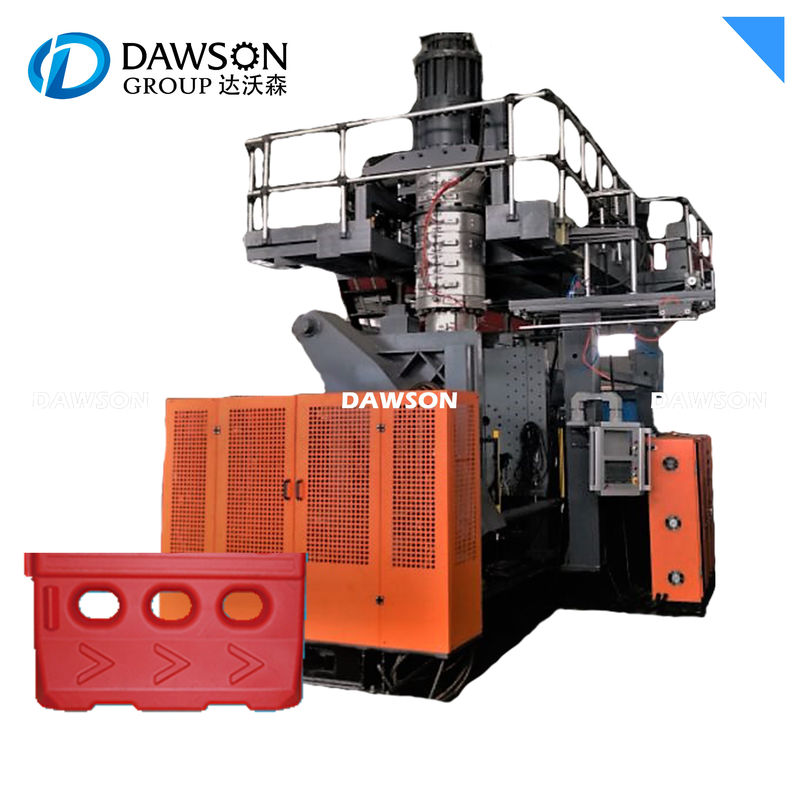

Traffic Barricade Hot Popular Making Machinery Extrusion Blow Molding Machine

Minimum Order Quantity : 1 Price : USD 15,700 ~ 95,000 / set
Packaging Details : Standard Export Packing Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 20 set/month
Place of Origin: China Brand Name: DAWSON
Certification: CE Model Number: ABLD100

Detail Information

Max. Product Volume: 120L Dry Cycle: 360 PC/H
Screw Diameter: 100 MM Screw L/D Ratio: 28 L/D
Screw Drive Power: 55 KW Screw Heating Capacity: 22 KW
No. Of Heating Zone: 5 Zone Output Of HDPE: 200 KG/H
Oil Pump Drive Power: 22 KW Clamping Force: 600 KN
Max. Size Of Mold: 1000x1300 Material Storage: 14 L
Template Size: 1150x1150 Mold Stroke: 550-1350 MM
Size Of Machine: 5.4x2.5x4.5 Weight Of Machine: 15 TON
High Light:

Traffic Barricade Extrusion Blow Molding Machine

,

CE Traffic Barricade Making Machinery

Product Description

Traffic Barricade Hot Popular Making Machinery Extrusion Blow Molding Machine

The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....









Product Description



This type of blow molding machine ABLD100 can produce plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 120L. The machine is especially designed for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available.
Single station single die head design, very easy to operate and maintenance.)Most components of the blow moulding machine are from famous world brand.Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Product Parameters




The main components of the machine. ( ABLD100 )

electronic parts

Name Trader
Micro computer control system Japanese MITSUBISHI
Temperature Controller TAIWAN YANHUA PID
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor Three phase 220V or 380V
Power Source TAIWAN MEANWELL
Transducer TAIDA FROM CHINA
hydraulic parts
Name Trader
Oil pump TAIWAN HIGH-TECH
Valve TAIWAN JINSHUN
Oil pump and connection TAIWAN JINSHUN
Sealed part HALLITE
air control system
Name Trader
Cylinder AIRTAC
Air Valve FESTO
Detailed Photos

















High quality mould




High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Company Profile



DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!



Customer Feedback







After Sales Service











FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
