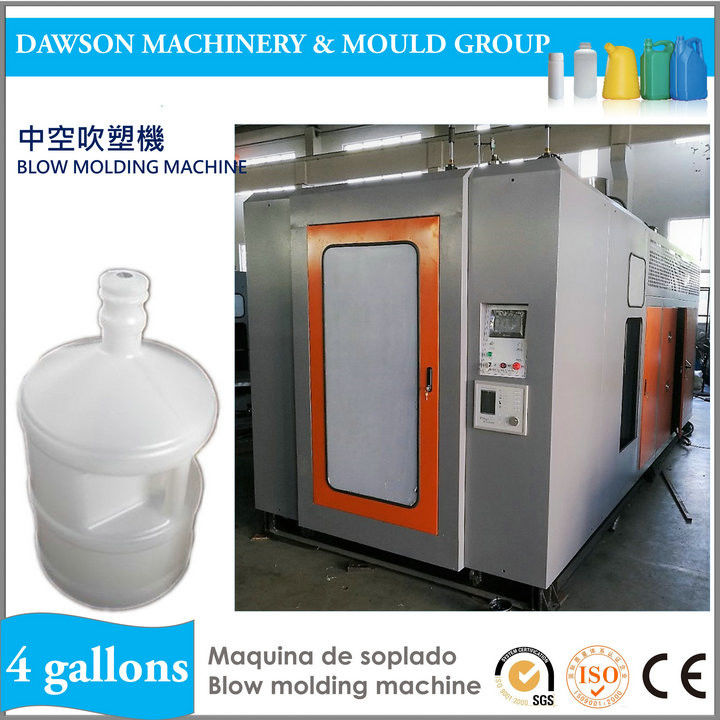

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon

Minimum Order Quantity : 1 set Price : USD 30000-50000 per set
Delivery Time : 40-65 work days Payment Terms : L/C, T/T
Place of Origin: China Brand Name: DAWSON
Certification: CE Model Number: ABLB90

Detail Information

Output Capacity: 180~200 Pcs/h Size: 4.6×3×2.4(M)
Weight: 8.2T Screw: 90MM
Max Die Mouth: 180MM Clamping Force: 108KN
Template Distance: 240~660mm Max Mould Size: 530X550mm
High Light:

4 Gallon Water Bottle Blow Molding Machine

,

Water Bottle Double Station Blow Molding Machine

Product Description

Basic Info.

Model NO.
ABLB90II
Application
Bottles, Jars, Jerry Cans, Gallons, Containers
Station
Double Station
Die Head
Single Head
Max. Product Volume
20L
Auto-Deflashing
with Auto-Deflashing
Clamping System
Toggle Type Clamping System
Mould
One Cavity
Suitable Material
HDPE,PP,PVC,PS,PETG,LDPE
Sutiable
10~20L / 4 Gallons Bottle
Made in
China
Screw
90mm,
Max Die Mouth
180mm
Clamping Force
108kn
Template Distance
240~660mm
Max Mould Size
530X550mm
Transport Package
Film Packing
Specification
ABLB90II
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
180~200 PCS/H

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Automatic Extrusion Blow Molding Machine ABLB90II-1

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 0

Product Description

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 1

Company Profile

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 2

Packaging & Shipping

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 3

Our service

Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 4Automatic Extrusion Blow Molding Machine for Plastic Pure Water Bottle 4 Gallon 5

Product Parameters

4 Gallon Automatic Extrusion Blow Molding Machine Full Auto Line ABLB90II

u Product: HDPE 4 gallons/ 15L water bottle

u Max volume of this machine: 20L

u Power supply: 380/220v 50/60 Hz Tri-phase

u Output capacity: 180~200 pcs/h

u Die head number: 1

u Suitable raw material: HDPE, PP



Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 20L
Output capacity 180~200 pcs/h
Size 4.6*3*2.4(M)
Weight 8.2T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw 90mm,L/D ratio 25, 38CrMoALA Cooling system available
Plasticization 130Kg/H HDPE
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 8KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth 180mm
Heating zone 4 Stainless steel heating cycle
Heating power 5~7KW
Clamping system Summarize

High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 108KN
Template distance 240~660mm
Max mould size 530X550mm
Mould material High grade 50# steel
Electric system Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.9M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 90L/min
Water pressure 0.3-0.6MPa
