Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Core Components:
PLC, Engine, Bearing, Gearbox, Gear
Plastic Processed:
PP, HDPE, ABS, PVC, PE, EVA, PE/PP, HDPE/PP
Place Of Origin:
China
Brand Name:
Dawson
Voltage:
440V/415V/380V/220V
Dimension(l*w*h):
4.9*3.68*2.
Clamping Force (kN):
44/110
Plc Brand:
Siemens
Screw L/D Ratio:
24
Screw Diameter (mm):
75
Output (kg/h):
120
Automation:
Automatic
No. Of Screw Heating Zone:
3
Screw Heating Power(kw):
12.5
Extruder Motor Power(kw):
30
Mold Platen Size(width)(mm):
270
Mold Platen Size(height)(mm):
620
Air Pressure(mpa):
0.8
Air Comsumption(m³/min):
15
Die Head Heating Power(kw):
7
Power (kw):
62
Weight (t):
11
Key Selling Points:
Easy To Operate
Warranty:
1 Year
Blow Molding Type:
Extrusion Blow Molding Machine
Maximum Application Size:
1L-3L

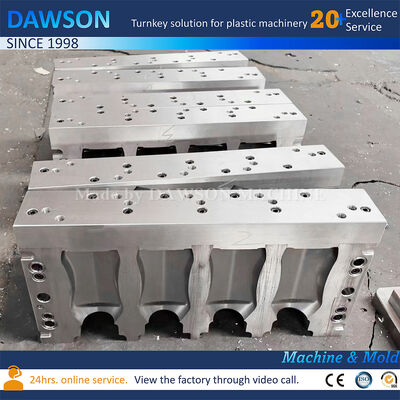

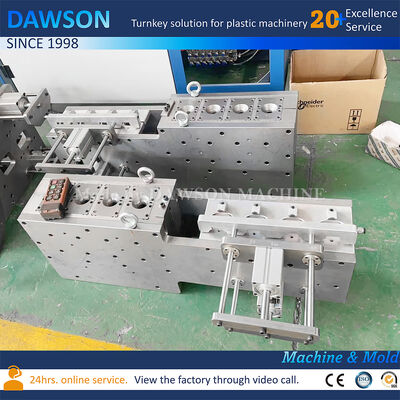

Mold Material:
P20, 2316, S136H, Aluminum With Beryllium Copper.
Mould Lifespan:
> 1,000,000 Cycles
Language Settings:
Chinese And English Operation Panel
Instructions Provided:
Instructions In Chinese And English
Labor Demand:
1~2 Operetor
After-sales Service Provided:
Field Installation, Commissioning And Training
Color:
Purple
Station:
Doule Station
Highlight:

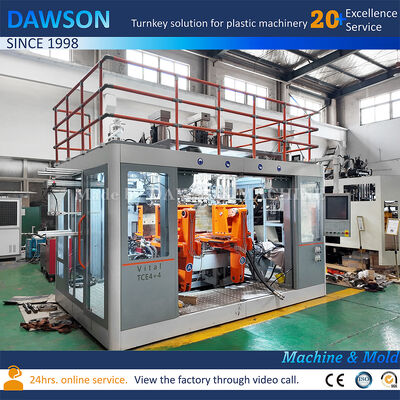

30kw HDPE extrusion blow molding machine
, double station bottle blow molding machine
, soy sauce bottle blow molding machine
