20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine

Minimum Order Quantity : 1 Price : USD 20,500 ~ 25,000 / set
Packaging Details : Standard Export Packing Delivery Time : 5-8 work days
Payment Terms : L/C, T/T Supply Ability : 20 set/month
Place of Origin: China Brand Name: DAWSON
Certification: CE Model Number: ABLB80

Detail Information

Max Product Volume: 10 L Dry Cycle: 700 PC/H
Screw Diameter: 80 MM Screw L/D Ratio: 24 L/D
Screw Drive Power: 30 KW Screw Heating Capacity: 8-9 KW
No. Of Heating Zone: 4 Zone Output Of HDPE: 110 KG/H
Oil Pump Drive Power: 11 KW Clamping Force: 100 KN
Max Size Of Mold: 400X550 MM Blowing Pressure: 0.8 MPA
Mold Stroke: 170-520 MM Cooling Water Temperature: 0.3 MPA
Size Of Machine: 4.4x2x2.7 Weight Of Machine: 7.5 Ton
High Light:

30L Jerry Can Blow Molding Machine

,

20L Plastic Drum Blow Molding Machine

Product Description

Made in China Hot Sale 20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine Manufacture

Use plug type die head, replace the traditional one, more
convenient to maintenance and replacement.

Parison Control
Traditional type has lots of wires connection on the die
head, it’s not convenient to maintenance or change die
head.

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


Automatic Extrusion Blow Molding Machine ABLB80

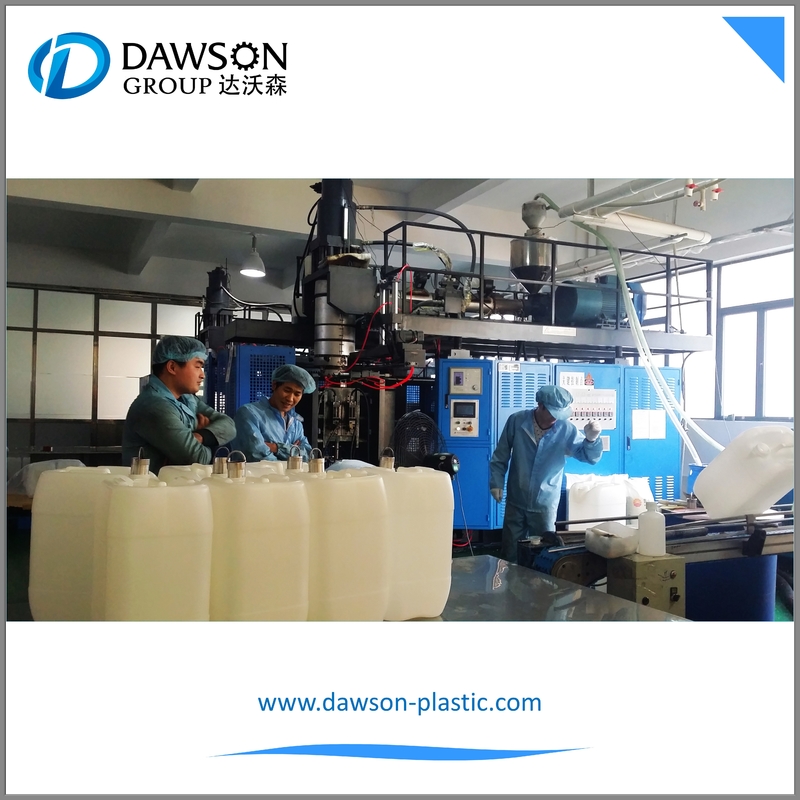

20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 0

Detailed Photos

20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 1





20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 2

Product Parameters



Extrusion blow moulding machine ABLD80

Basic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume ABLD80 max: 60L
Output capacity 40~50pcs/h
Size 4.6×2.4×3.8(M)
Weight 12T
system Specification Parameters Note
Plasticizion system Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Hard finishing,High intension,Low noise reducer
Screw ∮90mm,L/D ratio 25, 38CrMoALA Cooling system available
Plasticization 100 ~ 130Kg/H HDPE
Heating Zone 4 Aluminum Heater Automatic heating
Heating power 15~18KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ)
Cooling Fan 4zone Automatic cooling
Extrusion system Summarize High-grade alloy steel, center feeding
Die head number 1
Center distance of die heads /
Max die mouth ∮280~340mm
Heating zone 4 Stainless steel heating cycle
Heating power 5~7KW
Clamping system Summarize High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force 210~260KN
Template distance 450~1000mm
Max mould size 700X950mm
Mould material High grade 50# steel
Electric system Summarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)

Japanese Mitsubishi PLC
system
Operate interface Touch screen, automatic self-diagnose alarm system
Temperature control Automatic temperature control module
Movement control Japanese Mitsubishi, Chinese/English
Version

Electric protection Ampere overload, electric short circuit self-protection function
Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V/220V,50/60HZ)
Oil pump Imported double pump
Valves Imported oil pump valves and connections
Oil pipes Double layer overpressure resistant
System pressure 60Kg/cm²
Cooling system Separate water cooling cycle, oil cooler cooling system
Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.6Mpa
Air displacement 0.8M3/min
Electromagnetic valve Taiwan AIRTAC







High quality mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.


We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 3

Company Profile
DAWSON MACHINE & MOULD GROUP

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...



located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

Dawson provide complete solution for your plastic industry business from manufacturing, design, project solutions, overhauling and after service. we already have customers in more than 100 countries, such as America Ares, Canada, USA,Mexico, Brazil, Venezuela, Ecuador. Countries in Europe such as: UK, Turkey, Russia and the Middle East, such as: Saudi Arabia, Oman, UAE, Sudan, Nigeria, India and other countries of Asia, such as: Indonesia, The Philippines, India and more. We had successfully supplied machinery & moulds to customers such as Total, GULF,YAMAHA, SERVO, Loreal…


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!



20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 4

After Sales Service

20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 5

20L 25L 30L Jerry Can Drum Bottle Blow Molding Machine 6



FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
