20L Water Buckets / Drum Extrusion Blowing Molding Machine

Minimum Order Quantity :	1 set	Price :	45800 USD/PCS
Delivery Time :	45-60 work days	Payment Terms :	T/T, L/C

Place of Origin:	China	Brand Name:	EBM
Certification:	CE

Detail Information
Max Product Volume:	20L	Auto-Deflashing:	With Auto-Deflashing
Screw Diameter:	100mm	Screw L/D Ratio:	25L/D
Max Mold Size:	800X1000mm	Clamping Force:	440KN
Output Capacity:	40~50PCS/Day	Screw Drive Power:	45KW
Screw Heating Capacity:	20KW	Water Consumption:	100 L/Min
High Light:	20L Water Buckets Blowing Molding Machine , 20L Drum Extrusion Blowing Molding Machine

Product Description

20L Water Buckets Good Quality Shaping Extrusion Blowing Molding Machine Drum

Advantages of hollow blow molding machine in injection and blow molding:

the wall thickness of products is uniform and consistent, and post-finishing processing is not required; The product has no seaming line, and less waste edges and wastes.

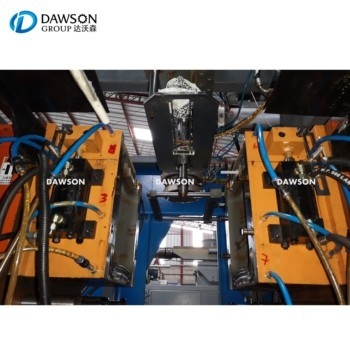

20L Water Buckets / Drum Extrusion Blowing Molding Machine 0

Company Profile

20L Water Buckets / Drum Extrusion Blowing Molding Machine 1

DAWSON MACHINERY & MOULD GROUP, located in Zhangjiagang city, our team have more than 15 years' experience in the field of plastic blow molding machines, Plastic Moulds, IBM machines, injection molding machines, PET blow molding and other accessory machines in this filed. We can provide complete solution for your plastic industry business, help you analyze the product, provide 3D drawings and layout drawings, when the machines & moulds finished we have professional inspection system for testing, make sure all works perfect before shipping, and we provide all sorts of technical support & after-sale services for our customers! We care every of our customer and we do not only sell a machine or mould, but provide complete solution & all-life support to service them! Till now We already have customers in more than 45 countries, and had successfully supplied machinery & moulds to customers such as Total, GULF, YAMAHA, MengNiu, Liby detergents, Loreal Cosmetics ^ DAWSON will be your reliable friend in China, and we will make all efforts to support you in this business,please never

hesitate to contact us for more information or inquiries!

20L Water Buckets / Drum Extrusion Blowing Molding Machine 2

20L Water Buckets / Drum Extrusion Blowing Molding Machine 3 Extrusion blow molding machine ABLD100

extruder
1	Screw diameter	100mm
2	L/D ratio	24:1
3	Screw speed	15~50r.p.m.
4	Drive motor	45Kw
5	Heating zone with cooling fan	6 zone
6	Output/Capacity	170 Kg/hr(HDPE particle)
8	Heating capacity	25.1 kw
9	Vertical adjustment of head	500mm
10	Forward/Backward adjustment of head	500mm
11	Groove feed barrel cylinder	Have IKV
12	Gear box	Hard gear decelerator
13	Ladder and safety rails	Have
Accumulator Head
1	Accumulator capacity	20L(15kgHDPE)
2	Design	First in and first out
3	Heating zone	6 zone
4	Heating capacity	25.1kw
5	Max die&pin diameter	450mm
6	Die head axis with pre-blow	Ø120mm
7	Accumulator push-out stroke measurement	Transducer Italy Gefran
8	Injection pressure	12 Mpa
9	Extruder stop	Have
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	900(W)X1400(H)
3	Length of mold	900-960mm
4	Clamping force	780KN
5	Close/Open stroke	880-1700mm
6	Mold weight	Max. 5000 kg
7	Clamping stroke measurement	Transducer Italy Gefran
8	Hydraulic valve	Taiwan Hitech
9	Number of hydraulic cylinder	1
10	High pressure	14 Mpa
11	Support parts for platen movement	Liner Guide
HYDRAULIC SYSTEM
1	Main motor/vice motor	AC15Kw/15Kw
2	Hydraulic valve	Taiwan Hitech
3	Hydraulic pump	Taiwan Hitech
4	Oil tank capacity	850L
5	Operating pressure	12 Mpa
6	Cooling water for oil	fixed
7	Control of oil level	be observed dipstick
PNEUMATIC SYSTEM
1	Operating pressure	0.8 Mpa
2	Blow pressure	0.8 Mpa
3	Needle blow circuit	High & low pressure
4	Intermittent blow	Have
5	Controlled support air for parison	Have
6	Air Valves	AIRTAC
7	Quick exhaust for support air	Have
PARISON CONTROL
1	Programmer	JAPAN MOOG
2	Servo valve	MOOG
3	Servo cylinder	Intergret of die head
4	Hydraulic pack	TAIWAN YOSHE Variable Displacement Piston Pumps
ELECTRICITY
1	Contactor	Schneider
2	Total connected load (approx.)	114kw/h
3	Average energy consumption (approx.)	42 kw/h
WATER COOLING
1	Machine water consumption	6000L/h
2	Mold water consumption	6000L/h
AIR CONSUMPTION
1	Compressed air consumption	1.2 kgf/cm2, 3000 L/min
OTHER FEATURES
1	PLC control	MITSUBISHI
2	Human machine interface	Hitech
3	Recipe storage in hard disk	Available
HEATING CONTROL
1	Power supply to heating element	Relay + Contactor	Japan Omron+Korea LG
2	Control	PLC controle
3	Type of thermocouple	K Type
4	Adjustable lower and upper limit alarm	Have
5	Cold start prevention for screw	Have
6	Alarm for thermocouple and heating element breakage	Have, heating element breakage by anperemeter
7	Pre-heating function	Have
Die-ring AND Die-pin
1	one sets of die & pin	One set according to customer
2	Test material	Buyer supply 300kg material to seller for machine testing
OPTION
1	Bottom blow (hydraulic) and sealing unit (pneumatic)	Double blow pin (including expand & up-down & parison seal)
2	Robot	Have
3	Machine Dimension	6.83.35
4	Total weight	20

20L Water Buckets / Drum Extrusion Blowing Molding Machine 4

20L Water Buckets / Drum Extrusion Blowing Molding Machine 5

20L Water Buckets / Drum Extrusion Blowing Molding Machine 6
